CAUTION: LOW VOLTAGE CUT-OFF
Do not use “NO PROTECTION” when using LiPO battery packs. Monitor the battery pack temperatures after
each run. Do not allow the battery pack temperatures to exceed 120º F/ 52º C while in use. Select a higher low
voltage cut-off setting to help reduce the temperature of the battery packs. It is OK to use “NO PROTECTION”
when using NiCD or NiMH battery packs.
ESC SETUP CONT.
ESC SETUP CONT.
Tuning
Category
Running
Mode
LiPO
Cell #
Low
Voltage
Cutoff
Timing
Forward
Only
Auto
Calculate
No
Protection
0º
2
Cells
2.8V/Cell
3.75º
3
Cells
3.0V/Cell
7.5º
4
Cells
3.2V/Cell
11.25º
5
Cells
3.4V/Cell
15º
6
Cells
18.75º 22.5º 26.25º
BEEP TONES
“B”
1 Short Beep
“BB”
2 Short Beeps
“BBB”
3 Short Beeps
“BBBB”
4 Short Beeps
“Beep-”
1 Long Beep
“Beep-B”
1 Long
1 Short Beep
“Beep-BB”
1 Long
2 Short Beeps
“Beep-BBB”
1 Long
3 Short Beeps
1
FULL THROTTLE

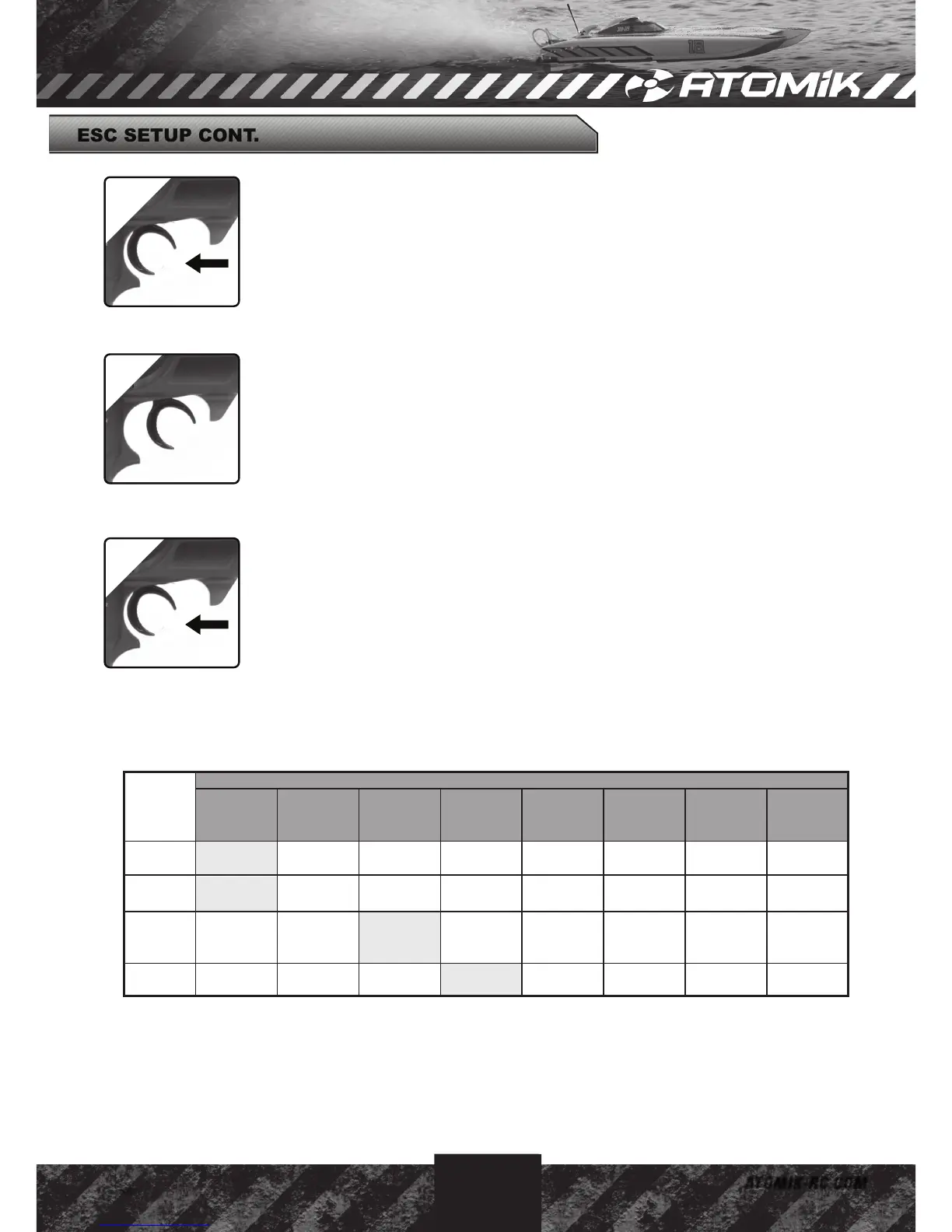

Entering Program Mode
Shaded Fields are Factory Settings (Recommended).
Selecting Category
Selecting Value for Category
If you are unsure if you have exited the program mode, you can disconnect
the battery and your programming will be saved.
2
FULL to NEUTRAL
3
FULL THROTTLE
Turn on transmitter.
Hold full throttle and connect battery.
- Continue to hold full throttle until musical tone sounds (5 second).
* CONTINUE TO HOLD FULL THROTTLE WHILE MOVING ON TO STEP 2*
Your ESC will again emit a series of beep tones. The beep tones represent a
dierent value. (Review chart below for tone diagram).
To select a value, simply wait for the desired beep tones to emit and pull full throttle.
Move the throttle to the neutral position. Within 2 seconds you will exit program mode. If you
continue to full throttle position, you will go back to step #2 and you can select a different tuning
category.
The ESC will emit a series of beep patterns. Each pattern represents a category:
To select tuning category, move throttle to neutral after desired beep pattern sounds.
*YOU ARE NOW IN THE SELECTED TUNING CATEGORY*
1. “Beep” Running Mode
2. “Beep-Beep” LiPO Cells
3. “Beep-Beep-Beep” Low Voltage Cutoff Threshold
4. “Beep-Beep-Beep-Beep” Timing
