4
ATOMIK-RC.COM
COPYRIGHT © 2013 ATOMIK RC
5
Install 8 AA Batteries
Note: For more detailed instructions, please refer to the
VR3S instruction manual that came with your model.
NOTE:
The two water-cooled Atomik™ 60A Pro Marine Brushless Speed Controls that came in your Atomik™
C1 34” RTR Electric Boat are pre-programmed from the factory for LiPO battery use. If you need to re-program
them, please follow the instructions below.
Program the ESC
Use your transmitter to program the ESC in 4 easy steps:
1) Enter program mode
2) Select programmable item
3) Choose the new value of the selected time
4) Exit
Power Switch
Steering Trim
Steering Wheel
Steering EPA
Range Test
REV Switch
Fail Safe
Throttle EPA
ST. Dual Rate
Throttle Trim
Throttle Trigger
Battery Box
AA BATTERIES
1521 AA Rechargeable NiMH
15290 AA Alkalines
CHARGER
0657 Venom Pro Charger
Curved Scissors
Needle Nosed Pliers
Side Cutters
LiPO BATTERY PACKS
RECOMMENDED BATTERY PACKS:
NOTE: Boat Requires 2 packs.
DO NOT MIX PACK TYPES or CAPACITIES.
20C 3S 4000mAh 11.1V LiPO - UNI
20C 3S 5400mAh 11.1V LiPO - UNI
20C 3S 5000mAh 11.1V LiPO - UNI
35C 3S 5000mAh 11.1V LiPO - UNI
50C 3S 5000mAh 11.1V LiPO - UNI
x8
For Radio
1.5mm
2.0mm
2.5mm
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Hobby Knife #11 Blade
Screwdriver
No.2
No.1
Nut Driver
5.5mm
Ruler Straight Edge
Hex Driver

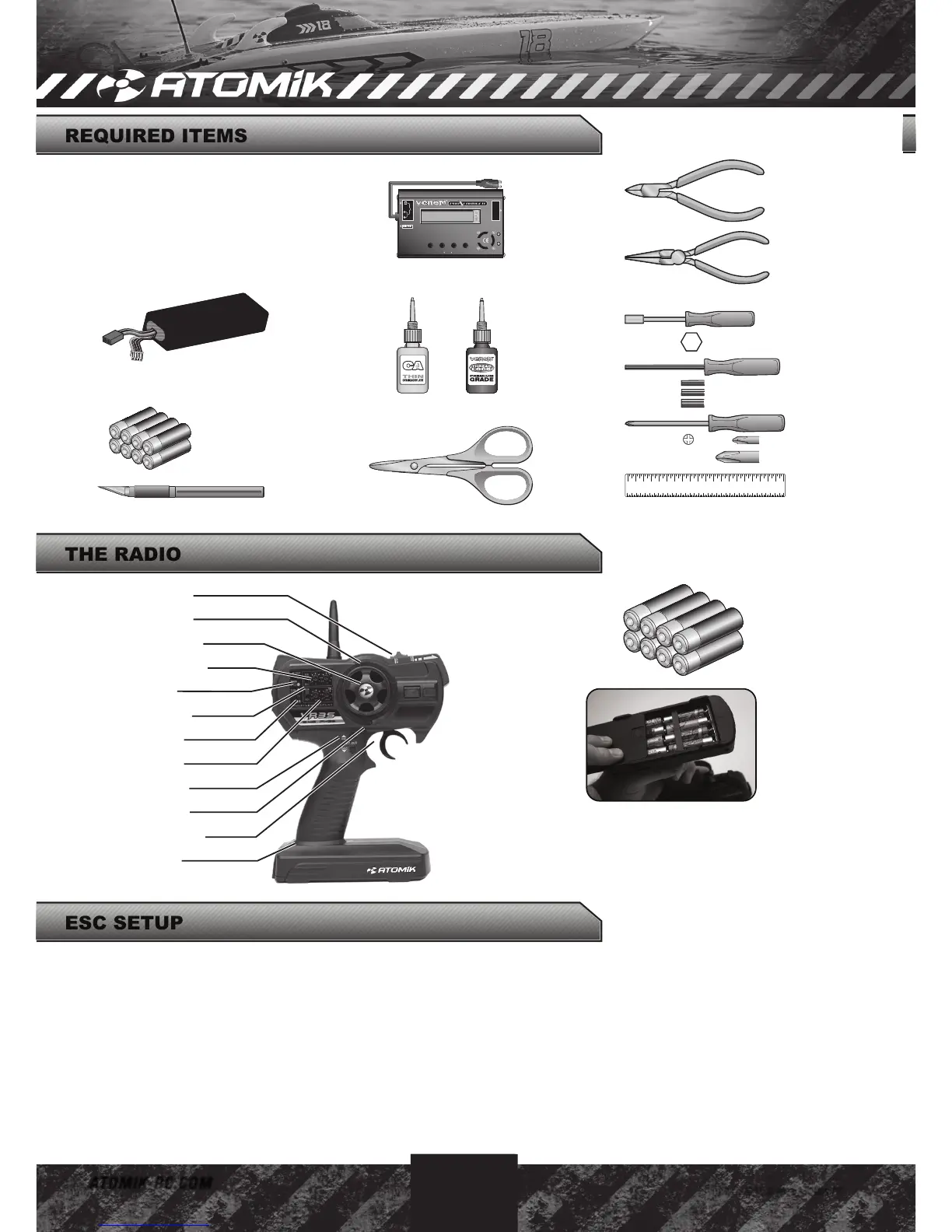

REQUIRED ITEMS
SPECIFICATIONS
• Li-lon/Polymer Battery/LIFE Battery
• NiMH/NiCD Battery
• Lead Acid (PB)
• Charge/Discharge Cycle
• Charging Rate: 0.1a-5.0a;
• Battery Memory: 10 models
• AC-DC Adopter
1-6 Series
1-15 Cells
2-20v
1-5 Cycles
Discharge Rate: 0.1a-1a
USB PC Link
Multifunctional Battery Connector
MAIN MENU
STOP ENTER
DECREASE INCREASE START
STATUS
OUTPUT
DC
11-18V
120ºF = 50ºC
2 CELL
3 CELL
4 CELL
5 CELL
6 CELL
VENOM PRO - CHARGER
Thin CA Glue Thread Lock
CAUTION: LOW VOLTAGE CUT-OFF
Do not use “NO PROTECTION” when using LiPO battery packs. Monitor the battery pack temperatures after
each run. Do not allow the battery pack temperatures to exceed 120º F/ 52º C while in use. Select a higher low
voltage cut-off setting to help reduce the temperature of the battery packs. It is OK to use “NO PROTECTION”
when using NiCD or NiMH battery packs.
ESC SETUP CONT.
Tuning
Category
Running
Mode
LiPO
Cell #
Low
Voltage
Cutoff
Timing
Forward
Only
Auto
Calculate
No
Protection
0º
2
Cells
2.8V/Cell
3.75º
3
Cells
3.0V/Cell
7.5º
4
Cells
3.2V/Cell
11.25º
5
Cells
3.4V/Cell
15º
6
Cells
18.75º 22.5º 26.25º
BEEP TONES
“B”
1 Short Beep
“BB”
2 Short Beeps
“BBB”
3 Short Beeps
“BBBB”
4 Short Beeps
“Beep-”
1 Long Beep
“Beep-B”
1 Long
1 Short Beep
“Beep-BB”
1 Long
2 Short Beeps
“Beep-BBB”
1 Long
3 Short Beeps
FULL THROTTLE
Entering Program Mode
Shaded Fields are Factory Settings (Recommended).
Selecting Category
Selecting Value for Category
If you are unsure if you have exited the program mode, you can disconnect
the battery and your programming will be saved.
FULL THROTTLE
Turn on transmitter.
Hold full throttle and connect battery.
- Continue to hold full throttle until musical tone sounds (5 second).
* CONTINUE TO HOLD FULL THROTTLE WHILE MOVING ON TO STEP 2*
Your ESC will again emit a series of beep tones. The beep tones represent a
dierent value. (Review chart below for tone diagram).
To select a value, simply wait for the desired beep tones to emit and pull full throttle.
Move the throttle to the neutral position. Within 2 seconds you will exit program mode. If you
continue to full throttle position, you will go back to step #2 and you can select a different tuning
category.
The ESC will emit a series of beep patterns. Each pattern represents a category:
To select tuning category, move throttle to neutral after desired beep pattern sounds.
*YOU ARE NOW IN THE SELECTED TUNING CATEGORY*
1. “Beep” Running Mode
2. “Beep-Beep” LiPO Cells
3. “Beep-Beep-Beep” Low Voltage Cutoff Threshold
4. “Beep-Beep-Beep-Beep” Timing
To Next Page
