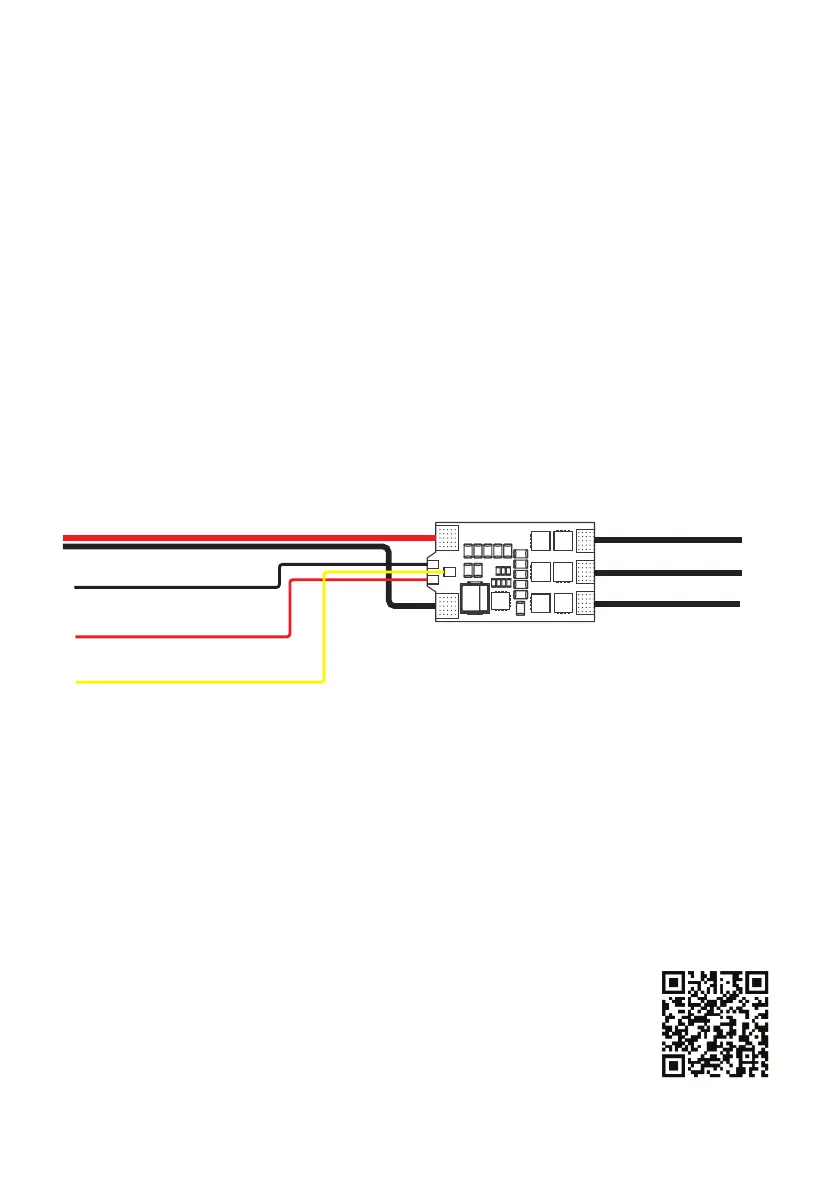

ATOMRC Exceed BLS 30A 5VBEC ESC Wiring Diagram
ESCInformation/电调说明
1.The ESC included with the model has a safe start.If the motor battery is connected to the ESC
and the throttle stick is not in the low throttle or off position,the motor will not start untill the
throttle stick is moved to the low throttle or off position.
2.Power on the ESC(The ESC must connect to the motor and Receiver). The motor will emit a
series of beeps, after the beeps, set the the throttle stick the the minimum, the motor will emit
a series beep again. now the ESC calibration is done.
1.电调具有安全启动保护功能，当电机、电池连接电调后，电调信号未处于最低位置，电调油⻔
输出不会启动。
2.电调油⻔校准：请先拆卸螺旋桨，将油⻔摇杆移动到最⾼位置后通电，当哔哔声结束后，迅速将
油⻔摇杆移动到最低位置，哔哔声⾳结束，油⻔校准成功。
100
+
-
G
5V
s
MOTOR
VCC/电源正极
Output 5V3A/5V3A输出
Throttle/油⻔信号
Throttle GND/油⻔信号地
Voltage input/电压输⼊范围: 2~4S Lipo
Max Current/最⼤电流: 35A
Output/输出：Built in 5V 3A BEC/内置5V 3A BEC
Size/尺⼨：29.5*17.5mm
Throttle calibration /电调油⻔校准
Please download the latest user manual at
www.atomrc.com
