1
2

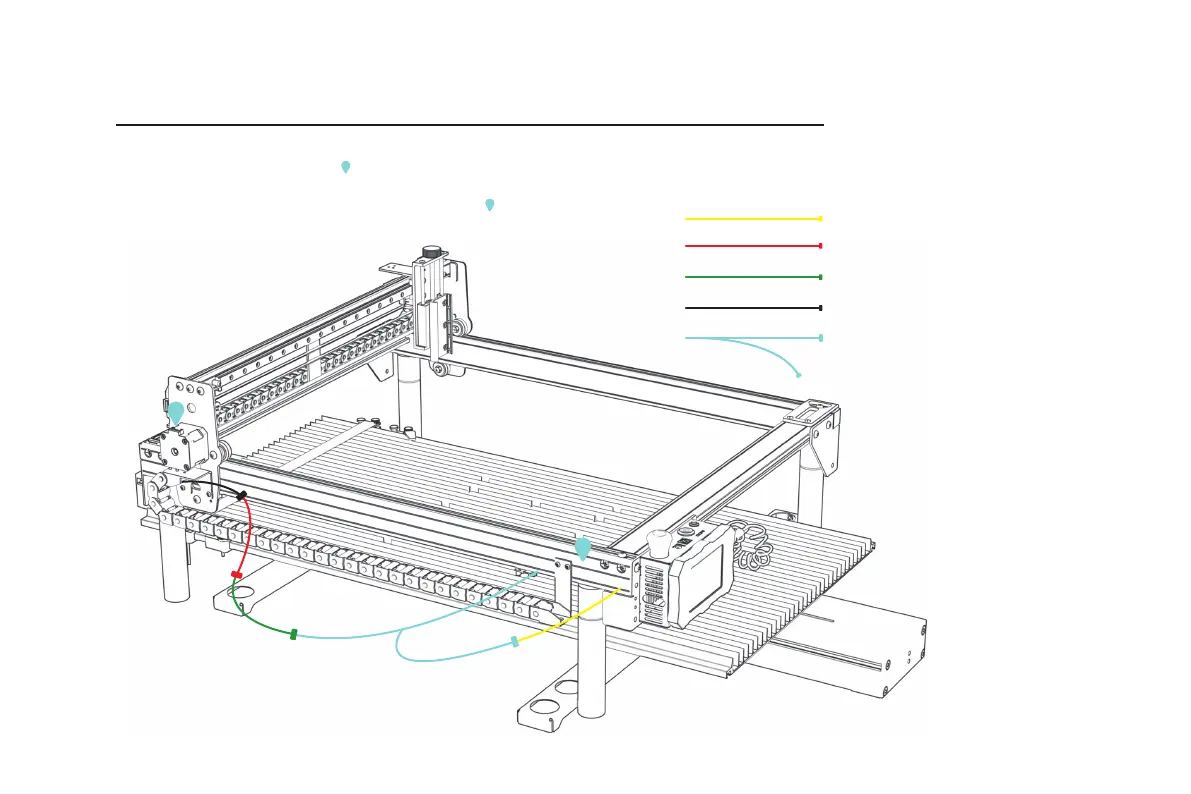

Wiring method two ：
10
（When your engraving machine does not have a Y-axis switching po）
Machine line connector
Reverse sequence motor line
Motor link cable
Limit switch wire
conveyor line
1
2
1.Pull out the conveyor harness.
2.Unplug the wiring at location ,Use an adapter cable to connect ceain models (the engraving machine will cause the conveyor
to reverse.It is necessa to connect another sequence conversion line to the motor line).
3.Pull out the wire at the limit switch and connect it
