ATrack AK7 - 4.7. LED Indicators

Confidential Document
Page 11 of 26
4
4
.
.
7
7
.
.
L
L
E
E
D
D
I
I
n
n
d
d
i
i
c
c
a
a
t
t
o
o
r
r
s
s

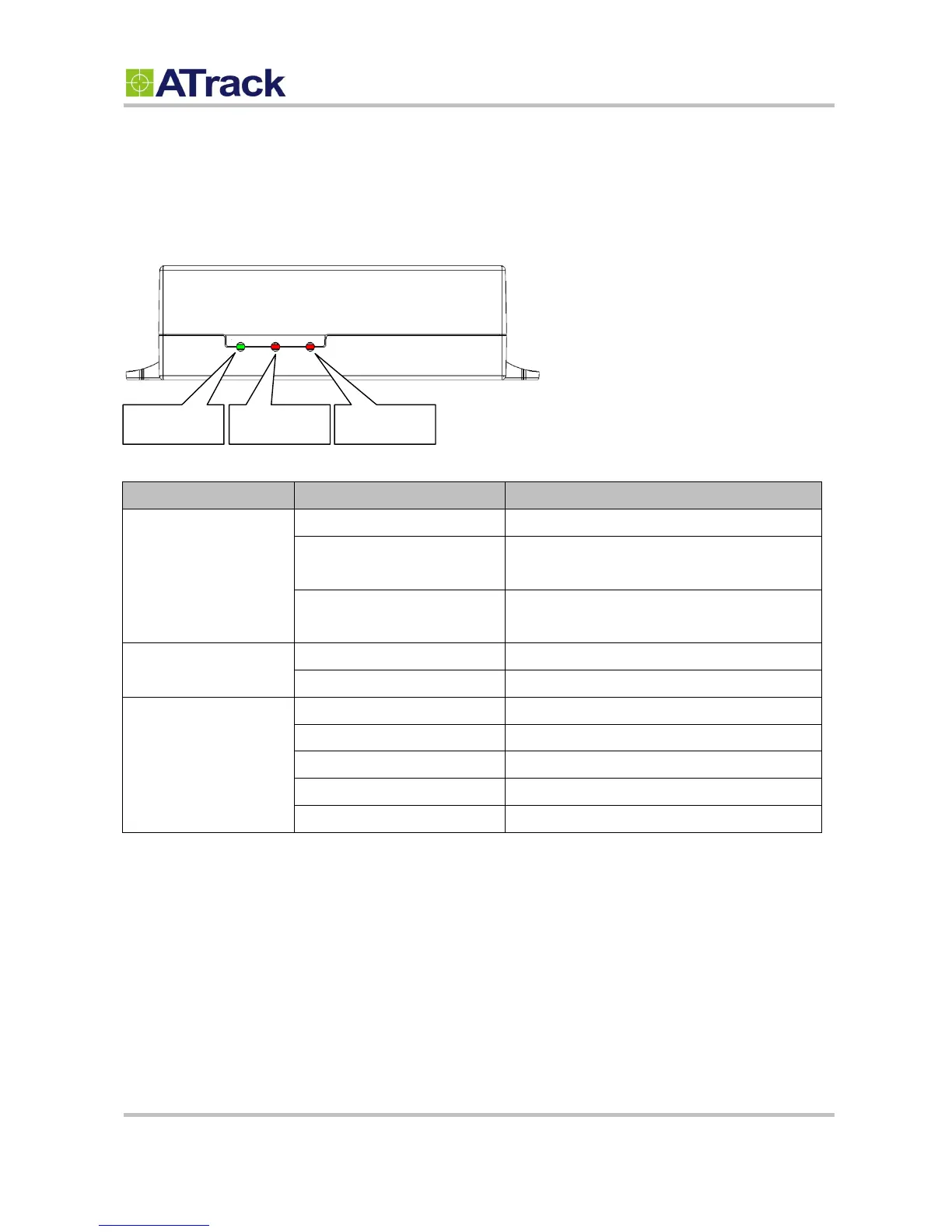

The following figure shows the location of the device LEDs.
LED
Indication
Description
PWR (Green)
Solid On
In full operation mode
1 blink (0.1 sec.) in every 10
sec.
In sleep mode
1 sec. On, 1 sec. Off
GPS module off, External power lost, running on
backup battery
GPS (Red)
0.7 sec. On, 0.7 sec. Off
Searching for GPS signal
Solid On
Position get fixed
GSM (Red)
Off
GSM module off
0.7 sec. On, 0.7 sec. Off
Searching for GSM signal
0.2 sec. On, 2 sec. Off
Registered to GSM network
2 blinks in every 2 sec.
Connected to GPRS network
Continuous blinking
SIM PIN Error
Note: In the case of SIM PIN Error, the device will check the AT$SPIN every 10 minutes and try to
access the SIM again. The PIN will be validated 3 times and if it fails the last attempt, including the first
inserting time, the SIM card will be locked. Once the SIM is locked, you need to contact your GSM
carrier for the PUK in order to unlock the SIM card using your cell phone.
