Au3Tech HW970 - Controller Wiring Description

27

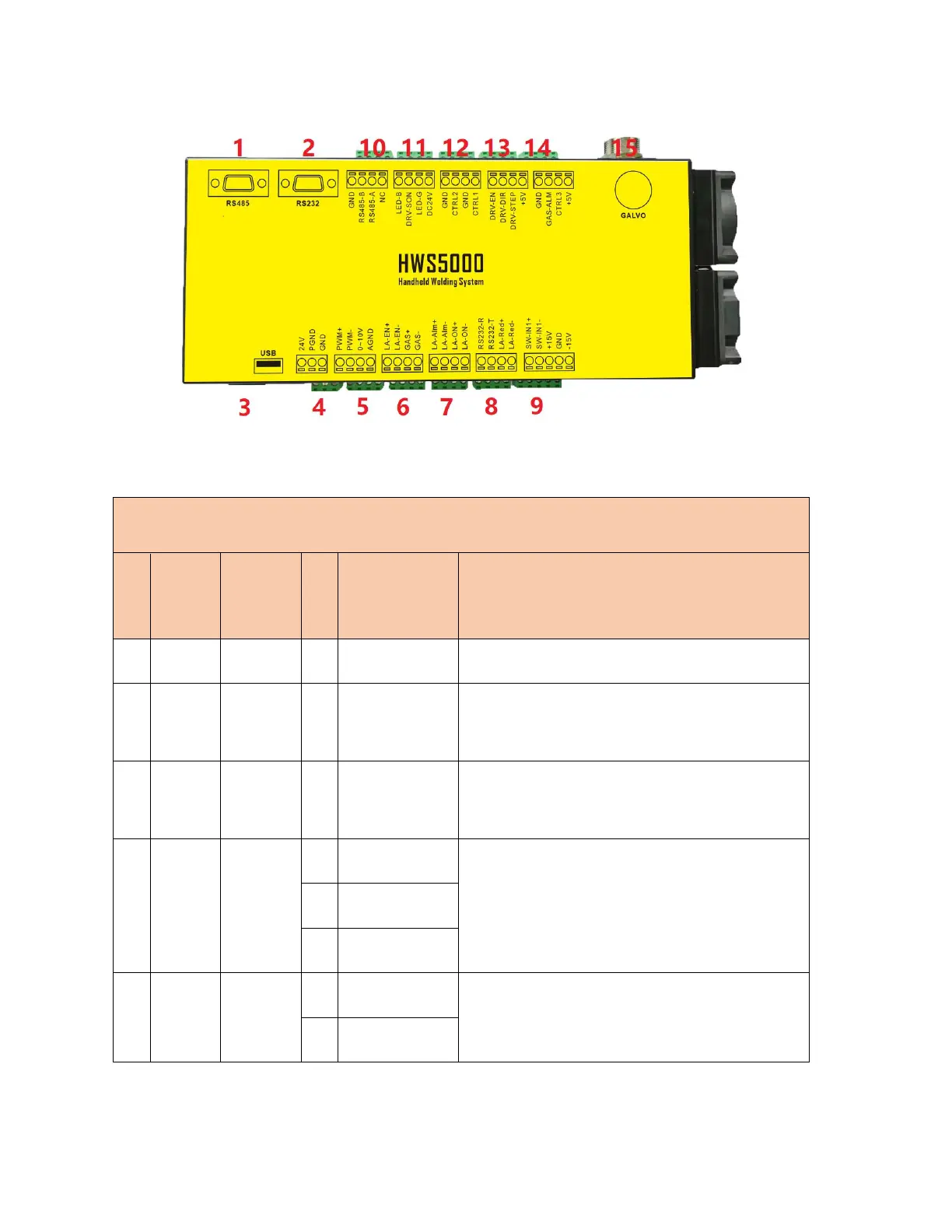

1.2 Controller wiring terminal description
Controller wiring terminal
For detailed description of the controller terminals, please refer to the table below.
Controller terminal description
NO.
Port
screen
printing
Input/
Output
Pin
Pin Definition
Terminal description
1
RS485
IN/OUT
/
RS485
Touch screen communication interface
2
RS232
IN/OUT
/
RS232
RS232 interface (wireless control
receiver)
3
/
IN/OUT
/
USB
USB interface (wireless communication/U
disk download)
4
POWER
IN
1
24+
Controller DC24V power input
2
PGND
3
GND
5
CON1
OUT
1
PWM+
DC24V\DC5VPWM output signal
(The output amplitude can be configured)
2
PWM-
