TH115 (24V model)
9
ENGLISH

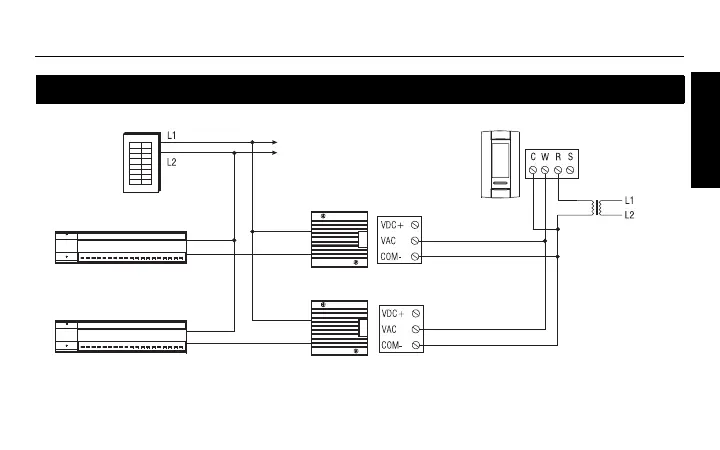

Wiring diagram - Multiple SSRs with External Transformer
Electrical
Panel
Heater
Heater
External 24 V
Transformer
Red
Red
Black
Black
TH115
SSR
SSR
