TH115 (24V model)
7
ENGLISH

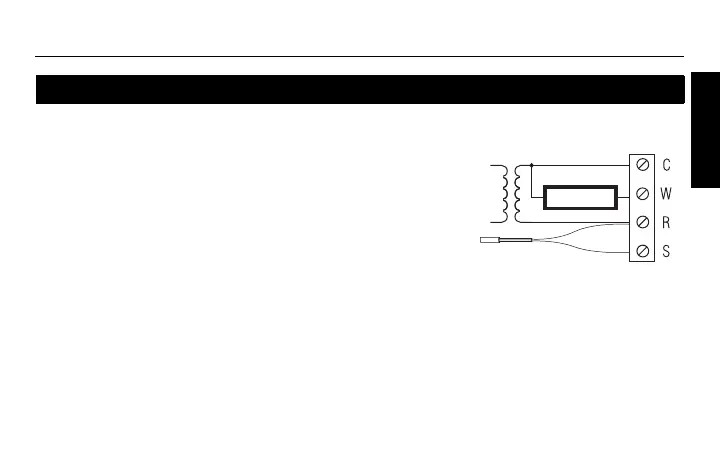

Connect the floor sensor between terminals R and S (no polarity).
• The sensor wires must not come in contact with the
electrical wires and must be routed outside the
electrical box and follow the wall down to the floor.
• Position the sensor cable such that it does not come in
contact with the floor heating wires. The sensor must
be centered between two floor heating wires for best
temperature control.
• Do NOT staple the sensor head (the plastic end) to the
floor. Doing so might damage the sensor. Any damage
might not be noticeable during testing but can become
apparent several days later.
Connecting the floor sensor
69-2618EFS-01 (5 x 3.125).book Page 7 Thursday, November 21, 2013 2:00 PM
