Aube Technologies TH209 - Wiring

TH209
4
Wiring
Connect either one of
the thermostat wires
to the heater wire and
the other one to the
power supply wire
using solderless
connectors for copper
wires.
NOTE: All cables and
connections
must conform
to the local
electrical code. Special CO/ALR solderless connectors must be
used when connecting with aluminum conductors.

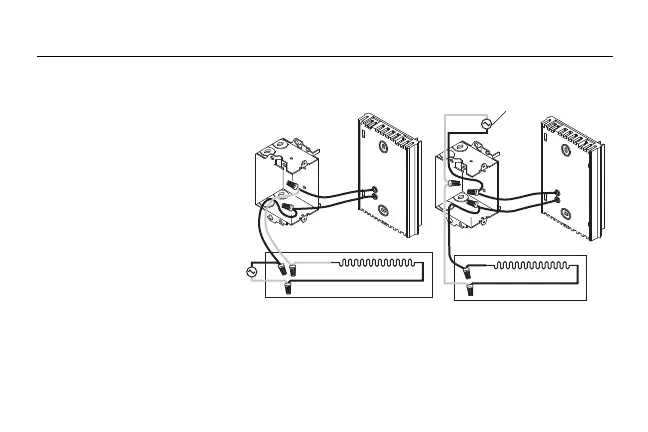

2-wire installation
4-wire installation
Power supply
Power supply
