AuCom MVS Series - Dimensions and Weights

SPECIFICATIONS
710-03261-00A 6 MVS SERIES

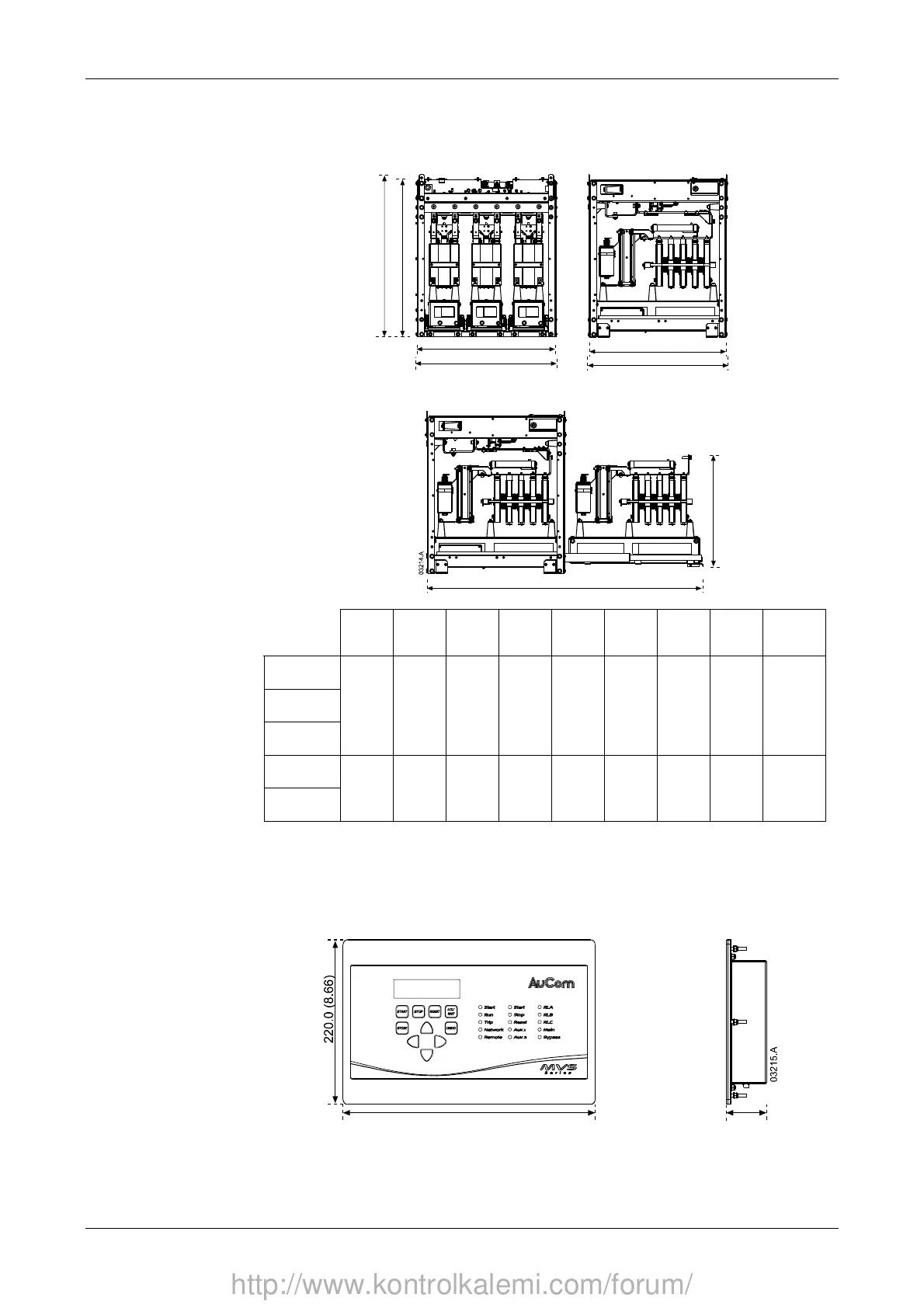

3.2 Dimensions and Weights
Power Assembly
A
a
b
B
c
C
d
e
Front View Side View
Extended
A
mm
(inch)
B
mm
(inch)
C
mm
(inch)
a
mm
(inch)
b
mm
(inch)
c
mm
(inch)
d
mm
(inch)
e
mm
(inch)
Weight
kg (lb)
MVS-
xxxx-V02
MVS-
xxxx-V03
MVS-
xxxx-V04
772
(30.39)
669
(26.34)
667
(26.26)
750
(29.53)
658
(25.91)
650
(25.59)
1302
(51.26)
531
(20.91)
165
(363.76)
MVS-
xxxx-V06
MVS-
xxxx-V07
832
(32.76)
875
(34.45)
817
(32.17)
810
(31.89)
864
(34.02)
800
(31.50)
1559
(61.38)
551
(21.69)
217
(478.40)
Please contact your local supplier for dimensions for MVS-xxxx-V11.
Controller
The MVS controller is suitable for use with all models in the MVS Series.
340.0
(13.39)
54.0
(2.13)
mm (inch)
Weight: 2.1 kg (4.63 lb)
