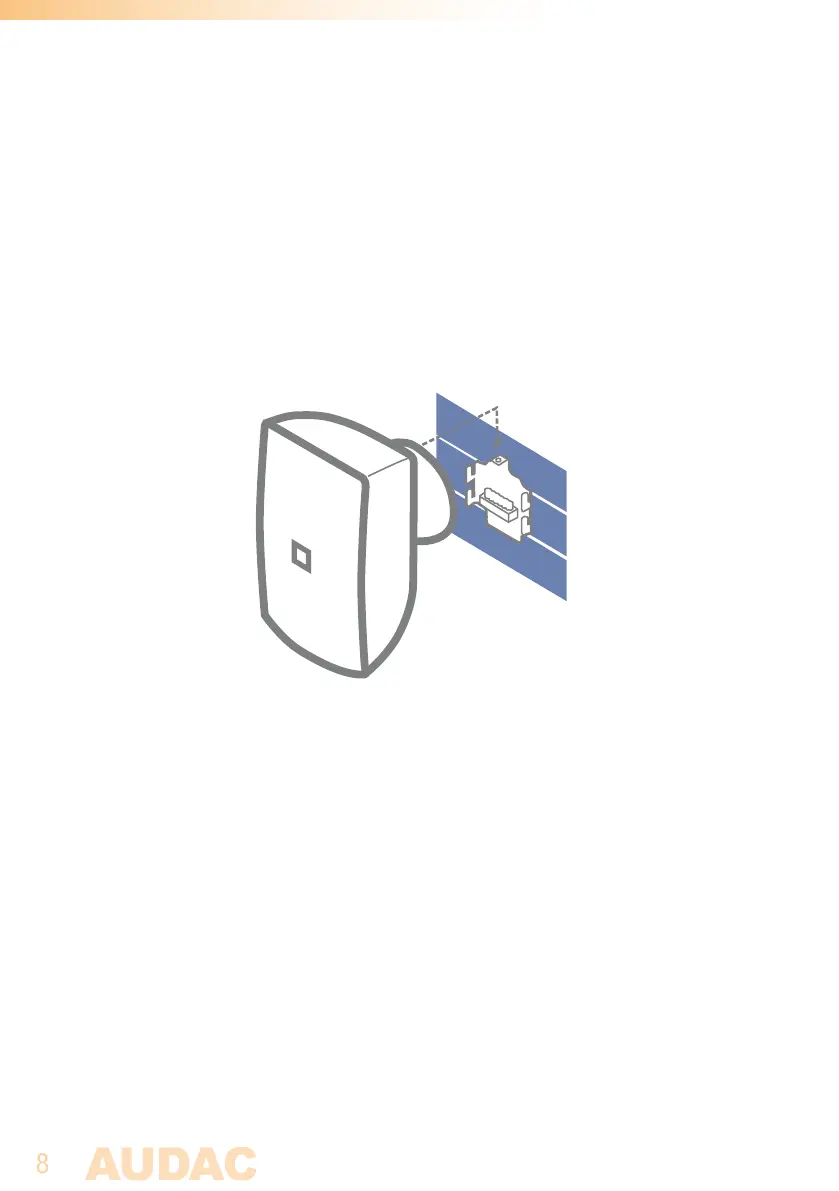

Step 3: Attach the speaker
After the wall plate is mounted and the wires are connected, the loudspeaker can be
fixed to the wall plate. This should be done by sliding the hooks of the wall plate into
the slots on the back side of the speaker, followed by a downwards movement of the
loudspeaker (about 1 cm). Now, the loudspeaker is fixed and connected.
To prevent the loudspeaker from falling down under any circumstance, the security screw
on top of the circular bracket should be tightened.
Step 4: Position the loudspeaker
The last step in the mounting procedure of the speaker is pointing it into the desired
direction. This can be done after (carefully) removing the logo in the center of the front
grill and untightening the allen-key bolt which is located behind it. After this bolt is
untightened by a few turns, the speaker will be in a free state, making it possible to move
it into the left (30°), right (30°), up (5°) and down (30°) position. It can also be rotated
from vertical to horizontal position (rotate counter-clockwise).
Once the speaker is placed in position and pointing into the right direction, it can be
locked by tightening the allen-key bolt. Subsequently the logo should be placed again
in front of the allen-key bolt.
