Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed corresponding
to international wiring standards for professional audio equipment.

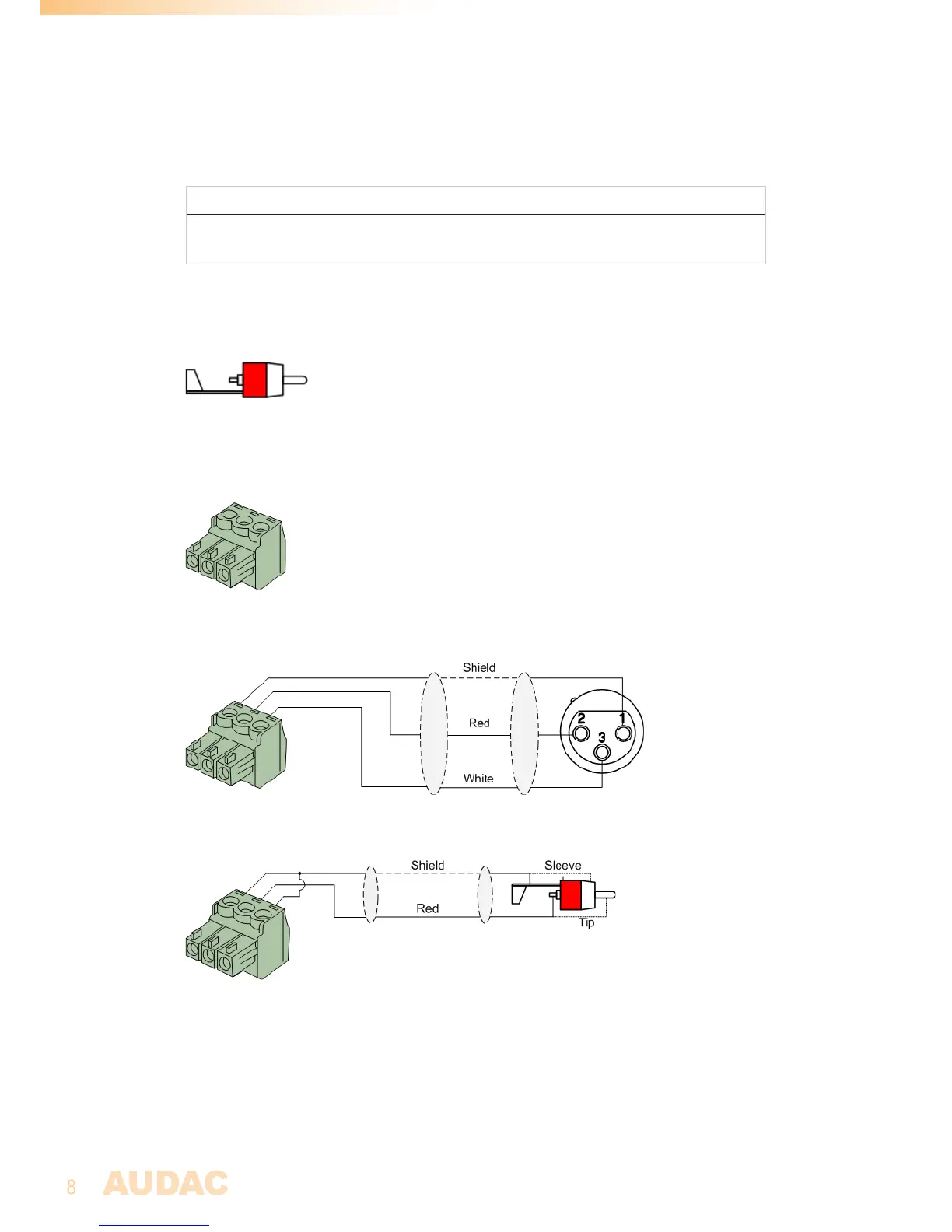

Cinch (RCA):
For unbalanced line input connections
Tip: Signal Sleeve: Ground
3-Pin Terminal block:
For balanced signal input connections
Left: Signal - (XLR Pin 3)
Center: Signal + (XLR Pin 2)
Right: Ground (XLR Pin 1)
For balanced signal input connections
:
For unbalanced signal input connections
