Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed corresponding
to international wiring standards for professional audio equipment.

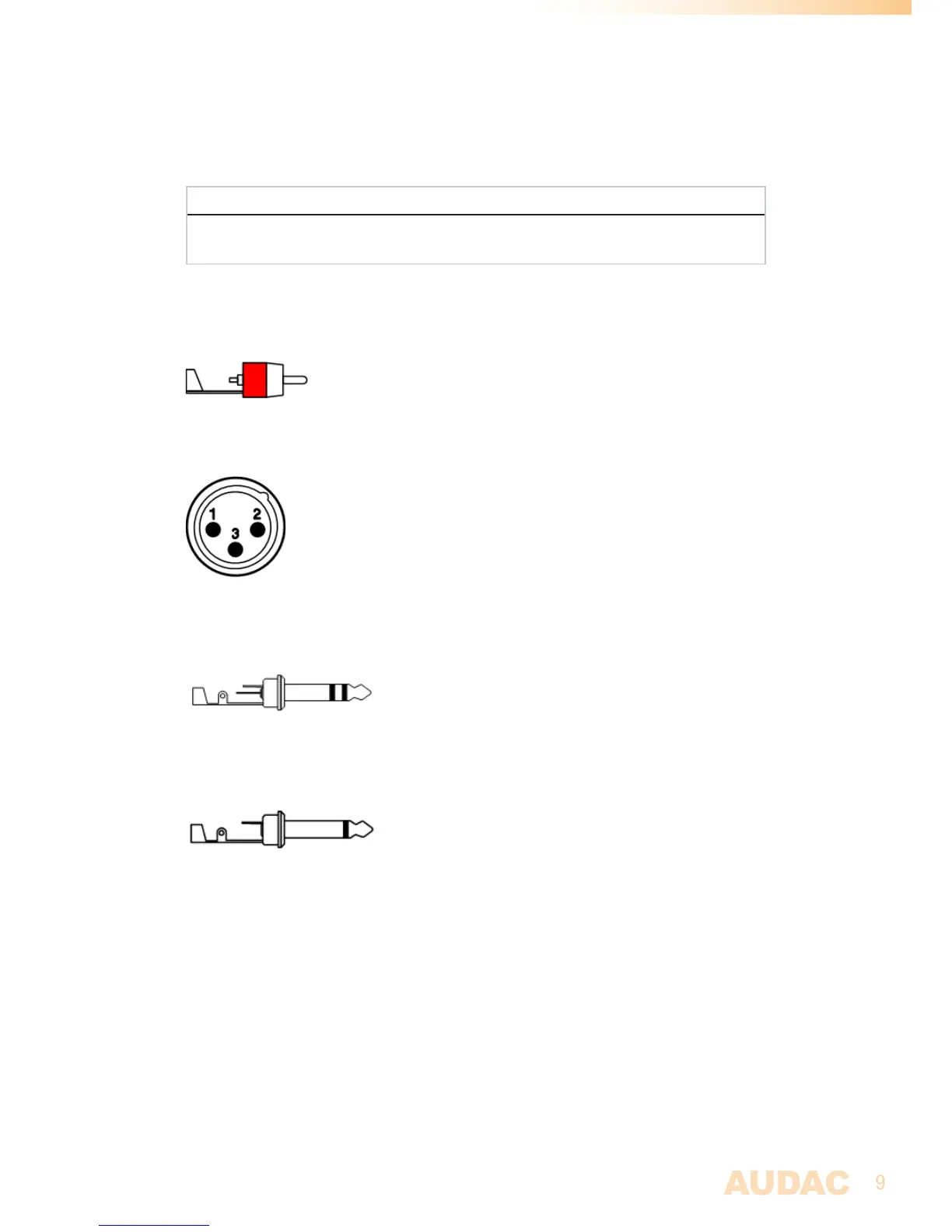

RCA (Cinch):
For unbalanced line input connections.
Tip: Signal Sleeve: Ground
White: Left Red: Right
XLR:
For balanced signal input connections
Pin 1: Ground
Pin 2: Signal +
Pin 3: Signal -
6.3 mm (1/4”) balanced Jack:
For balanced line in & output connections.
Tip: Signal +
Ring: Signal -
Sleeve: Ground
6.3 mm (1/4”) unbalanced Jack:
For unbalanced line in & output connections.
Tip: Signal
Sleeve: Ground
