ATTENTION
The twisted pair cabling must always be ‘straight’. In case of self
made cabling, it must be wired as described in this chapter to make
the system work properly.

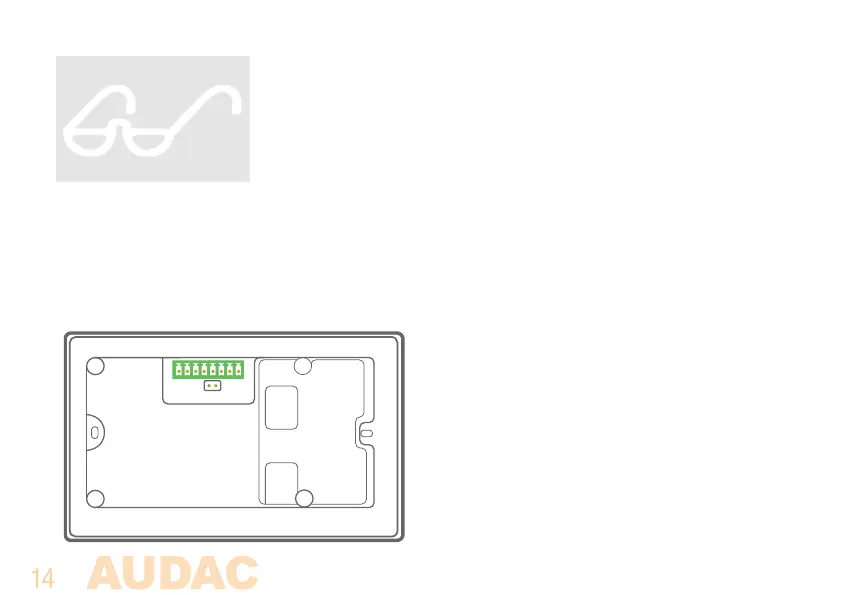

The twisted pair cable should be connected to the 8-pin Euro-Terminal block connector on the rear
side of the wall panel. The connector starts with Pin1 on the left side to Pin8 on the right side. These
Pin’s should be connected to the corresponding Pin’s of the RJ45 connector.
DW5066 Connector PINOUT
Pin 1 White-Orange AUDIO RX A
Pin 2 Orange AUDIO RX B
Pin 3 White-Green +24V DC
Pin 4 Blue RS485 A
Pin 5 White-Blue RS485 B
Pin 6 Green GND
Pin 7 White-Brown AUDIO TX A
Pin 8 Brown AUDIO TX B
