Step 6:

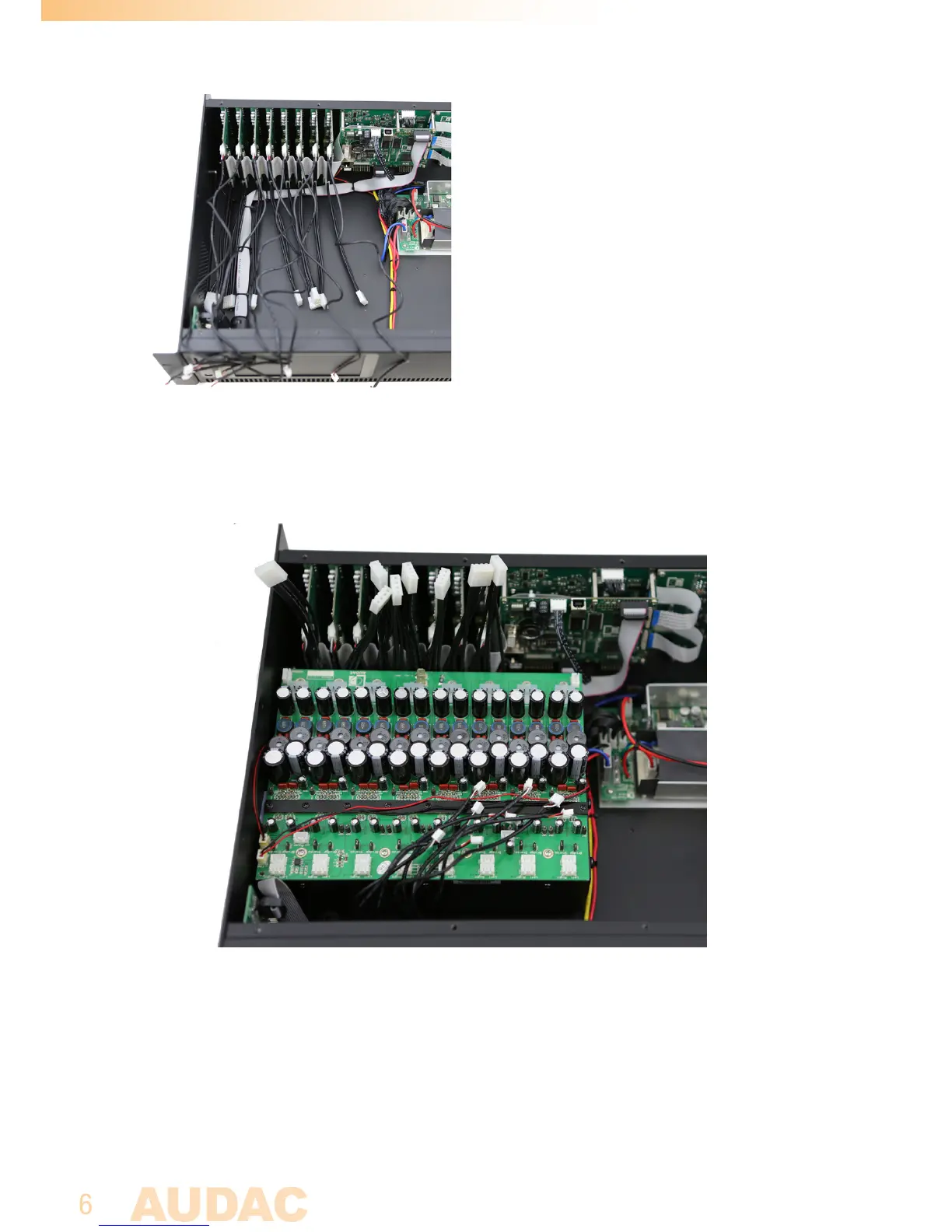

Then place the amplifier inside the matrix housing and fix it by inserting and
tightening four screws from the housings bottom side.
Connect the loudspeaker cables coming from the I/O board to the provided connectors
on the amplifier module. Make sure each connector on the I/O board is connected in
sequential order to the corresponding connector on the amplifier module.
Connect the stereo shielded signal cables coming from the I/O board to the
corresponding connectors on the amplifier module.
Align the cables to facilitate the placing
of the amplifier module.
Use cable ties to hold the signal cables
together.
Signal cables will go under the
amplifier module whereas the output
cables remain at the back of the unit.
