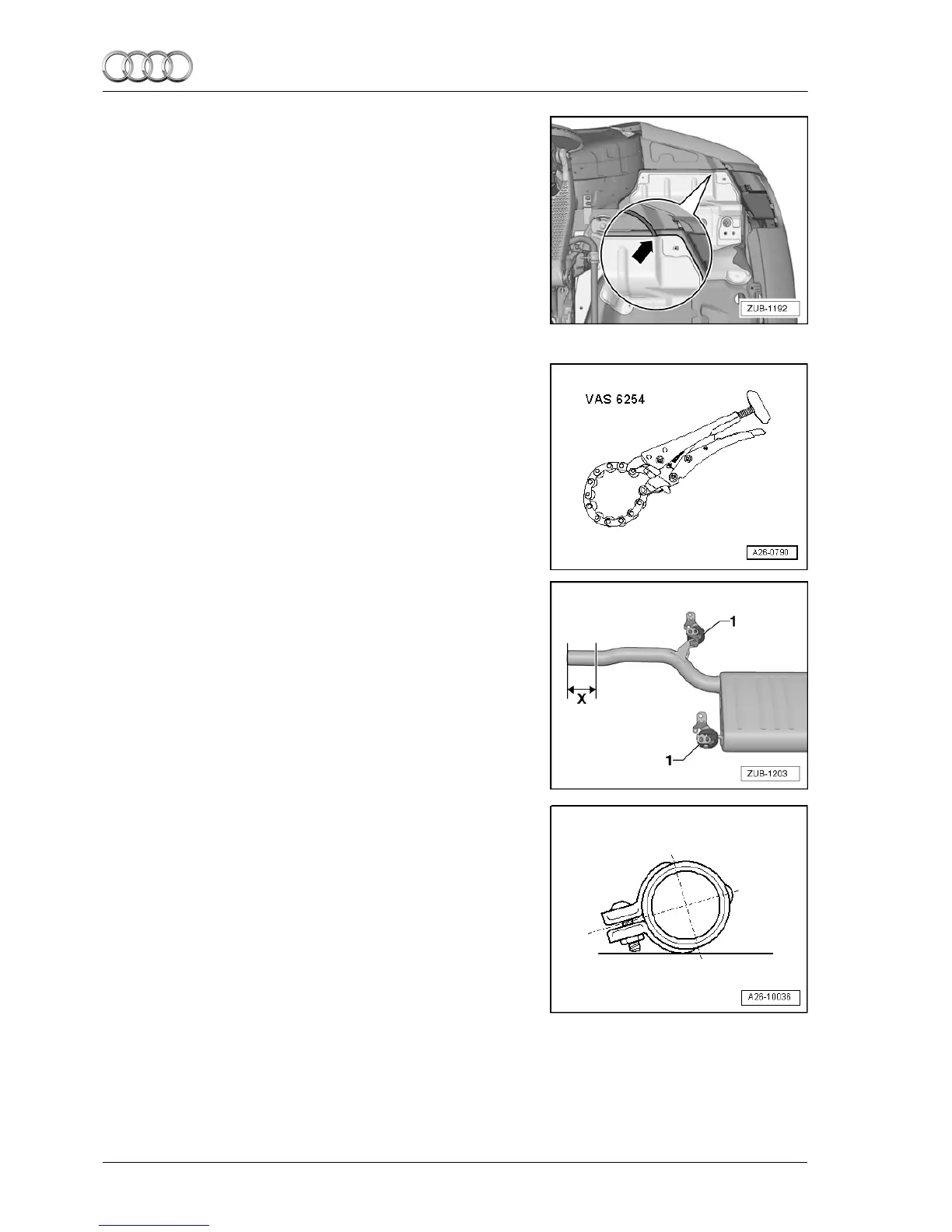

– Select the right shield plate from the assembly set to match
the vehicle type ⇒ Page 2.
– Assemble the shield plate on the left and right (from the as-
sembly set), paying attention to the position of the wires be-
low and the edge of the shield plates -arrow-.
– Remove the diffuser and install the dual diffuser ⇒ Rep. gr.
63.
On the Audi A5 Coupé and Audi A5 Cabrio only
Special tools and workshop equipment required
◆ Chain pipe cutter -VAS 6254-
– Shortening the middle silencer at right angles using the
chain pipe cutter -VAS 6254-:
X - 60 mm
Continue for all vehicles
– Position the mountings -1- on the middle silencer - 2x
Fit the new clamping sleeve such that the screw ends do not
protrude over the bottom edge of the clamping sleeve.
● The screwed connection points to the left, viewed in the di-
rection of travel.
– Place the middle silencer in the installation position and
screw the mountings to the vehicle. Continue to support the
middle silencer
