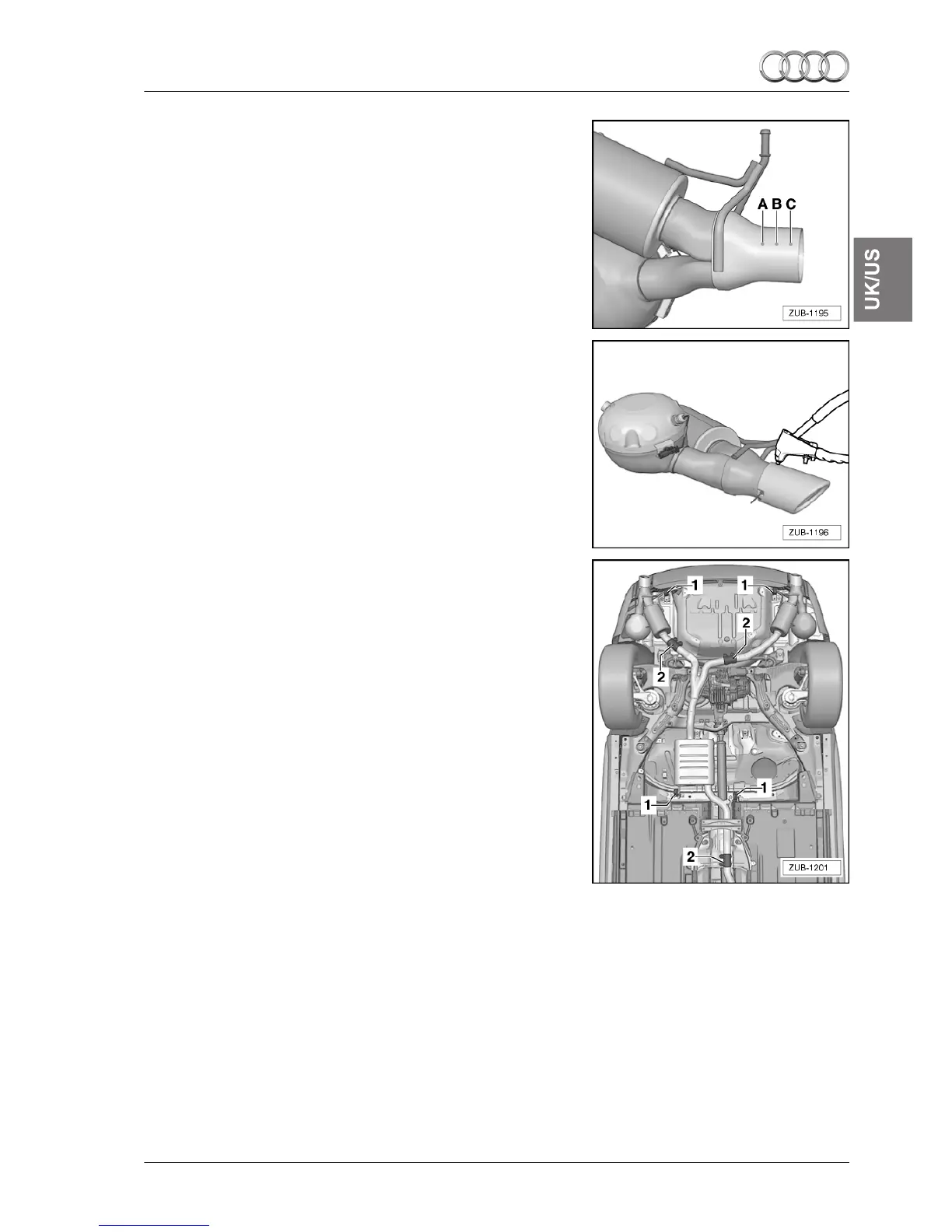

Assembling the exhaust tips
– Select the punch point to match the body version and drill a
∅ 4.0-mm hole.
A - Coupé/Cabrio
B - Saloon/Avant and Sportback vehicles from model year 2012
C - Sportback vehicles from model years up to and including
201
1
– Note the installation position of the actuators and insert and
rivet the exhaust tips ⇒ Fig. “Aligning the exhaust tips” on
page
12
Assembling the actuators
– Position the mountings onto the actuators.
– Place the actuators in the installation position, attach the
connectors, position and tighten the mountings -1-.
– Position the clamping sleeves -2- central to the separating
cut.
● Installation position: screw fittings forward.
– Before tightening the clamping sleeves -2-, install the ex-
haust system so that it is free from tension ⇒
Rep. gr. 26 and
⇒ Fig. on page 12.
