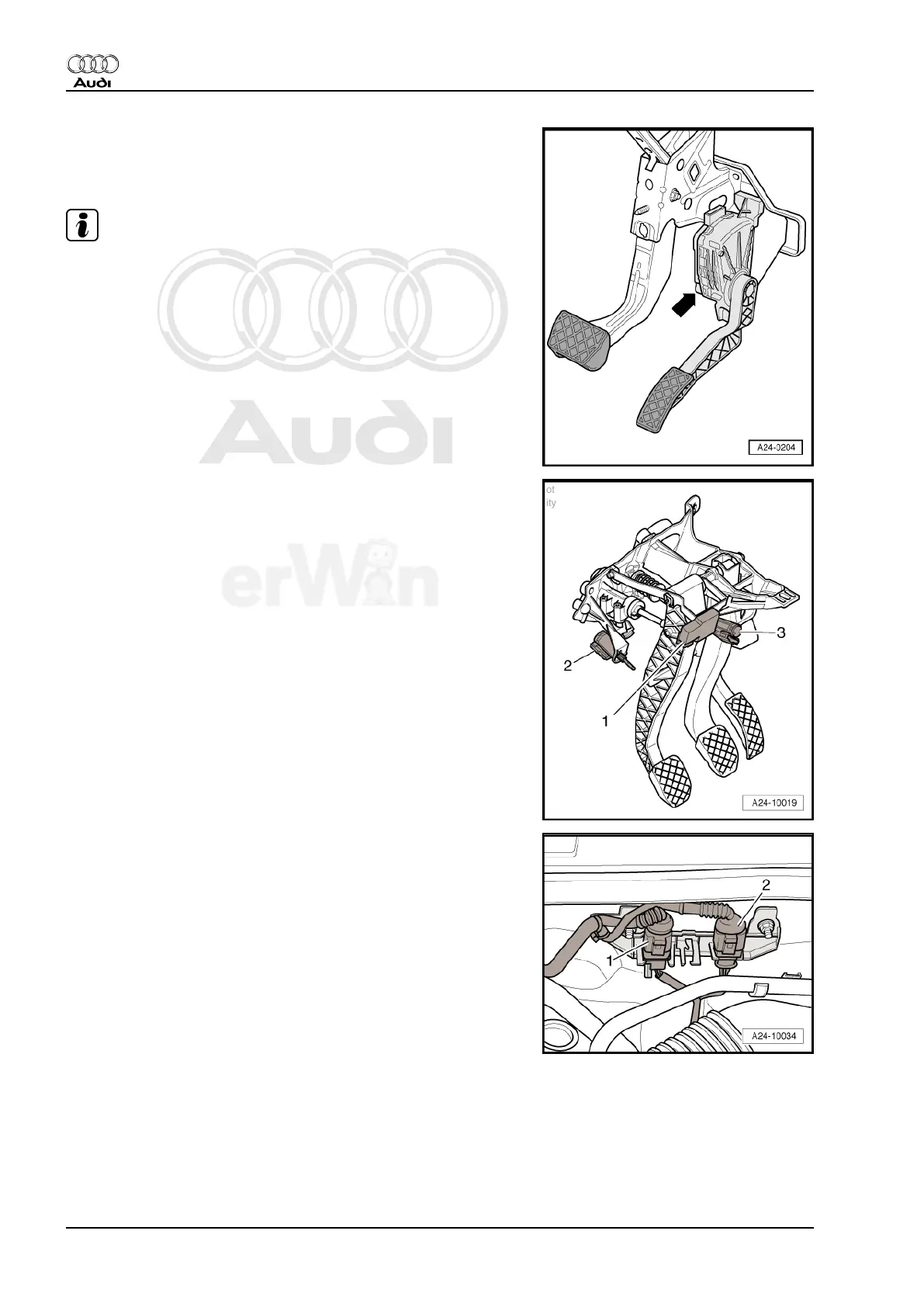

Component Location of Throttle Position (TP) Sensor -G79- / Ac‐
celerator Pedal Position Sensor 2 -G185-
♦ In accelerator pedal module -arrow-.
Note
The Throttle Position (TP) sensor -G79- and accelerator pedal
position sensor 2 -G185- are integrated in the gas pedal module
and cannot be replaced individually.
Component Location of Brake Light Switch -F- / Brake Pedal
Switch -F47- , Clutch Pedal Starter Interlock Switch -F194- and
Clutch Position Sensor -G476-
♦ On pedal bracket.
1 - Clutch position sensor -G476-
2 - Clutch pedal starter interlock switch -F194-
3 - Brake light switch -F- / Brake pedal switch -F47-
Component Location of Right Holder for Connectors on Bulkhead
1 - To Heated Oxygen Sensor (HO2S) -G39-
2 - To Oxygen Sensor (O2S) behind Three Way Catalytic Con‐
verter (TWC) -G130-
Audi A6 2005 ➤
Fuel Injection and Ignition - Edition 03.2008
10 Rep. Gr.24 - Fuel injection system
