7 - Flange shaft (rear)
❑ Removing and installing ⇒ „2.4 Renewing oil seal for flange shaft (rear)“, page 161
❑ Renew oil seal when renewing flange shaft (rear)
❑ Select correct components from ⇒ Electronic parts catalogue
8 - Bolt
❑ Tightening torque and sequence ⇒ page 158
❑ Renew
9 - Ball bearing
❑ For centre differential
❑ ⇒ „2.3 Renewing ball bearing for self-locking centre differential“, page 160
10 - Centre differential
11 - Gearbox
12 - Screw plug
❑ For oil filler hole on transfer box
❑ 20 Nm
❑ Renew

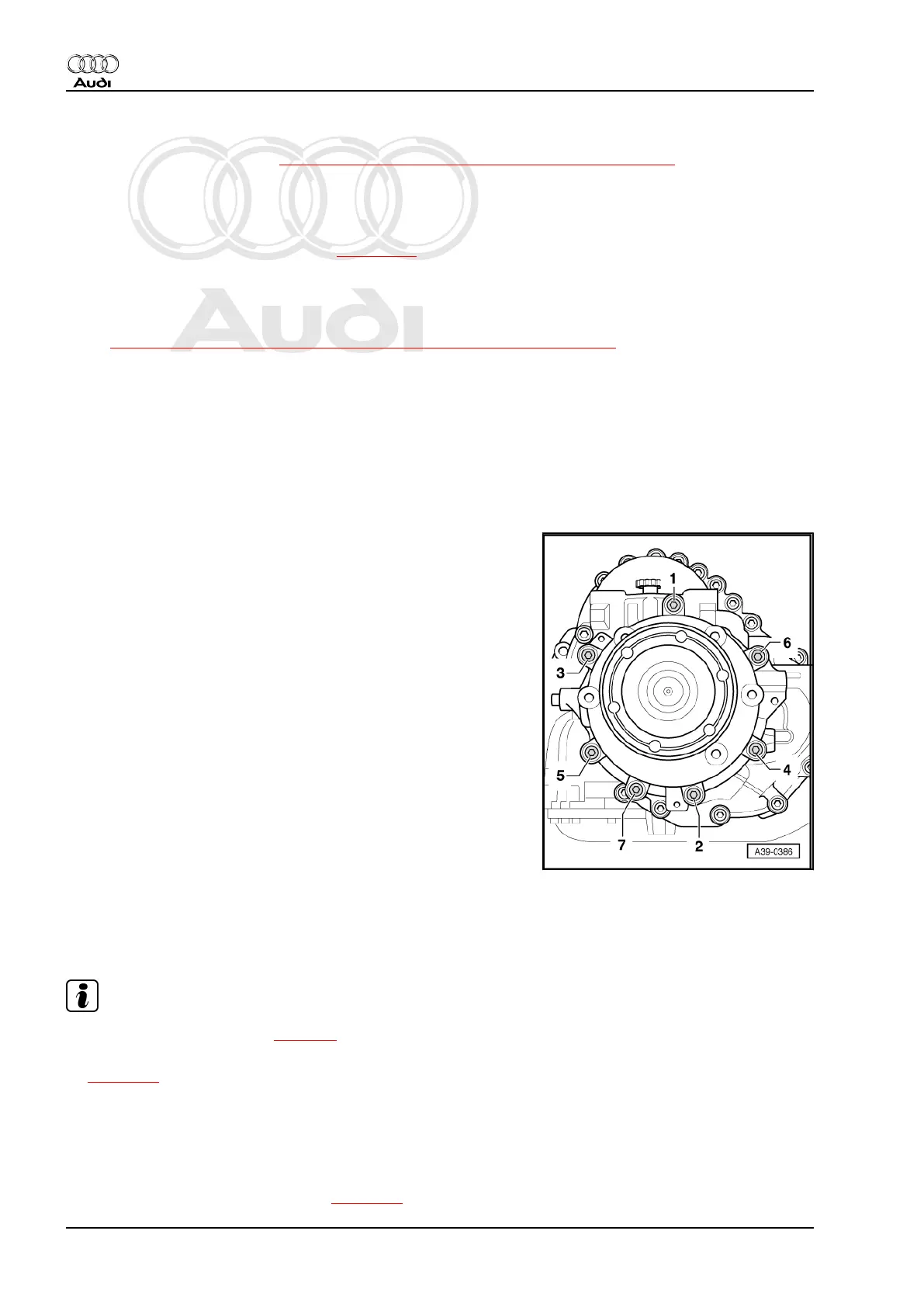

Centre differential housing - tightening torque and sequence
– Tighten bolts for centre differential housing in two stages as
follows:
1. Tighten bolts -1- and -2- initially to 3 Nm.
2. Tighten bolts to 16 Nm in sequence -1 ... 7-.
2.2 Removing and installing centre differen‐
tial housing with gearbox removed
Removing
Note
♦
General repair instructions ⇒ page 1 .
♦
Rules for cleanliness when working on the automatic gearbox
⇒ page 11
♦
The centre differential housing can also be removed and in‐
stalled with the gearbox in the vehicle ⇒ Automatic gearbox
09E, four-wheel drive; Rep. gr. 39 .
• Gearbox removed
• Secure gearbox to assembly stand ⇒ page 18 .
Audi A6 2005 ➤ , Audi A8 2003 ➤
Servicing automatic gearbox 09E, four-wheel drive - Edition 12.2011
158 Rep. gr.39 - Final drive - front differential
