Audi A8 Workshop Manual

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.
4 Dismantling and assembling clutch
„B“
Overview
♦ ⇒ „4.1 Clutch B - exploded view“, page 67
♦ ⇒ „4.2 Dismantling and assembling clutch B “, page 68

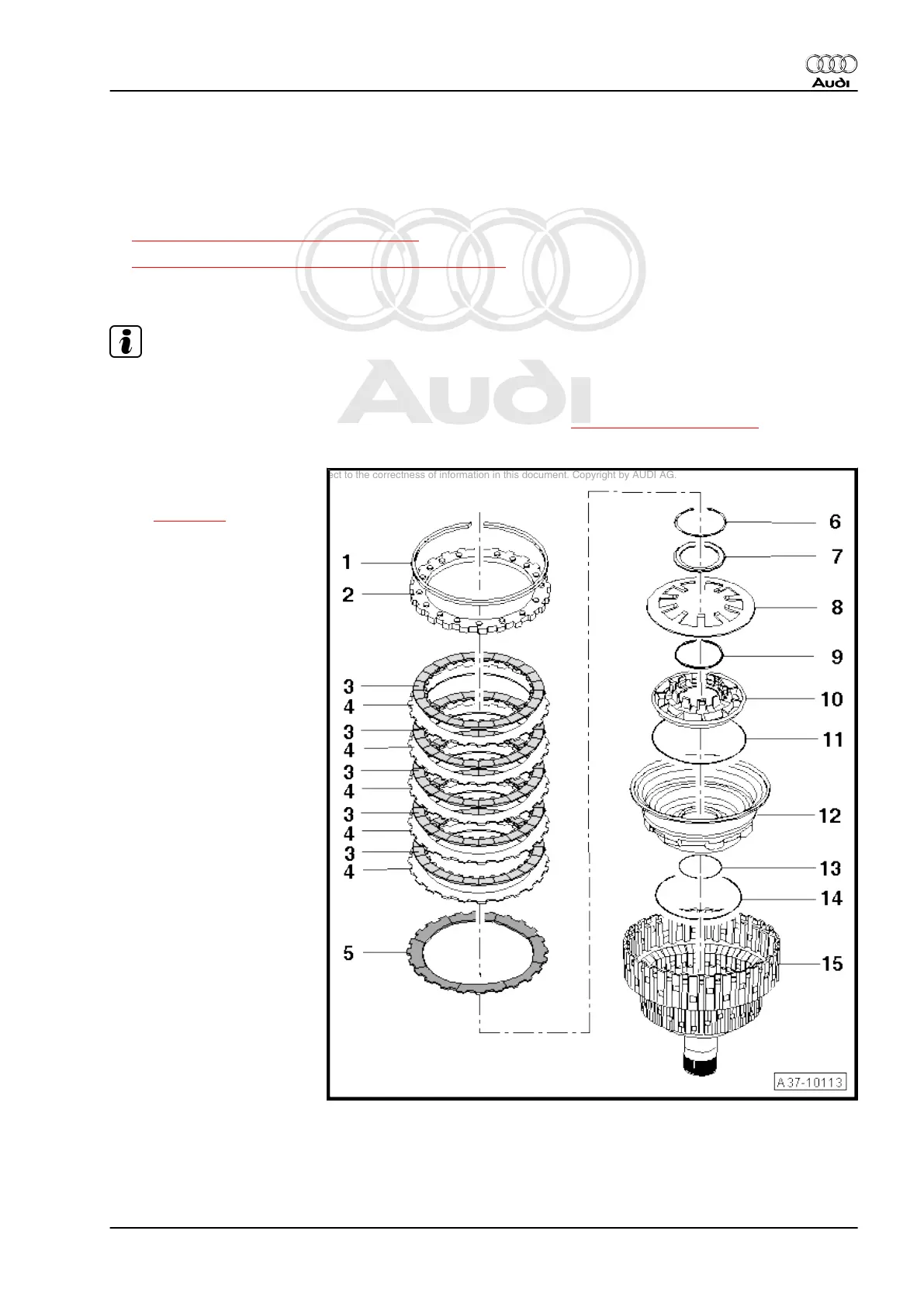

4.1 Clutch „B“ - exploded view
Note
♦ Some of the components shown are supplied as part of an assembly group and cannot be ordered as
separate components ⇒ Electronic parts catalogue .
♦ Check components of clutch „B“ for traces of wear and damage ⇒ „3.5 Clutch B “, page 171 .
1 - Circlip
❑ Determining thickness
⇒ page 71
2 - Thick outer plate
❑ Studded side faces up‐
wards towards circlip
3 - Friction plate
4 - Outer plate
5 - Corrugated spring
6 - Circlip
❑ Renew
7 - Retaining ring
❑ Smooth side faces to‐
wards dished spring
8 - Dished spring
9 - Circlip
10 - Retaining plate
11 - O-ring
❑ Renew
12 - Piston „B“
13 - O-ring
❑ Renew
14 - O-ring
❑ Renew
15 - Cylinder „B“
Audi A6 2005 ➤ , Audi A8 2003 ➤
Servicing automatic gearbox 09E, four-wheel drive - Edition 12.2011
4. Dismantling and assembling clutch „B“ 67
