25

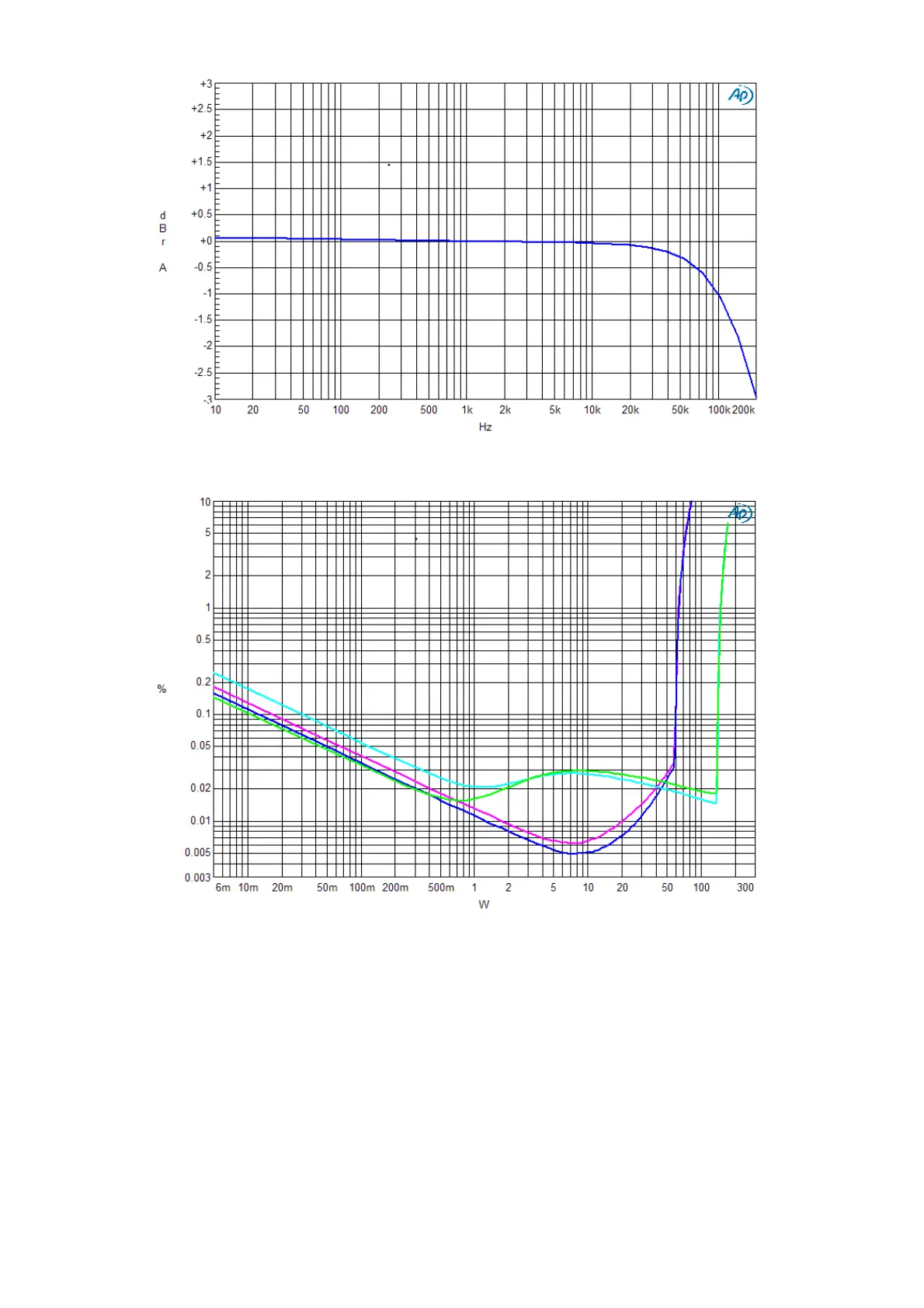

Frequency response at 1W left and right channel
T.H.D + N compared to the output power on 8Ω class A and class AB, 22khz measurement band.
(BLUE ch. LEFT class A, PINK ch. RIGHT class A, GREEN ch. LEFT class AB, LIGHT BLUE ch. RIGHT class AB)
