Audio Technica AT-LP2022

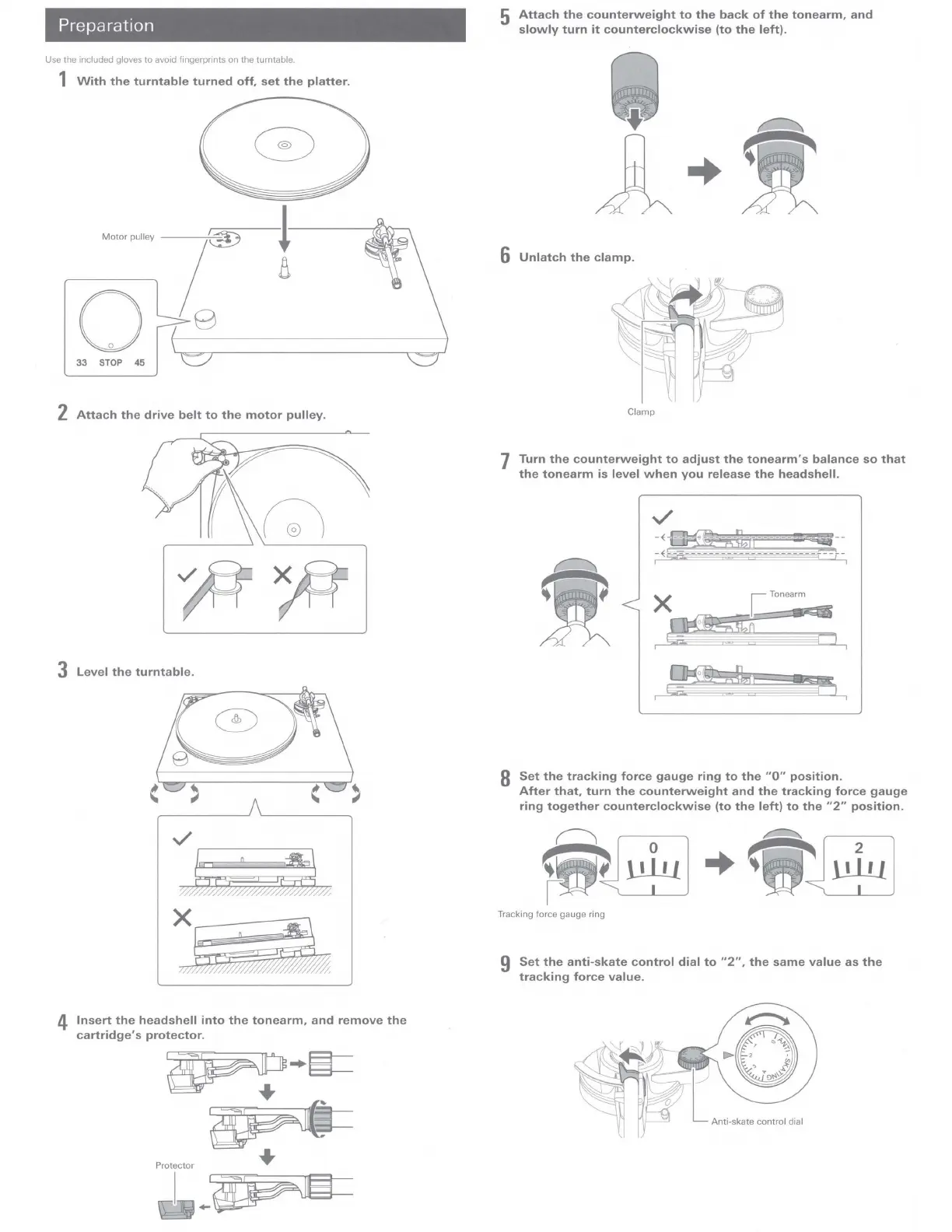

Preparation
Use the included gloves to avoid fingerprints on the turntable
1 With the turntable turned off, set the platter.
Motor pulley !
,®
O I s
33 STOP 45
2 Attach the drive belt to the motor pulley.
~~
~~
J Level the turntable.
✓
x;;;;;:;;~i~ 1//
7//,
~
'~
4 Insert the headshell into the tonearm, and remove the
cartridge's protector.
~·~
~
+
Protector
I..,~
5 Attach the counterweight to the back of the tonearm, and
slowly turn it counterclockwise (to the left).
Jl +
6 Unlatch the clamp.
Clamp
J Turn the counterweight to adjust the tonearm's balance so that
the tonearm is level when you release the headshell.
✓
-:J:3rf J-- Fi - W!l- --_ =:::!{- -
~
)!
•
~
8 Set the tracking force gauge ring to the "O" position.
After that, turn the counterweight and the tracking force gauge
ring together counterclockwise (to the left) to the "2" position.
~
f~~t•!•1] + ( ~t•!•1]
Tracking force gauge ring
g Set the anti-skate control dial to "2", the same value as the
tracking force value.
Anti-skate control dial
