Playing a record

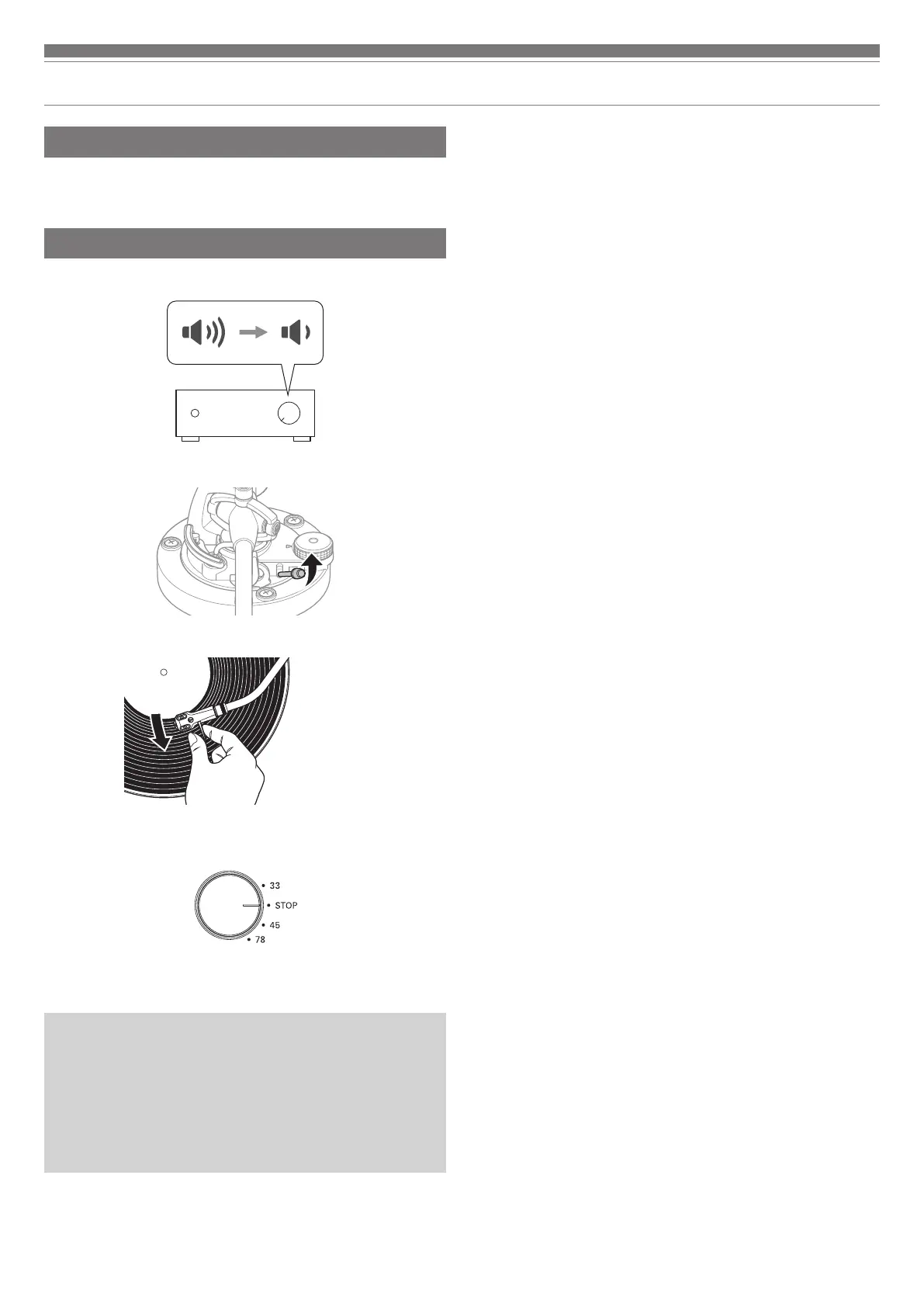

Pausing the record
1. After lowering the volume of the amplifier, speakers, etc.,
sufficiently, lift the tonearm with the tonearm lift control lever.
Stopping the record
1. Lower the volume of the amplifier, speakers, etc. sufficiently.
2. Lift the tonearm lift control lever.
3. Return the tonearm to the tonearm rest and fix it with the clamp.
4. Turn the control knob to the "STOP" position.
• The platter slows down and rotation stops.
5. Remove the record after the platter has come to a complete stop.
• To prevent the record from becoming scratched or warped, remove it
after use.
• Do not use a platter other than the one provided.
• The product is not intended for DJs. Do not touch the record or the
platter while the record is playing.
• If the product is not used for more than 30 minutes, it will enter a standby
mode and the power indicator will light in red. To exit standby mode, turn
the control knob to the platter rotation speed (33/45/78) position. The
power indicator will light in blue again.

Audio Technica AT-LP5X Specifications

Turntable

type	3-speed, fully manual operation
motor	DC servo motor
drive method	Direct drive
speeds	33-1/3 RPM, 45 RPM, 78 RPM
starting torque	> 1.0 kgf.cm

Tonearm

type	Static balanced J-shaped tonearm
effective length	247 mm
overhang	17 mm
stylus pressure adjustment range	0 to 4 g
applicable cartridge weight range	15 to 20 g (including headshell)

Cartridge and Headshell

cartridge model	AT-VM95E
cartridge type	VM
output voltage	4.0 mV (1 kHz, 5 cm/sec)
tracking force range	1.8 to 2.2 g (2.0 g standard)
headshell weight	9.3 g (0.33 oz) (including lead wire)

USB Function

A/D	16 bit 44.1 kHz or 48 kHz USB selectable
computer interface	USB 2.0 Compliant, Windows 7 or above, or MAC OSX or above

General

power supply requirements	100 to 240 V, 50/60 Hz, 0.6 A Max.
power consumption	3 W
dimensions	450.0 mm (17.72") × 352.0 mm (13.86") × 157.0 mm (6.18") (W × D × H)
weight	7.3 kg (16.1 lbs)
