Part names and functions

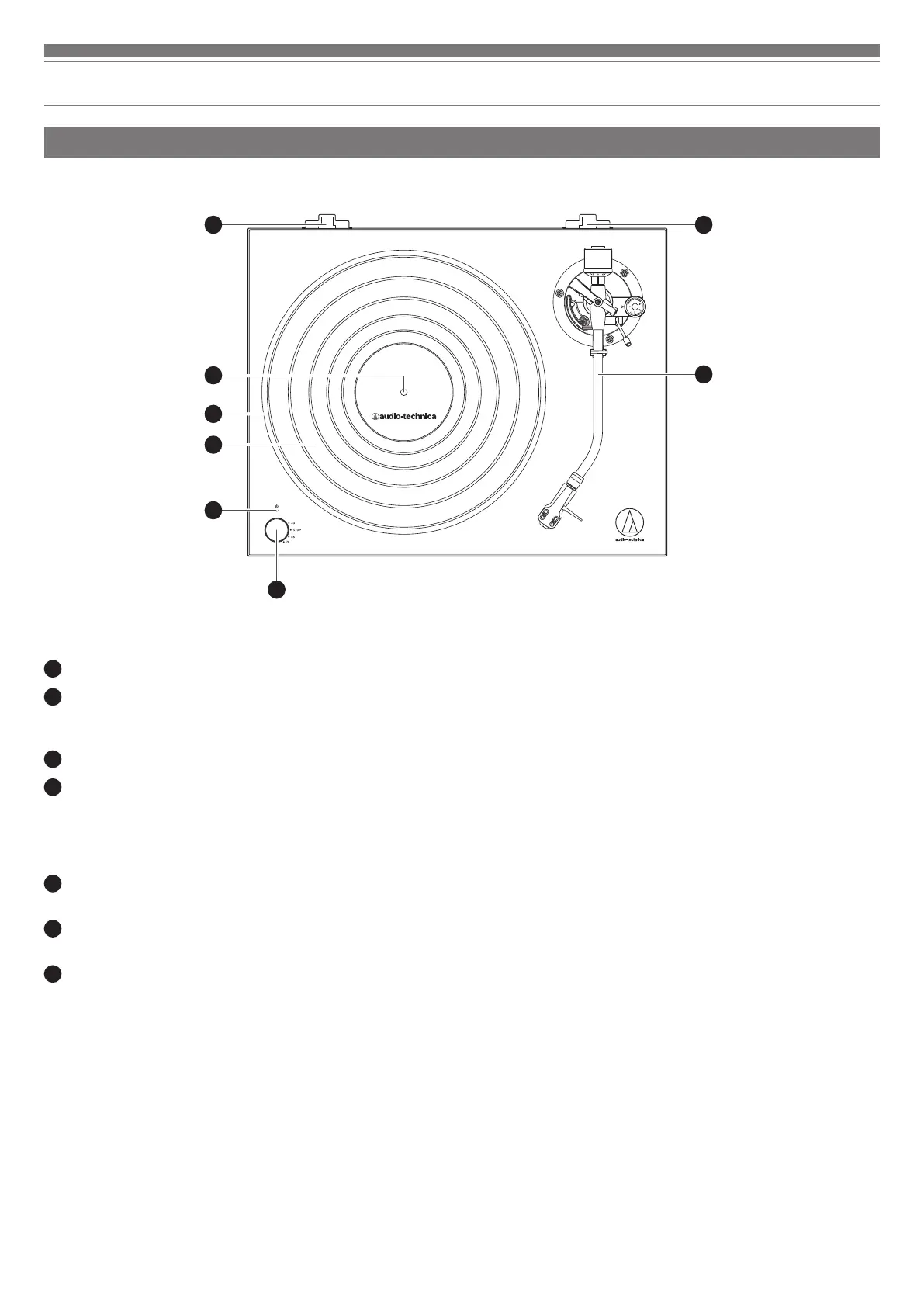

Top view diagram
1
Spindle
2
Platter
Cast aluminum platter mounts directly to center spindle/motor
shaft.
3
Rubber mat
4
Power indicator
Lights in blue: ready to play (AC adapter is connected to the
product, supplying full power).
Lights in red: standby mode (power consumption is reduced after
30 minutes of nonuse).
5
Control knob
Use to start and stop, as well as select the platter's speed.
6
Tonearm
For details, refer to “Tonearm” on p.5.
7
Dust cover hinge holders
Attachment points for dust cover hinges.
5
7
1
2
3
4
7
6

Audio Technica AT-LP5X Specifications

Turntable

type	3-speed, fully manual operation
motor	DC servo motor
drive method	Direct drive
speeds	33-1/3 RPM, 45 RPM, 78 RPM
starting torque	> 1.0 kgf.cm

Tonearm

type	Static balanced J-shaped tonearm
effective length	247 mm
overhang	17 mm
stylus pressure adjustment range	0 to 4 g
applicable cartridge weight range	15 to 20 g (including headshell)

Cartridge and Headshell

cartridge model	AT-VM95E
cartridge type	VM
output voltage	4.0 mV (1 kHz, 5 cm/sec)
tracking force range	1.8 to 2.2 g (2.0 g standard)
headshell weight	9.3 g (0.33 oz) (including lead wire)

USB Function

A/D	16 bit 44.1 kHz or 48 kHz USB selectable
computer interface	USB 2.0 Compliant, Windows 7 or above, or MAC OSX or above

General

power supply requirements	100 to 240 V, 50/60 Hz, 0.6 A Max.
power consumption	3 W
dimensions	450.0 mm (17.72") × 352.0 mm (13.86") × 157.0 mm (6.18") (W × D × H)
weight	7.3 kg (16.1 lbs)
