Audio Technica AT-LP5X User Manual

4
1
Dust cover
2
Feet
Adjust the level of the product.
3
Pre-amplifier selector switch
If using an amplifier with a PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
4
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
5
MM (VM)/MC cartridge selector switch
If using an MM (VM) cartridge, set this switch to the MM position.
If using an MC cartridge, set this switch to the MC position.
6
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground line.
7
USB output
Use this output to connect your turntable to the USB input of your
computer.
8
Power input jack
Connect the AC adapter.

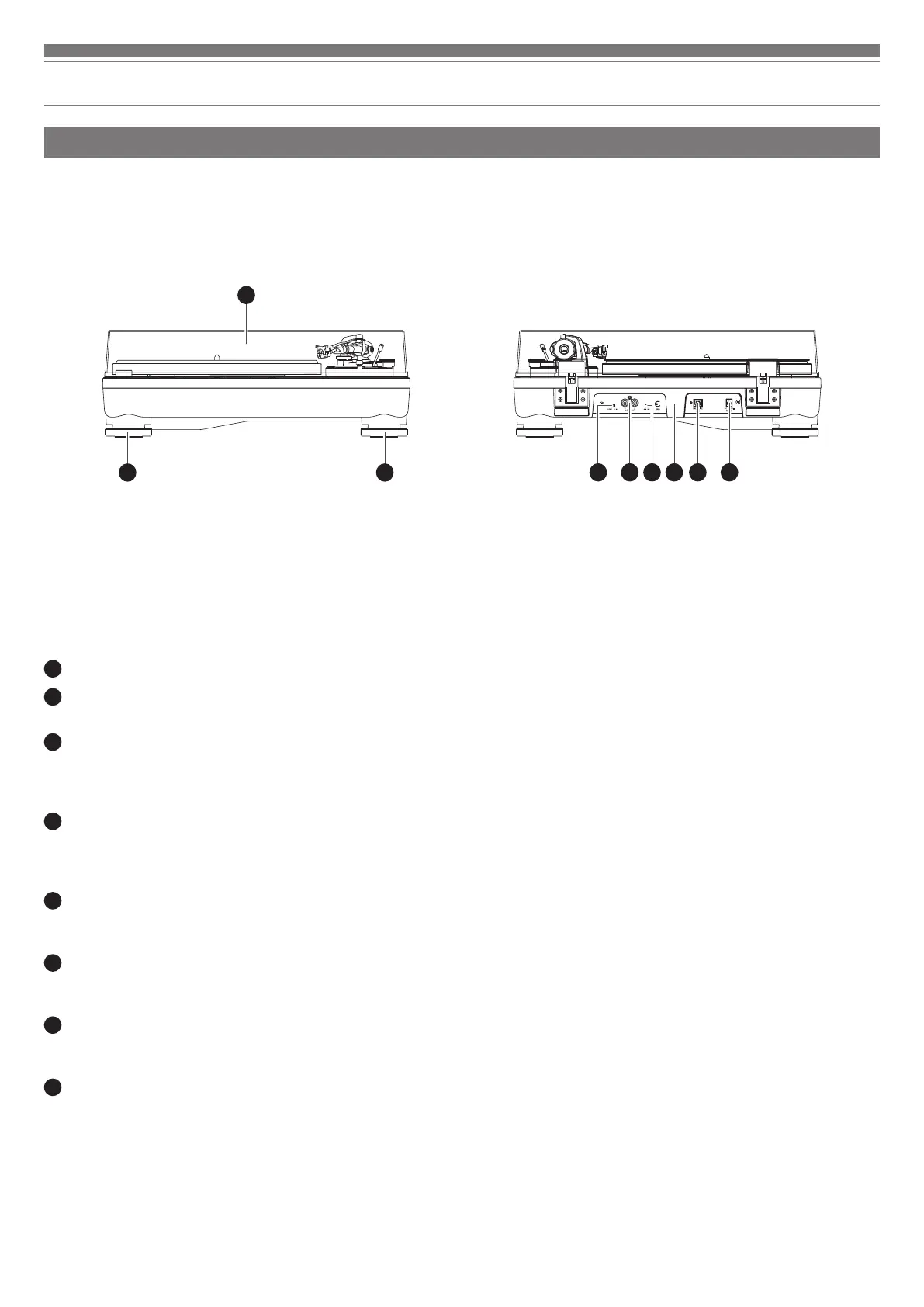

Part names and functions
Front and rear view diagram
2
3 4 5 6 7 8
2
1

Audio Technica AT-LP5X Specifications

Turntable

type	3-speed, fully manual operation
motor	DC servo motor
drive method	Direct drive
speeds	33-1/3 RPM, 45 RPM, 78 RPM
starting torque	> 1.0 kgf.cm

Tonearm

type	Static balanced J-shaped tonearm
effective length	247 mm
overhang	17 mm
stylus pressure adjustment range	0 to 4 g
applicable cartridge weight range	15 to 20 g (including headshell)

Cartridge and Headshell

cartridge model	AT-VM95E
cartridge type	VM
output voltage	4.0 mV (1 kHz, 5 cm/sec)
tracking force range	1.8 to 2.2 g (2.0 g standard)
headshell weight	9.3 g (0.33 oz) (including lead wire)

USB Function

A/D	16 bit 44.1 kHz or 48 kHz USB selectable
computer interface	USB 2.0 Compliant, Windows 7 or above, or MAC OSX or above

General

power supply requirements	100 to 240 V, 50/60 Hz, 0.6 A Max.
power consumption	3 W
dimensions	450.0 mm (17.72") × 352.0 mm (13.86") × 157.0 mm (6.18") (W × D × H)
weight	7.3 kg (16.1 lbs)
