Audio Technica AT2020USB+ Instruction Manual

7
1. Plug the free end of the USB cable into the USB port on your computer. The microphone’s blue
LED light will illuminate, indicating the mic is receiving power. Your computer will automatically
recognize the USB device and install a driver.
2. In the lower right portion of your screen you may get a message that new hardware was found;
or you may see a driver software installation notice.

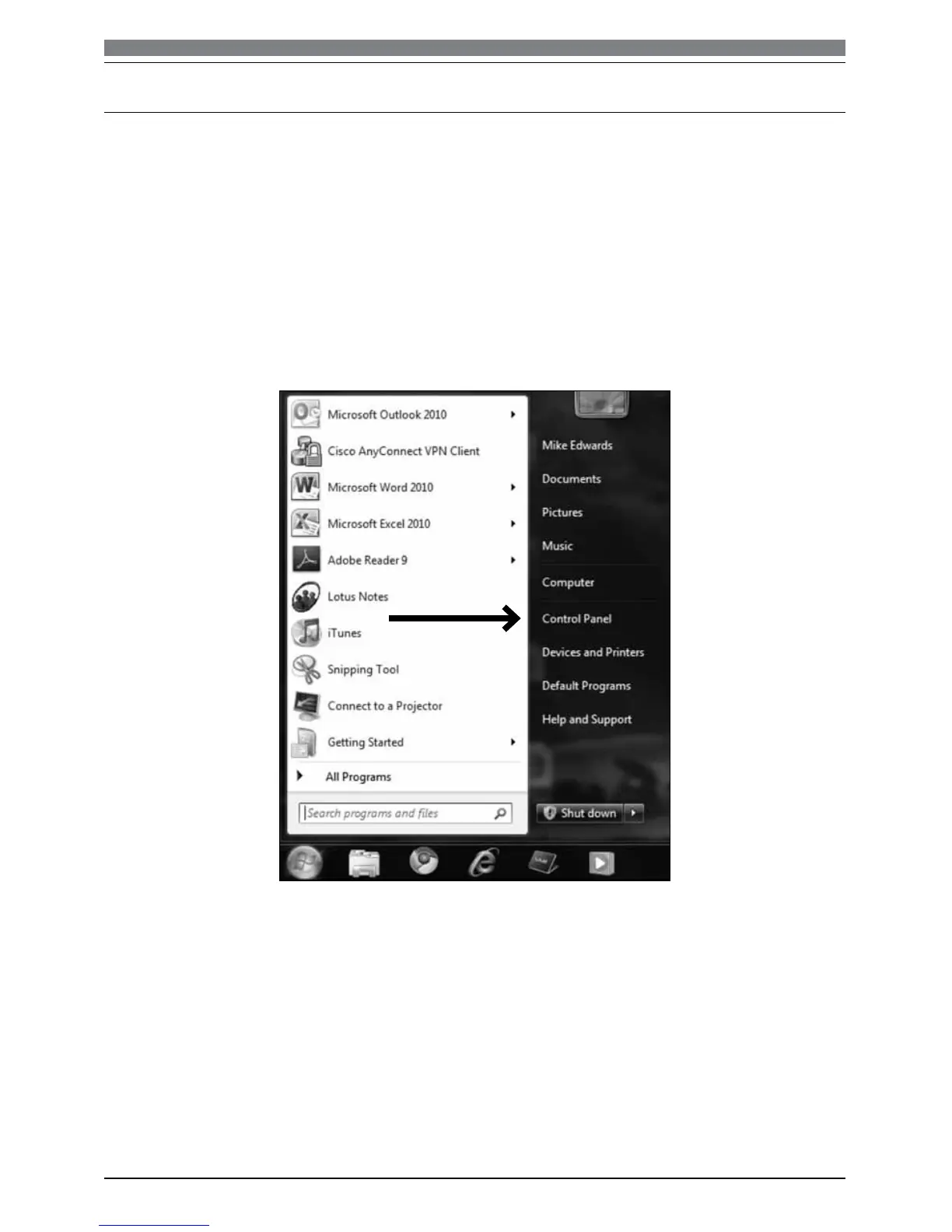

3. Start menu > Control Panel > Sound
To select the AT2020USB
+
as your default recording device, begin at your Start menu.
Select Control Panel.
Preliminary setup with Windows 7

Audio Technica AT2020USB+ Specifications

General

Type	Studio microphone
Bit rate	16 bit
Sample rate	48 kHz
Microphone frequency	20 - 20000 Hz
Microphone direction type	Cardioid
USB port	Yes
Connectivity technology	Wired
Cable length	3.1 m
Product color	Black
Number of products included	1 pc(s)
Battery operated	No

Weight and Dimensions

Microphone weight	374 g
