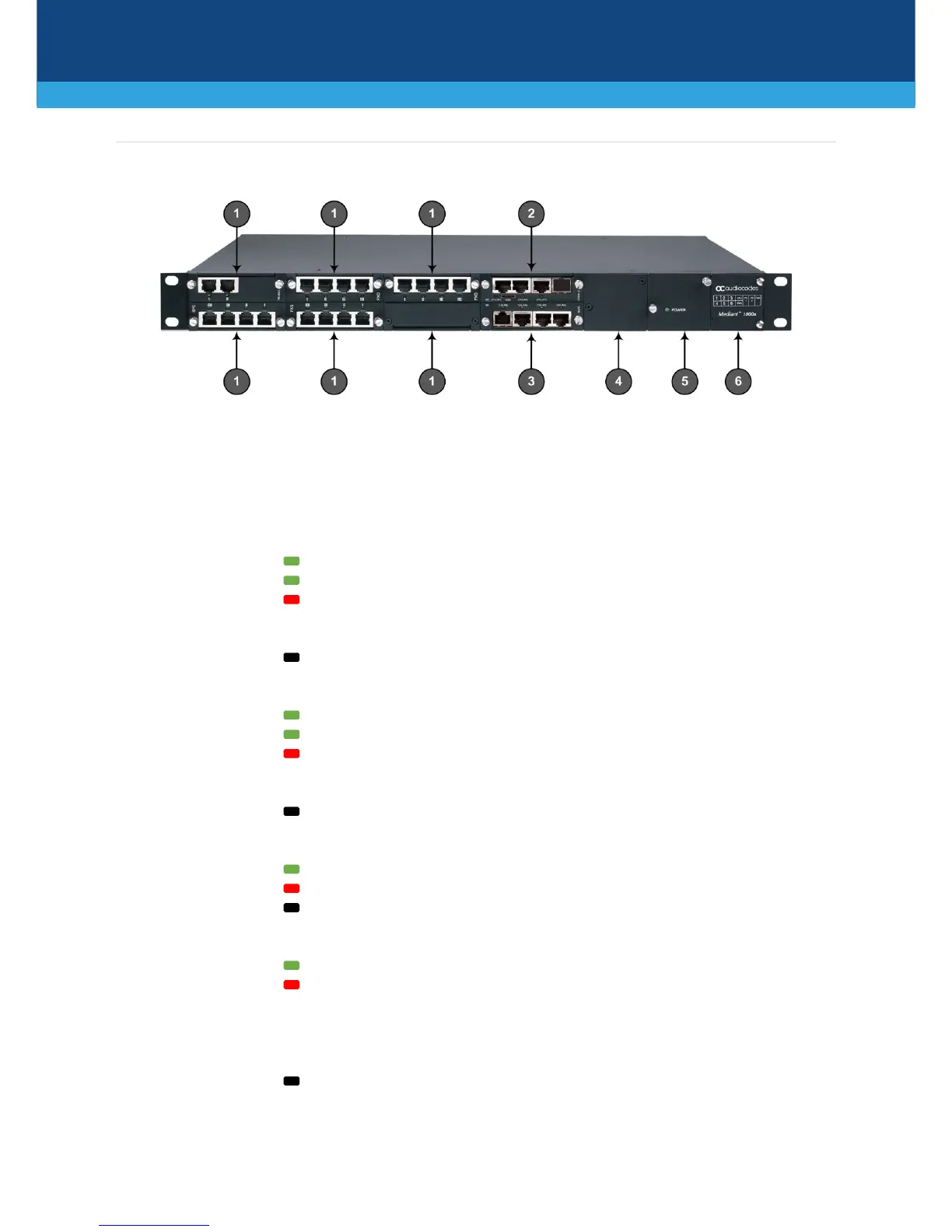

Physical Description of Front Panel
[The number and type of port interfaces depend on your ordered hardware configuration.]
1
FXS, FXO, BRI,
TRUNKS, &
MPM
Telephony port interfaces and DSP resources, which can include any one or a
combination of FXS (RJ-11), FXO (RJ-11), ISDN BRI (RJ-45), ISDN PRI (RJ-48), and
Media Processing Module (MPM) interfaces.
FXS port status LED:
Green On
Phone is in off-hook position.
Green Flashing
Phone is ringing.
Red On
Malfunction in line or out of service due to Serial
Peripheral Interface (SPI) failure.
Port is disabled.
Off
Phone is in on-hook position or no power.
FXO port status LED:
Green On
FXO line with PBX is in off-hook position.
Green Flashing
Ringing is detected from PBX.
Red On
Malfunction in line or out of service due to SPI
failure.
Port is disabled.
Off
FXO line is in on-hook position or no power.
BRI port status LED
Green On
Physical Layer 1 is synchronized (normal operation).
Red On
Physical Layer 1 is not synchronized.
Off
BRI trunk is not active.
PRI (E1/T1) port status LED:
Green On
Trunk is synchronized (normal operation).
Red On
Loss due to one of the following signals:
LOS (Loss of Signal)
LOF (Loss of Frame)
AIS (Alarm Indication Signal - Blue Alarm)
RAI (Remote Alarm Indication - Yellow Alarm)
Off
Failure or disruption in power supply or power is not
being supplied to the device through the power supply
entry.
