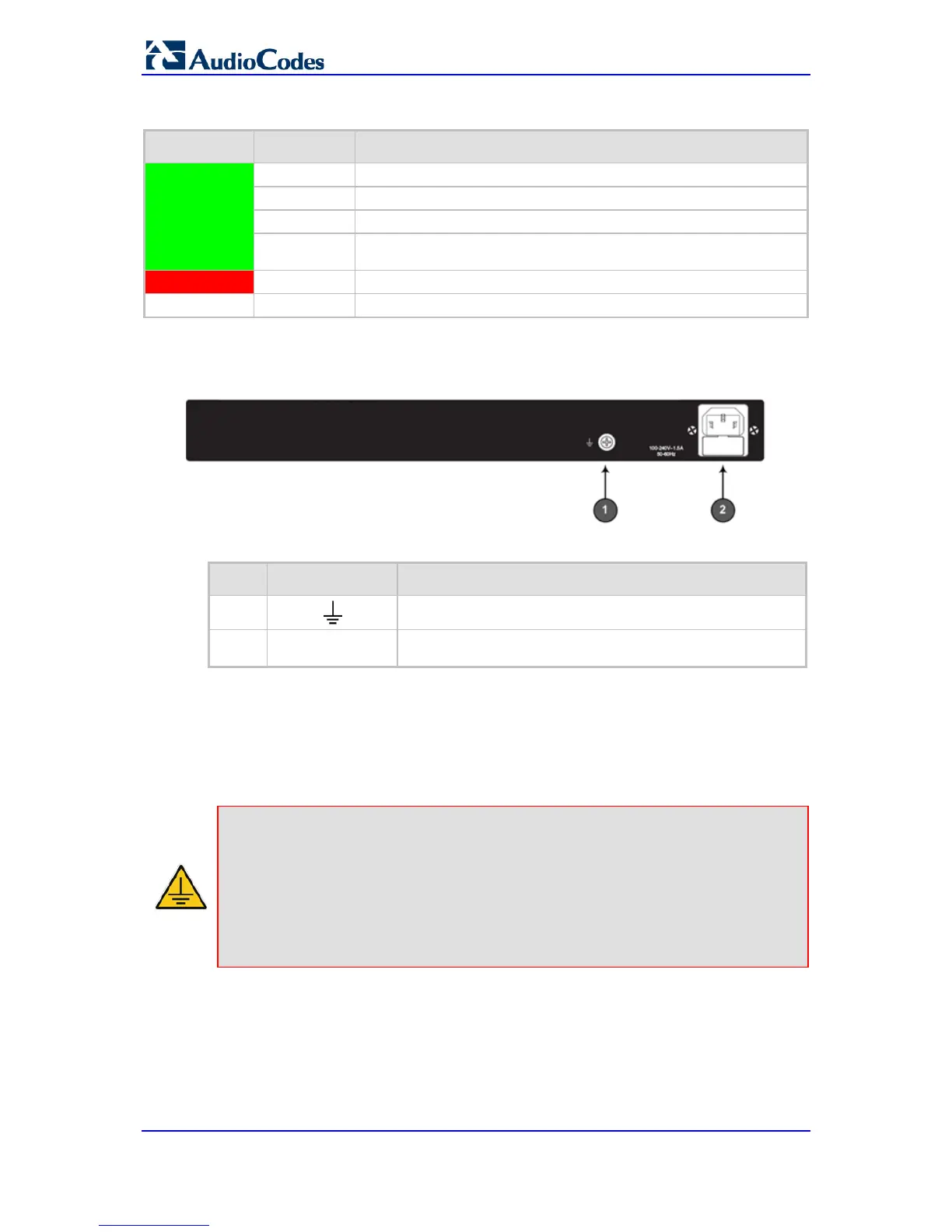

BroadCloud SIP Trunk
AudioCodes Mediant BRI/PRI Gateway 14 Document #: LTRT-12393
Table 2-10: STATUS LEDs
LED Color LED State Description
Green On The device is operational and in Standalone mode (not in High-Availability mode).
Flashing Initial rebooting stage.
Slow Flash HA mode - LED on Active device.
Slow-Fast
Flash
HA mode - LED on Redundant device.
Red On Boot failure.
Off Advanced rebooting stage.
2.3.3 Rear Panel
Figure 2-15: Rear Panel
Table 2-11: Rear Panel
Item # Label Description
1
Protective earthing screw.
2 100-240V~1.5A
50-60Hz
3-Prong AC power supply entry.
2.3.4 Cabling
2.3.4.1 Grounding the Device
The device must be connected to earth (grounded) using an equipment-earthing conductor.
Protective Earthing
The equipment is classified as Class I EN60950 and UL60950 and must be
earthed at all times.
For Finland: "Laite on liltettava suojamaadoituskoskettimilla varustettuun
pistorasiaan."
For Norway: "Apparatet rna tilkoples jordet stikkontakt."
For Sweden: "Apparaten skall anslutas till jordat uttag."
To ground the device:
1. Connect an electrically earthed strap of 16 AWG wire (minimum) to the chassis'
grounding screw (located on the rear panel), using the supplied washer.
