5 | Page

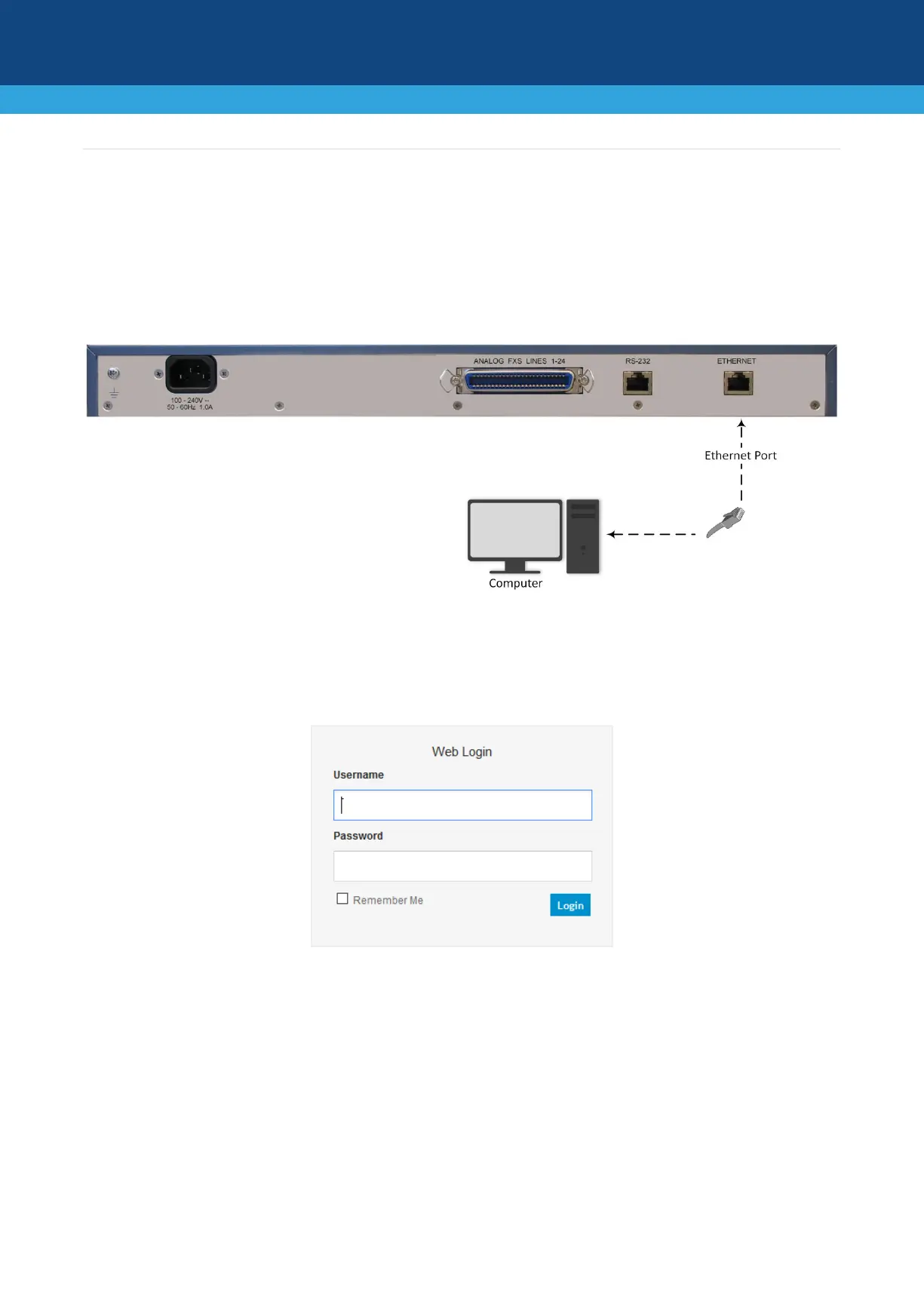

Assigning an IP Address to the Device
Use the device's factory default IP address (10.1.10.10/16 and Default Gateway 0.0.0.0) to initially access the
device's Web-based management interface and then change the IP address to suit your network's addressing
scheme for subsequent connectivity.
1. Using a crossover RJ-45 Ethernet cable, connect the device's Ethernet port that is located on the rear
panel and labeled ETHERNET, to the LAN port of your computer.
2. Change the IP address of your computer to correspond with the device's default IP address and subnet
mask.
3. On your computer, open a standard Web browser (for example, Google Chrome), and then in the URL
field, enter the device's default IP address; the Web Login screen appears:
4. Type in the default username (Admin) and password (Admin), and then click Login.
