Deployment Guide 2. RXV100 Components
Version N/A 13 RXV100
2.1.1.1 Getting Familiar with the RXV100Hub Ports

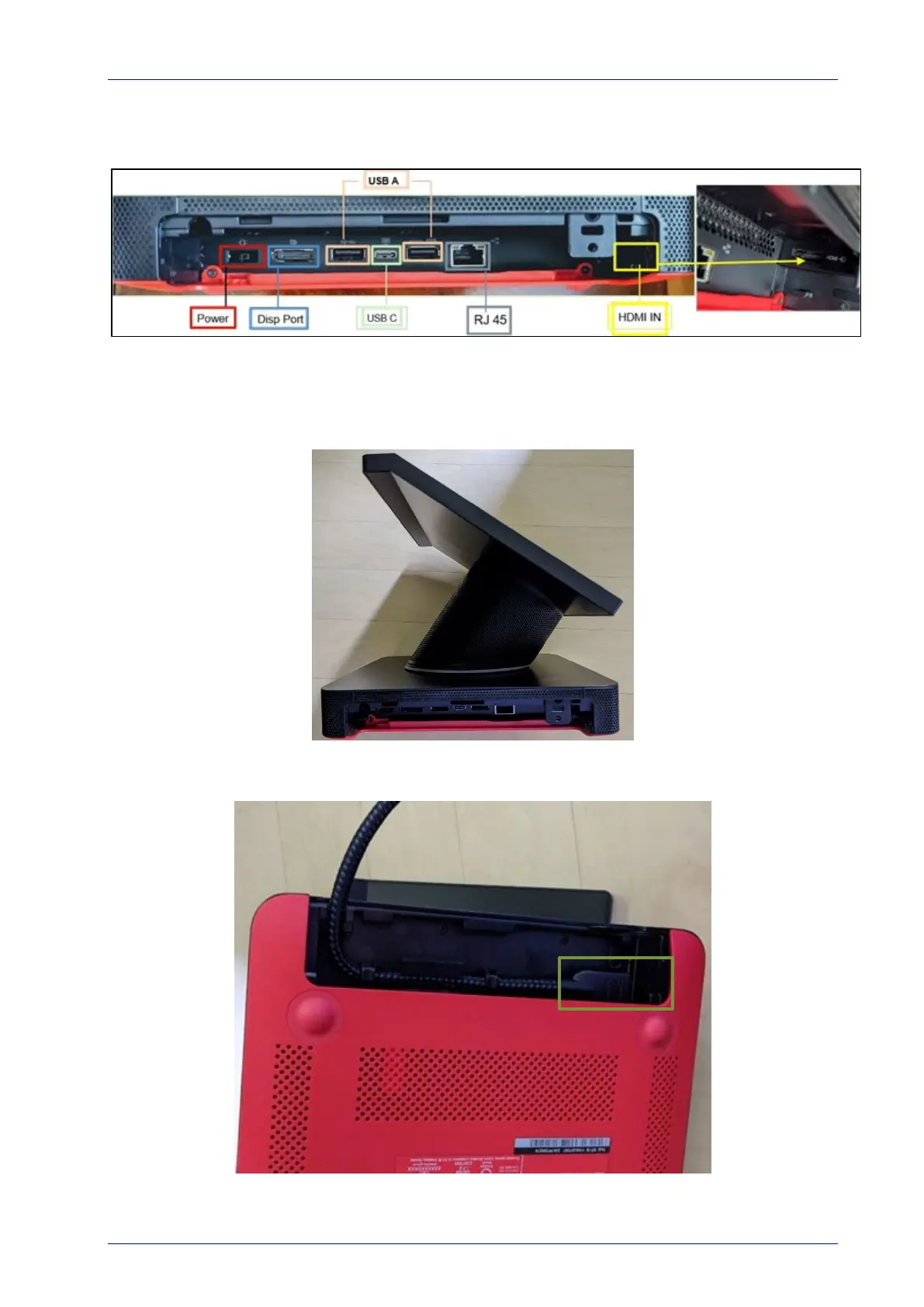

Use the figure below to familiarize yourself with the ports located on the RXV100Hub.
2.1.1.2 Connecting with One Cable the Red Side to the Hub Base
 To connect the red side to the Hub base with One Cable:
1. Lay the device on its side with the ports facing upward.
2. Insert an HDMI cable into the HDMI ingest port on the inner right sidewall of the base shown
in the figure below, lace it through the security channel and set it into the rounded notch.
