AudioEngine 5 User Manual

iPod Dock
Left (Active) Speaker
Top View
audioengine 5 setup guideaudioengine 5 setup guide6 7
Connecting Your System (continued)
Step 3– Audio Congurations
The following congurations show the most common audio setups for
Audioengine 5.

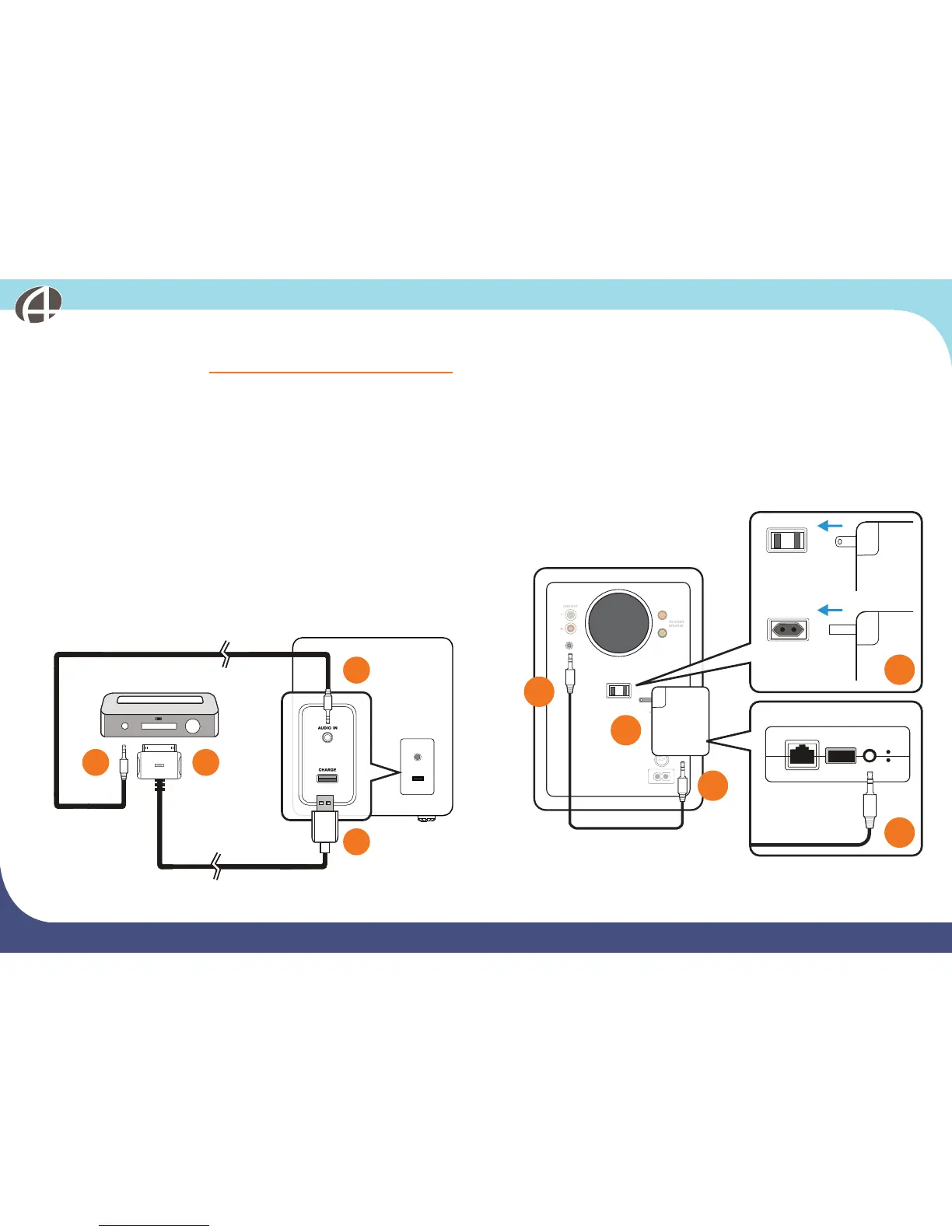

Conguration A (for use with iPod Universal Dock):
A1 Place the dock on top of the left speaker. We highly recommend using
the Apple Universal Dock with remote control.
A2 Connect the Apple 30-pin cable from the dock to USB jack on the
speaker top Combo Port.
A3 Connect one of the included 1/8” mini-jack audio cables from the dock
to AUDIO IN jack on the top Combo Port.
A4 Turn rear panel power switch ON and verify that the blue LED lights up
on the speaker front panel.
Insert your iPod and set volumes on the front panel and iPod as desired.
LINE OUT
TO RIGHT
SPEAKER
AUX OUTLET
POWER ON/OFF
AC SELECT
AUDIO IN
L
R
115
3 2
3
3
1
2
US Version
EU Version
1
2
2
Conguration B (for use with Airport Express and iTunes):
B1 Plug one end of the short 1/8" audio cables into your Airport Express
audio output.
B2 Plug Airport Express into the AUX OUTLET on the left speaker rear
panel.
B3. Plug the other end of the 1/8" audio cable into AUDIO IN jack in rear of
left speaker.
B4 Select Airport Express from iTunes on your computer and set volume
levels as desired.
