AudioEngine B2 Premium User Manual

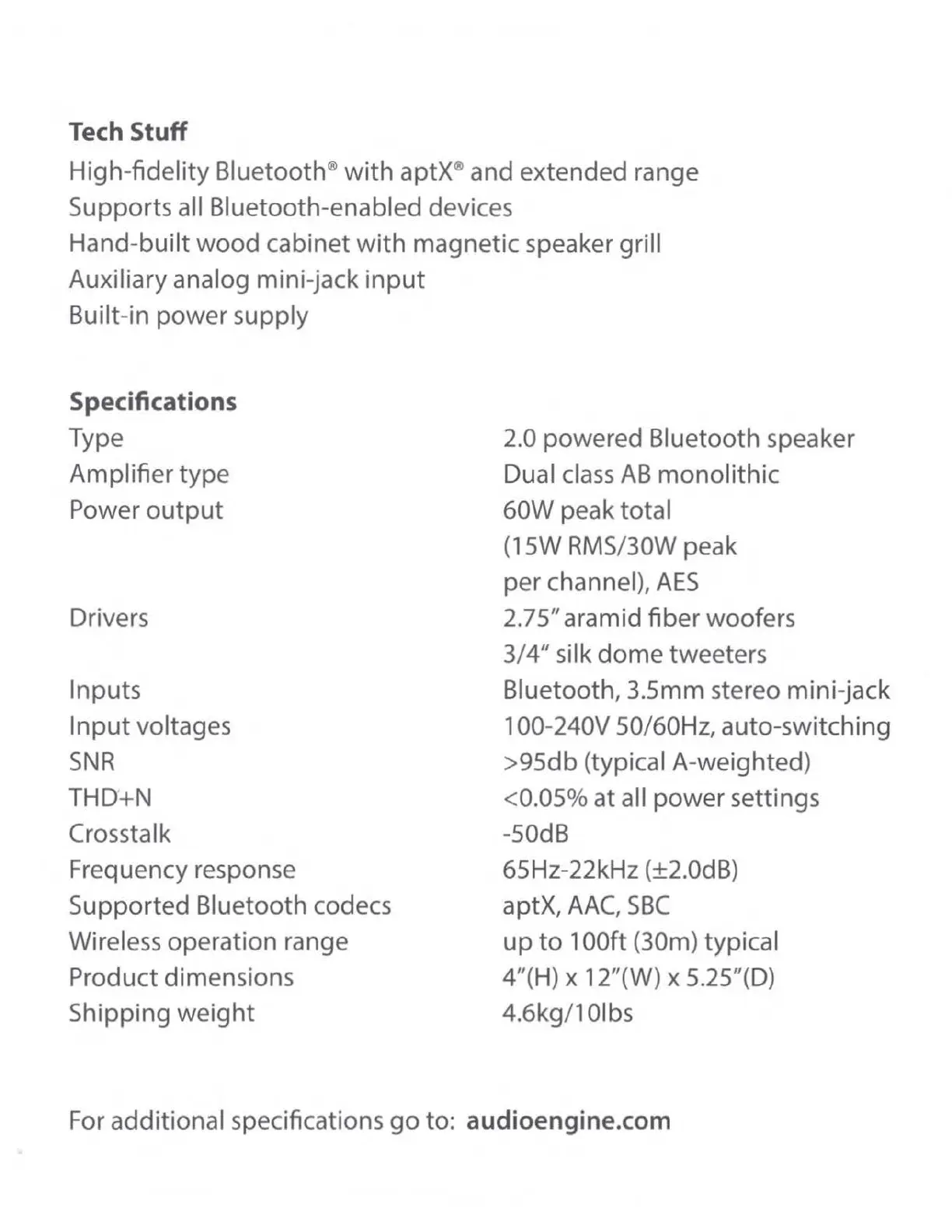

Tech Stuff
High- fidelity Bluetooth® with aptX® and extended range
Supports all Bluetooth-enabled devices
Hand- built wood cabinet with magnetic speaker grill
Auxiliary analog mini -jack input
Built-in power supply
Specifications
Type
Amplifier type
Power output
Drivers
Inputs
Input voltages
SNR
THD+N
Crosstalk
Frequency response
Supported Bluetooth codecs
Wireless operation range
Product dimensions
Shipping weight
2.0 powered Bluetooth speaker
Dual class AB monolithic
60W peak tota I
(15W RMS /30W peak
per channel), AES
2.75" aramid fiber woofers
3/ 4" silk dome tweeters
Bluetooth, 3. 5mm stereo mini -jack
100-240V 50/60Hz, auto-switching
> 95db (typical A-weighted)
<0.05% at all power settings
-50dB
65Hz-22kHz (+2.0dB)
aptX, AAC, SBC
up to 100ft (30m) typical
4"(H) X l 2"(W) x 5.25"(0)
4.6kg/ 1 01 bs
For additional specifications go to: audioengine.com

AudioEngine B2 Premium Specifications

General

Amplifier class	A/B
Impedance	10 Ω
Frequency range	65 - 22000 Hz
RMS rated power	30 W
Signal-to-Noise Ratio (SNR)	95 dB
Peak Music Power Output (PMPO)	60 W
Total Harmonic Distortion (THD)	0.05 %
Tweeter	Yes
Speaker type	-
Number of drivers	1
Speaker placement	Tabletop/bookshelf
Audio output channels	1.0 channels
Tweeter diameter (imperial)	0.75 \
Subwoofer driver diameter (imperial)	2.75 \
Product color	Wood
Recommended usage	Universal
Bluetooth range	30 m
Connectivity technology	Wired
Package depth	190.5 mm
Package width	406.4 mm
Package height	266.7 mm
Package weight	4600 g
Storage temperature (T-T)	-20 - 46 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	AC, Audio (3.5mm)

Weight and Dimensions

Depth	139.7 mm
Width	311.15 mm
Height	107.95 mm
Weight	- g
