12V Trigger Connection
Page 8

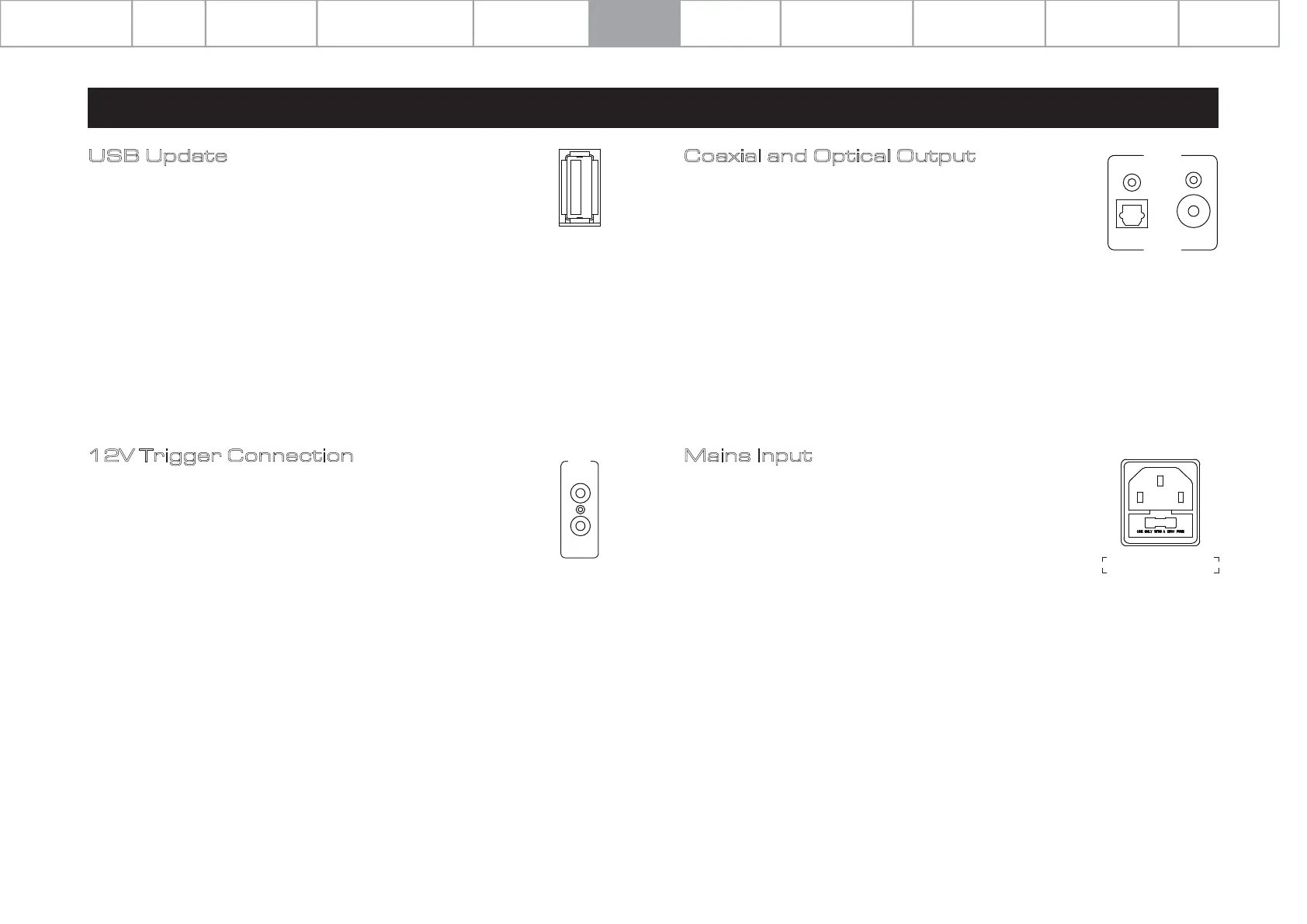

6: Connections
Coaxial and Optical Output
The 7000CDT offers one Coaxial and one Optical SPDIF digital
output. Connect a suitable Digital Coaxial (fully screened)
interconnect or Optical cable from the appropriate SPDIF
output of the 7000CDT to the input of a DAC or digital input on
your chosen amplifier or preamplifier.
Mains Input
Before connecting the AC power cord to the 7000CDT, please
make sure the Power Switch is in the OFF position. Switch it to
the ON position after connecting the unit to the AC mains.
The 7000CDT features two 12V trigger connections on the rear
panel. One is input from your amplifier, and the other is a link that
can be used as an output to connect to other products such as the
wider 7000 series models. For the Audiolab 7000 series, this will be a
3.5mm to 3.5mm interconnect.
USB Update
Any official Audiolab update will be provided by download from
audiolab.co.uk
Please read and follow any instructions provided with any such
download.
POWER OFF the 7000CDT unit. Insert the USB storage device, onto
which the USB update files have been loaded. Press the 'STANDBY'
button on the front panel then simultaneously POWER ON, your
7000CDT will upgrade automatically. Wait for the device display to
confirm that the update is completed. Then, unplug the USB drive
and restart the 7000CDT. The unit is now ready to use.
FUSE T630mA 250V
AC 220-240V～50/60Hz 22W
LINK
IN
12V
TRIG
DIGITAL
COAX
OUTPUT
OPT
