Audionet WATT - 3 Overview Back Panel

8

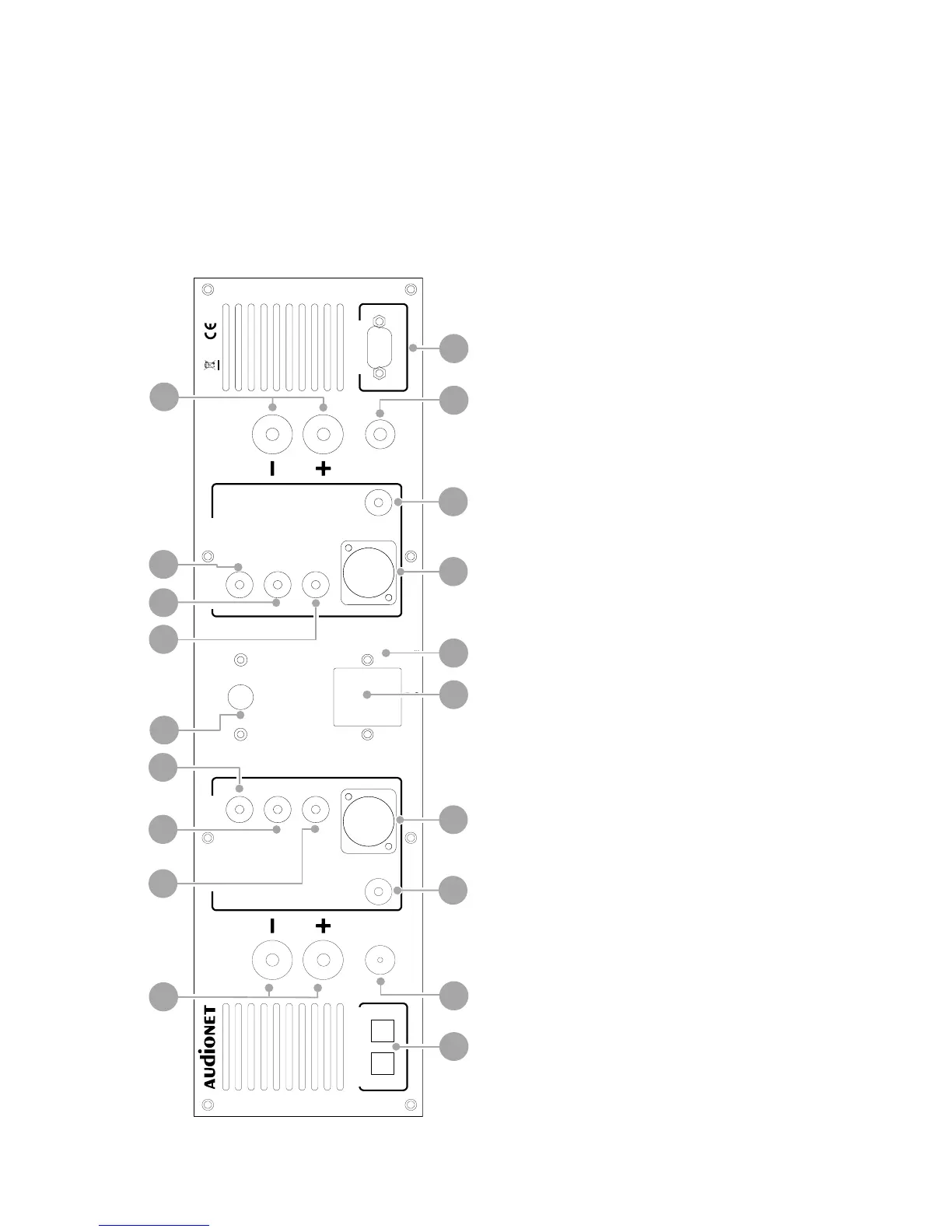

3 Overview back panel
1 Speaker output right channel 2
Cinch input no. 2, right channel
3
Cinch input no. 3, right channel
4
Cinch input no. 4, right channel (optional Phono)
5
Mains input and fuse compartment
6
Marking mains phase
7
Cinch input no. 2, left channel
8
Cinch input no. 3, left channel
9
Cinch input no. 4, left channel (optional Phono)
10
Speaker output left channel
11 Control input RS232
12 Additional earth connection 13 Preamplifier output PRE OUT, left channel, Cinch 14 Balanced input (XLR) no. 1, left channel 15 Headphones output 16 Balanced input (XLR) no. 1, right channel 17 Preamplifier output PRE OUT, right channel, Cinch 18 Earth connection for phono 19 Audionet Link outputs OUT 1 and OUT 2
