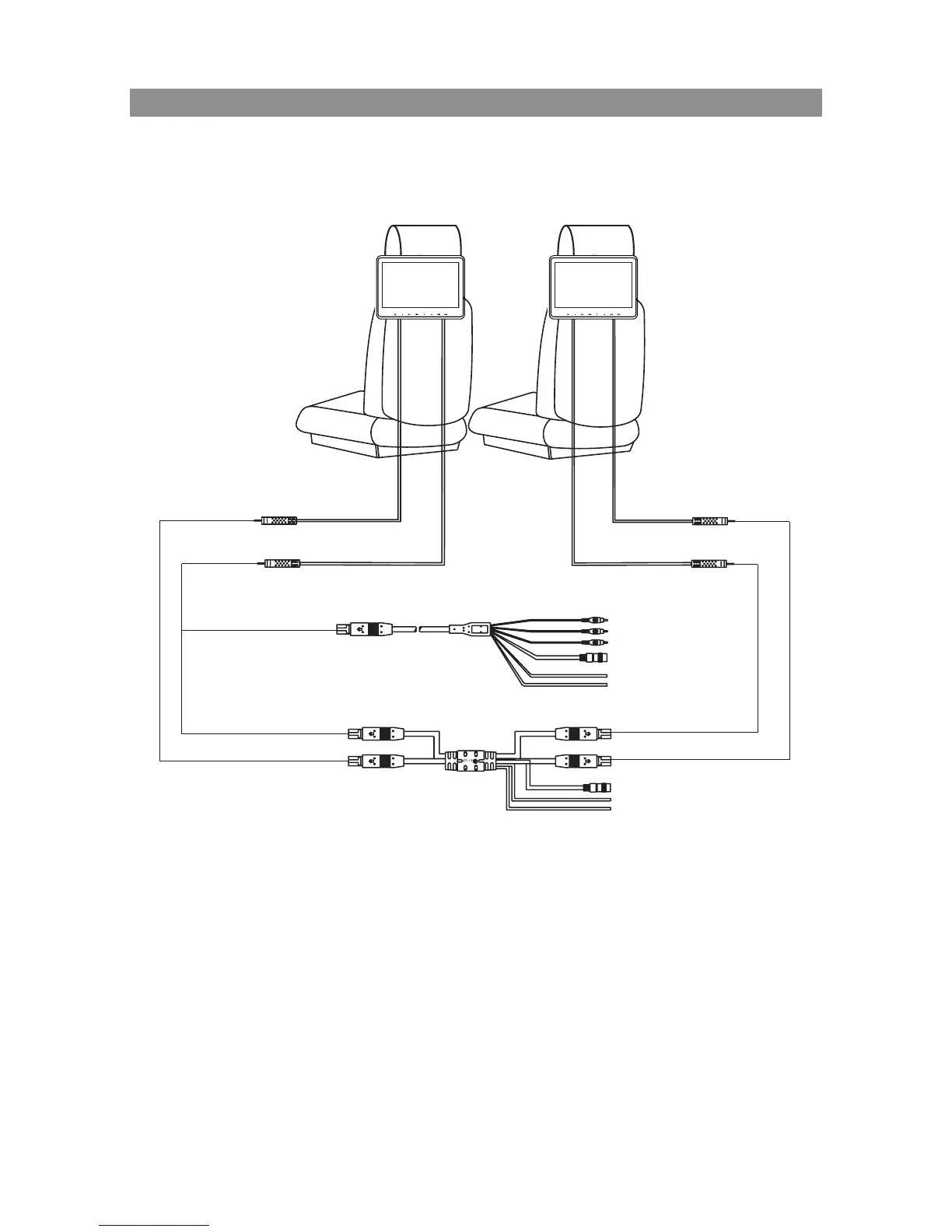

Wiring Diagram
NOTE:Please DO NOT use incorrect wrong cable harness on the monitor system
because user will
loos some function if install incorrectly.
For single monitor please use the 8P Din + AV Connector Harness( built
with AV input connector).
For Dual monitor please use the 8P Din M1 + M2 Connector Harness.
Master Monitor Satellite Monitor
Headrest Cable
Blue
8P Din + AV Connector Harness
Green
Green
Blue
Green
Ground
Headrest Cable
Blue
Headrest Cable
Green
Headrest Cable
Green
Video In Yellow
Audio In Left White
Audio In Right Red
Or
8P Din M1+M2 Connector Harness
DC 12V In
+12V(ACC)
Ground
DC 12V In
+12V(ACC)
