3. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. Follow the wiring
diagram carefully and make certain all connections are secure and insulated with wire nuts or electrical tape. After completing
the wiring connections, plug the ISO connectors into the mating sockets on the rear of the chassis. Turn the unit on to conrm
operation (vehicle ignition switch must be “on”). If the unit does not operate, re-check all wiring until the problem is corrected.
4. Mount the new radio assembly to the dashboard or center console using the reverse procedure in step 1.
CAUTION! Be careful not to damage the car wiring.
NOTE: It is the end-users responsibility to install and operate this unit in a manner in accordance with local, state and
federal laws. The PARKING BRAKE wire MUST BE CONNECTED as directed in the manual.
CAUTION! Do not block the cooling fan exit. If blocked, the unit may overheat and become damaged.

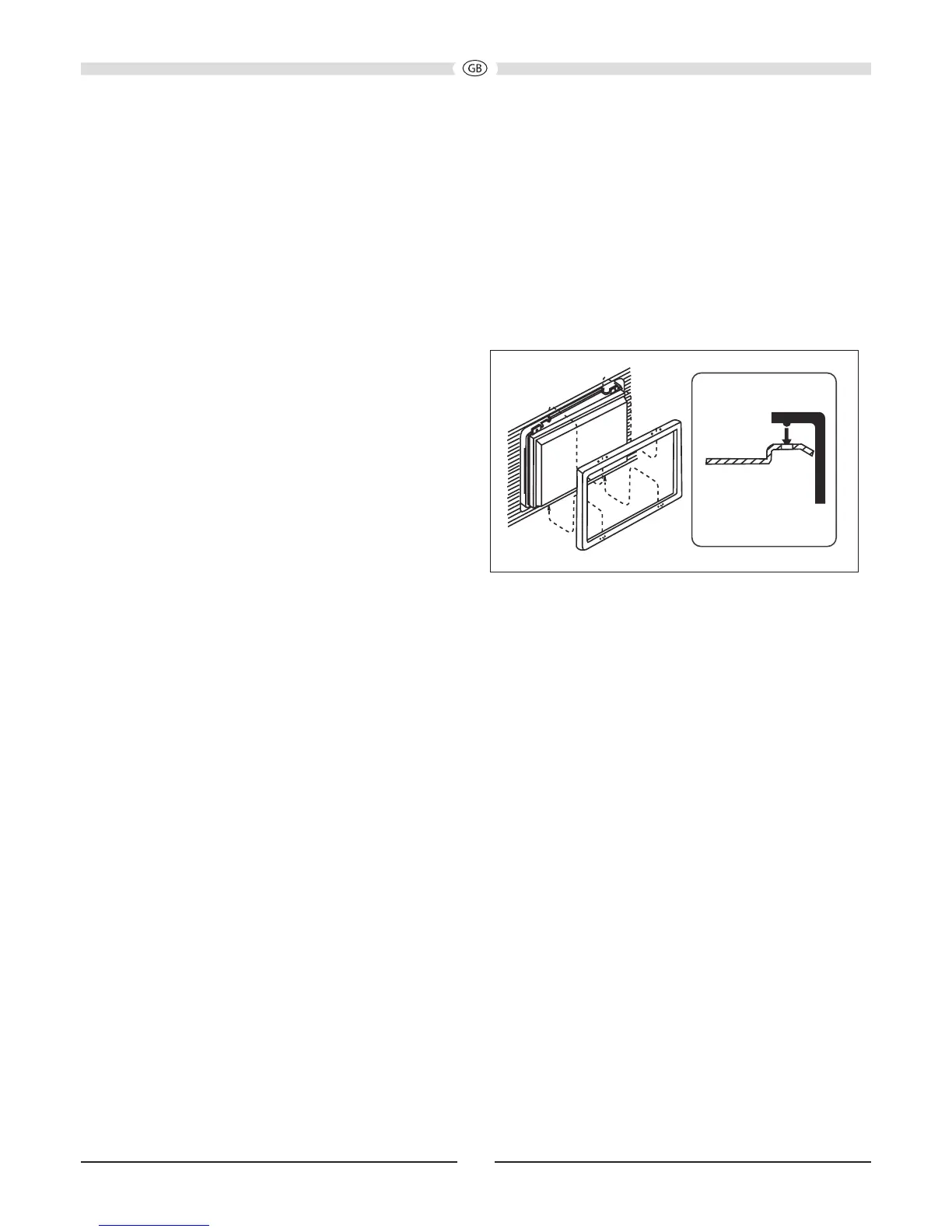

Using the Cosmetic Trim Ring
A cosmetic trim ring is packaged with the head unit for installation
exibility. This unit will t into most import dashes with little or no
modication to the dash board/cavity. Some US domestic vehicle
dashes will accept a Double-DIN chassis, but there is usually a
small gap between the radio and dash piece after installation is
complete. In this case, use the appropriate trim ring to conceal any
gaps that may be present.
NOTE: For proper operation of the CD/DVD player, the chassis
must be mounted within 30° of horizontal. Make sure the unit is
mounted within this limitation.
