Pull
up
B) A)
Amp ON
ON
ON
Amp OFF
OFF
OFF
Speaker cables
Speaker cables
Services
Power Supply
cables
Note
Note
52 53
The Universal Sound
LRx 3.1MT
LRx 5.1MT
Owner’s manual
I

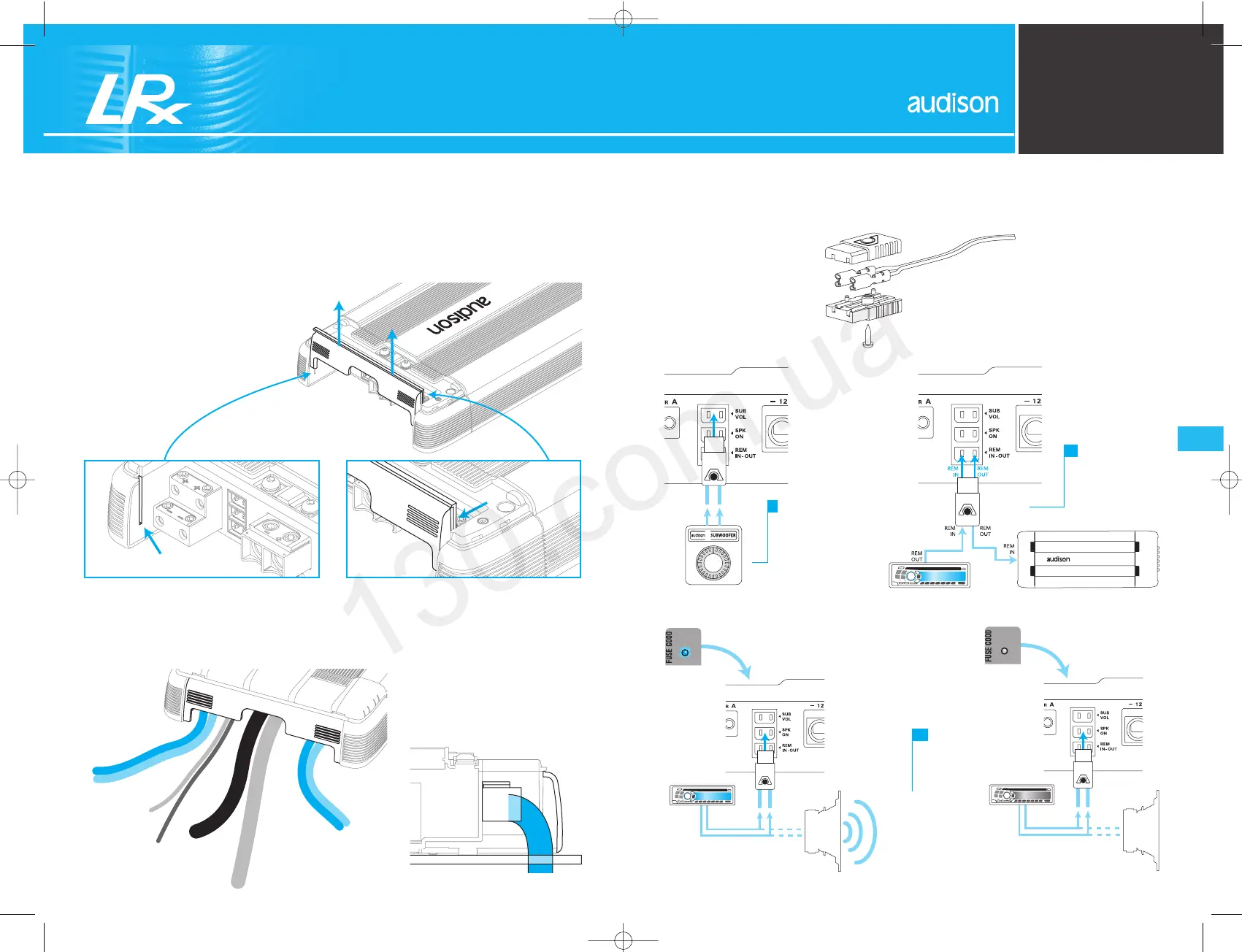

How to change the plate
Two plates are supplied with the amplifier. One is formed for exposed cable routing; the other, with
the Audison logo, is closed for protecting and hiding the cables.
When you need to reassemble the plate,
match the tongue in pict. A and
the location in pict. B.
I
Examples of how to use the plates
Power supply terminals are designed in order to allow mounting also with closed plate.
A special milling on the terminal enables the cable jacket to bend naturally.
If the amplifier is fixed to a panel,
the given template tells you where
to drill holes for running the cables.
I
How to mount fast-on taker connectors
I
Other functions
11 Remote IN-OUT
10 Speaker ON
9 Service: SUB VOL
The external control
can be connected
in any way to the
SUB VOL socket.
