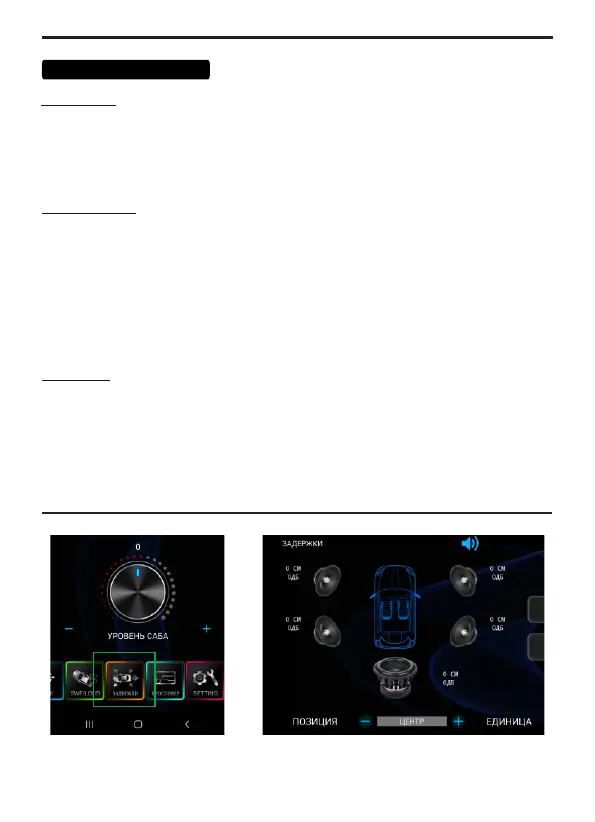

9
3-WAY (Network)
Tweeter - HPF setting for tweeters.
HP FRQ - Cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 /3.15 / 4 / 5 / 6.3 /
8 / 10 / 12.5 kHz.
SLOPE - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
PHASE - electrical phase switching: 0° / 180°
GAIN - volume level of the tweeters, from -8 dB to 0 dB.
Mid range - adjusting the high-pass filter (HPF) and low-pass filter (LPF) of
the midrange speakers
HPF FRQ - HPF cutoff frequency: THROUGH (off) / 30 / 40 / 50 / 60 / 70 / 80 / 90 /
100 / 120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz.
HPF SLOPE - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
LPF FRQ - cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 / 3.15 / 4 / 5 / 6.3 /
8 / 10 / 12.5 kHz / THROUGH (off).
PHASE - electrical phase switching: 0° / 180°
LPF SLOPE - the slope of the LPF slope (LPF): 6 / 12 / 18 / 24 dB / oct.
GAIN - the volume level of the midrange speakers, from -8 dB to 0 dB.
Woofer - low-pass filter (LPF) and subwoofer phase adjustment
LPF FRQ - cutoff frequency: 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 /
120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz THROUGH (off).
SLOPE - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
PHASE - electrical phase switching: 0° / 180°
GAIN - subwoofer volume level, from -8 dB to 0 dB.
X-OVER
DTA SETTING
