AURATON 2025 RTH - AURATON RTH Receiver Wiring

28

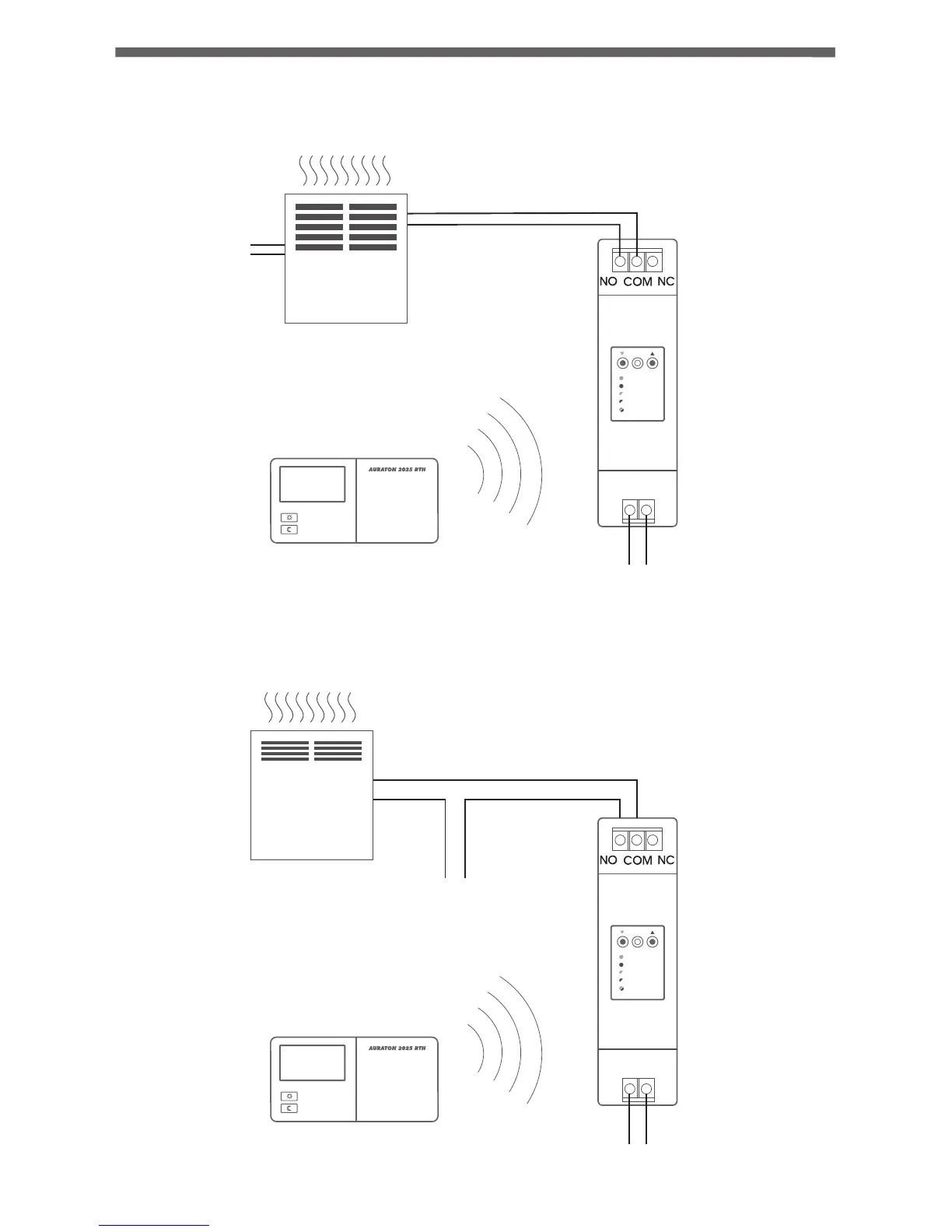

The AURATON RTH receiver connection schematics
Technical specifications
Working temperature range: 0 – 45°C
Temperature measurement range: 5 – 30°C
Span: ±0,2°C
Temperature levels: 3 + vacation
Antifreeze temperature: 4 – 10°C
Working cycles: weekly, programmable
Working mode control: LED (the RTH receiver) / LCD (the regulator)
Maximum load: AURATON 2025 ~ 8
AURATON RTH ~ 16A 250V AC
Power supply: AURATON 2025
2x AA alkaline battery
AURATON 2025 RTH
RTH power supply: 230V AC, 50Hz
RTH radio frequency: 868MHz
RTH Operation range: in a typical building, with standard construction
of walls - approx. 30 m
an open space - up to 300 m
A 250V AC (inductive 5A)
Disposing of the devices
The devices are marked with the crossed waste bin symbol. According
to European Directive no. 2002/96/EU and the Act concerning used
up electric and electronic equipment, such a marking indicates that
this equipment may not be placed with other household generated waste.
The user is responsible for delivering the devices to a reception point
for used-up electric and electronic equipment.
29
AURATON 2025 RTH
AURATON RTH
OFF
ON
IN
OUT
ALARM
RESET
230V AC
~
L N
control
230V
~
power
AURATON 2025 RTH
AURATON RTH
OFF
ON
IN
OUT
ALARM
RESET
230V AC
~
L N
L
N
L
N
Max. 230V
~
16 A
Max. 230V
~
electric
heating
device
heating
device
e.g. a gas furnace
