Fastening the temperature regulator to the wall
1.Drill two holes 6 mm in diameter in the wall (use the template attached
to the manual to mark the spacing between these holes).
2.Insert plastic wall plugs (included in the kit).
3.Screw in the left screw with a 3 mm clearance.

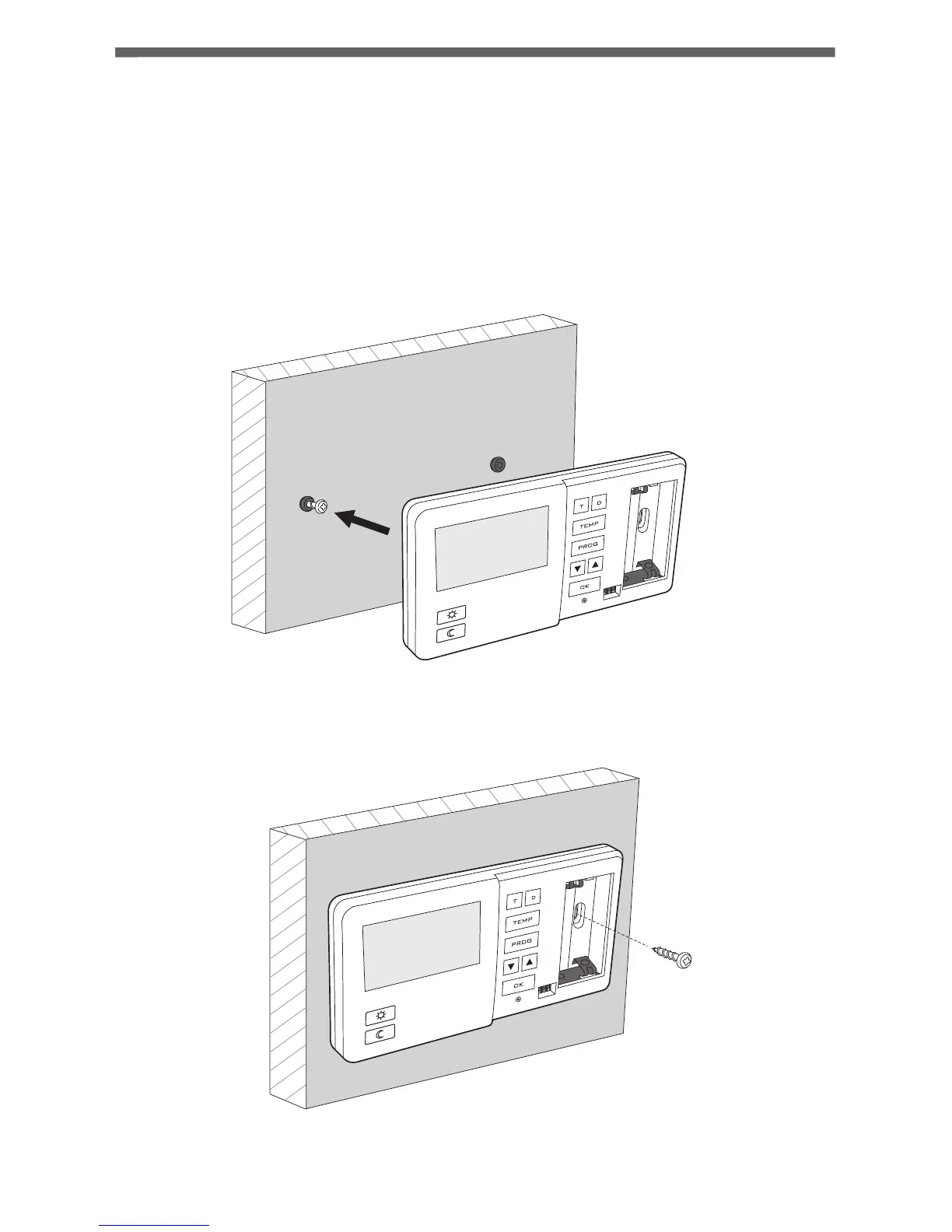

4.Put the regulator over the screw head and slide it to the left (pay attention
to the key-hole in the rear wall of the regulator).
NOTE: If the wall is wooden, there is no need to use wall plugs. In such a case,
drill two holes 2.7 mm in diameter instead of 6 mm, and screw the
screws directly into the wood.
5.Screw in the right screw, making sure it holds the regulator securely.
Connecting cables to AURATON 2025
Proper operation of the regulator is greatly affected by its location. Installing
it in a place with no air circulation or exposed to direct sunlight causes
improper regulation of temperature. In order to ensure proper operation,
the regulator must be installed on an interior wall of a building (partition
wall). A place should be selected that is occupied most frequently, providing
undisturbed circulation of air. Avoid heat radiating devices (television set,
heater, refrigerator etc.) or places exposed to direct sunlight. In order to avoid
vibration, do not place the regulator in close vicinity of doors.
Selecting the proper location for the
AURATON 2025 / 2025 RTH temperature regulator
Cable terminals are located on the rear wall of the regulator. This is a typical
Single Pole Double Throw relay. In the majority of applications the NC
terminal is unused.
COM
NO
NC
