AURATON 3003 - Wiring Terminals and Battery Installation; Understanding Terminal Connections; Installing and Replacing Batteries

9
lead terminals
3.
NO COM
NC
lead
terminals
NC
COM
NO
It is a typical single-pole two-state relay. In most cases, the NC
terminal is not used.
NOTE: After connecting the leads replace the plastic cover.
cover
Installing/replacing batteries
The battery compartment is located inside the controller, in the
front part of the enclosure. To place the batteries remove the front
panel as shown in the section ”Connecting the leads to
AURATON 3003”.
8

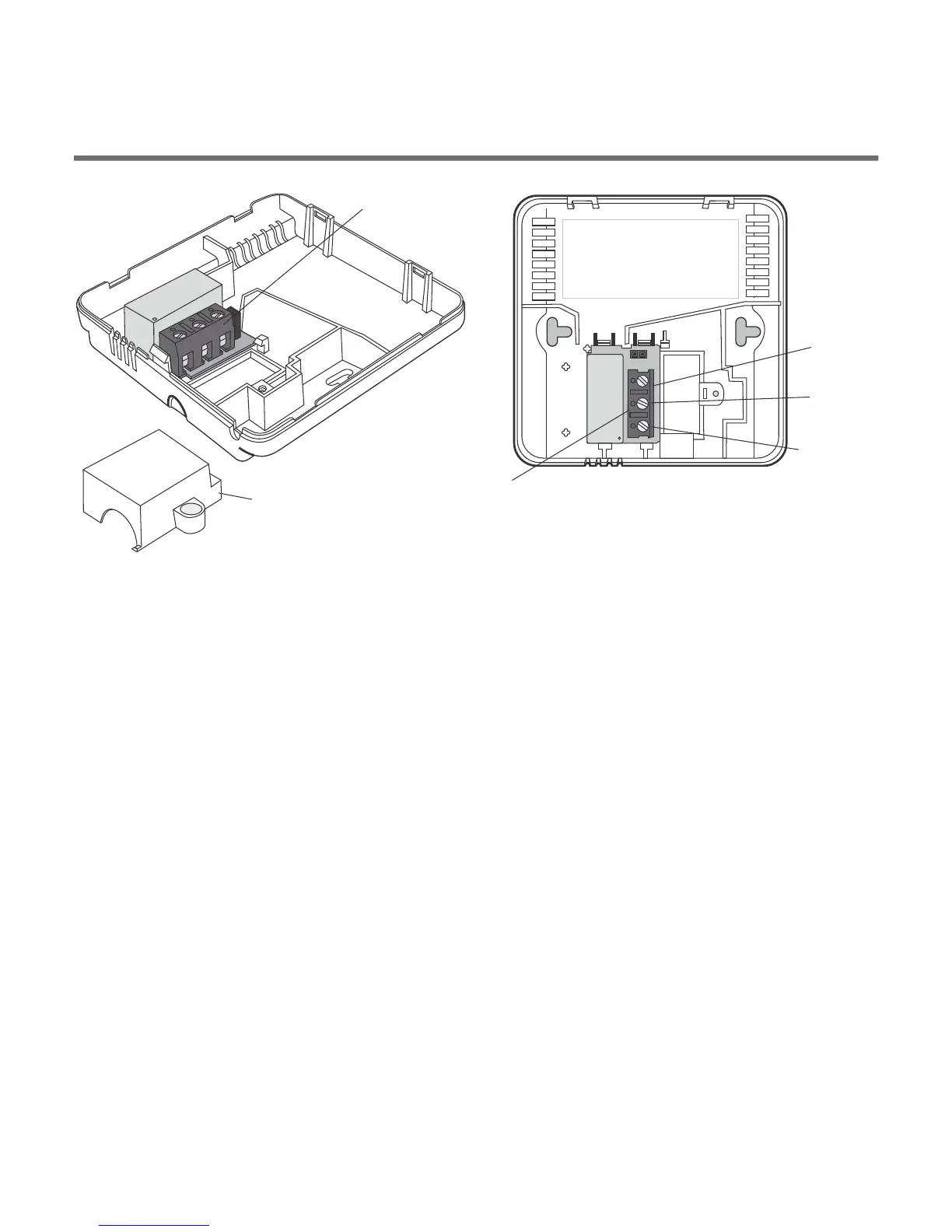

Connecting the leads to AURATON 3003
To connect the leads remove the front panel as shown below:
1.
2.
The lead terminals are on the controller's back wall, under the
plastic cover.
cover
screw
1.
2.
1.
2.
