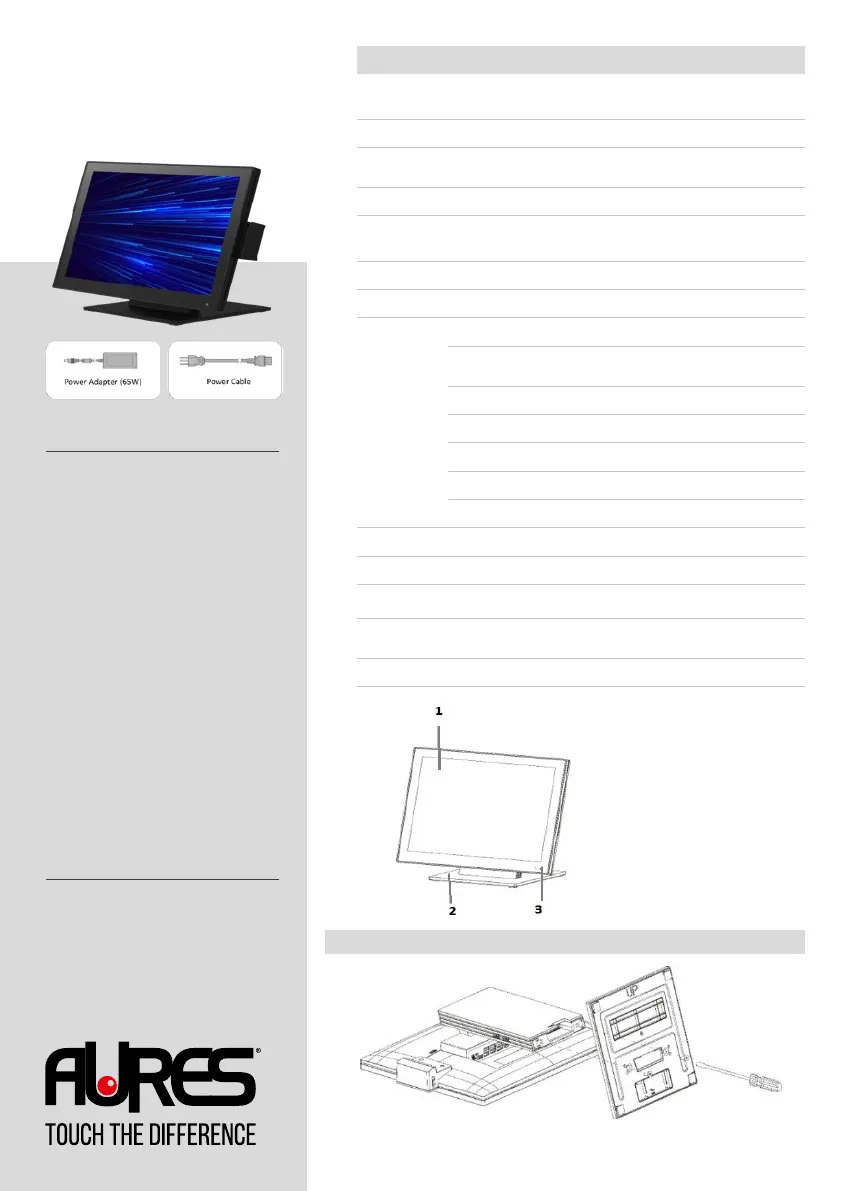

TRX 3000 Guide
de démarrage rapide
REL1.1 October22
Modèle TRX3000-151B TRX3000-156B
Processeur
Intel
®
Elkhart Lake J6412 (2.0 GHz)
Processeur Quad-Core
Stockage M.2 2242 Nvme SSD X2 & SATA
Mémoire
1 x SO-DIMM DDR4-3733
SDRAM 4Go et 8Go
Graphique Intel HD Graphics
LCD
15” TFT LCD résolution
1024 x 768
15,6” TFT LCD
résolution 1366 x 768
Dalle tactile PCAP (capacitive projetée)
TPM TPM 2.0
Entrées/
sorties
externes
USB-A 6 x ports ( 2 x USB 3.0 et 4 x USB 2.0)
RS-232
Sortie alimentation
COM1, COM2, COM3 avec DTR/12V
LAN Gigabit LAN (10/100/1000M BASET LAN)
Audio HD Audio
USB-C Supporte ALT DP / USB 3.0
Mini DP MINI-DP(DP+COM5)
Tiroir-caisse Connecteur RJ 12 auto alimenté
Haut Parleur intégré
Alimentation Adaptateur 12V/5A
Système d'exploitation
compatible
Windows 10 64bit
Température de
fonctionnement
0°C ~ 40°C à taux d'humidité 10% ~ 80%
Température de stockage -20°C ~ 60°C à taux d'humidité 10% ~ 80%
This equipment has been tested and
2)Connect all the cables to the relevant I/O
electrical Power Supply, remove
the power cable plug from the wall
socket. The wall socket must be easily
accessible and in close proximity to
the product.
Read these instructions carefully. Save
these instructions for future reference.
Follow all warnings and instructions
marked on the product.
Do not use this product near water.
Do not place this product on an unstable
cart, stand, or table. The product
may fall, causing serious damage to
the product.
Only use power supply unit and cables
released by AURES.
Do not allow anything to rest on the
power cord. Do not locate this product
where persons will walk on the cord.
Never spill liquid of any kind on the
product.
Ensure that the device connects to
a socket/outlet with ground/earth
connection.
WEEE NOTICE
The WEEE mark applies only to countries
within the European Union (EU)
and Norway.
This appliance is labeled in accordance
with European Directive 2012/19/
EU concerning waste electrical and
electronic equipment (WEEE). The
Directive determines the framework
for the return and recycling of used
appliances as applicable throughout
the European Union. This label is
applied to various products to indicate
that the product is not to be thrown
away, but rather reclaimed upon end
of life per this Directive.
CE NOTICE
This device complies with EMC
Directive 2014/30/EU and “Low
Voltage Directive” 2014/35/EU issued
by the Commission of the European
Community.
1)Screw-on the two screws at the bottom of
the stand (M6 x 12L)
1. Ecran
2. Socle
3. Bouton Marche/Arrêt
Dimensions
15’’ : 350 x 303 x200 mm
15,6’’ : 385 x 283 x 200 mm
Procédure d’assemblage
This equipment has been tested and
2)Connect all the cables to the relevant I/O
electrical Power Supply, remove
the power cable plug from the wall
socket. The wall socket must be easily
accessible and in close proximity to
the product.
Read these instructions carefully. Save
these instructions for future reference.
Follow all warnings and instructions
marked on the product.
Do not use this product near water.
Do not place this product on an unstable
cart, stand, or table. The product
may fall, causing serious damage to
the product.
Only use power supply unit and cables
released by AURES.
Do not allow anything to rest on the
power cord. Do not locate this product
where persons will walk on the cord.
Never spill liquid of any kind on the
product.
Ensure that the device connects to
a socket/outlet with ground/earth
connection.
WEEE NOTICE
The WEEE mark applies only to countries
within the European Union (EU)
and Norway.
This appliance is labeled in accordance
with European Directive 2012/19/
EU concerning waste electrical and
electronic equipment (WEEE). The
Directive determines the framework
for the return and recycling of used
appliances as applicable throughout
the European Union. This label is
applied to various products to indicate
that the product is not to be thrown
away, but rather reclaimed upon end
of life per this Directive.
CE NOTICE
This device complies with EMC
Directive 2014/30/EU and “Low
Voltage Directive” 2014/35/EU issued
by the Commission of the European
Community.
1)Screw-on the two screws at the bottom of
the stand (M6 x 12L)
1. Fixer les deux vis sur le socle du stand (M6 x 12L)
INSTRUCTIONS DE SÉCURITÉ
Pour déconnecter le produit de l’ali-
mentation électrique, retirez la che du
câble d’alimentation de la prise murale.
La prise murale doit être facilement
accessible et à proximité immédiate du
produit. Lisez attentivement ces instruc-
tions. Conservez ces instructions pour
référence future.
Suivez tous les avertissements et instruc-
tions marqués sur le produit.
Ne pas utiliser ce produit près de l’eau.
Ne placez pas ce produit sur un chariot,
un support ou une table instable. Le
produit peut tomber et endommager
gravement le produit.
N’utiliser que le bloc d’alimentation et les
câbles homologués par AURES.
Ne laissez rien reposer sur le cordon
d’alimentation. Ne placez pas ce produit à
un endroit où des personnes marcheront
sur le cordon.
Ne jamais renverser un liquide quel-
conque sur le produit.
Assurez-vous que l’appareil se connecte à
une prise/prise avec mise à la terre/terre.
CE NOTICE
Cet appareil est conforme à la directive
CEM 2014/30 / UE et à la
«directive basse tension» 2014/35 / UE
émise par la Commission de la Commu-
nauté européenne.
