Transfer box oil level (fig. 1, 2).
Checking
- To check the oil level unscrew the cap (b)
Draining
- To drain the oil, unscrew the plug (c) located on the lower part.
Topping up
- Top up with the specified oil through the filler cap (a) located on the upper part.
See the FLUIDS AND LUBRICANTS CHART in this Operator’s and Safety
Manual for oil specs. and capacity.
Dispose of used oil in authorized centres.
Oil level in the rear axles differential (4WD models) (fig. 3)
Checking
- To check the oil level unscrew the cap (b). The oil should be at the level of the
casing.
Draining
- To drain the oil, unscrew the plug (c) located on the lower part.
Topping up
- To fill or top up the rear axle with oil use opening (b) of the level.
- Fill with the specified oil through the opening of the plug (b). See the FLUIDS
AND LUBRICANTS CHART (references and capacities) in this Operator’s
manual for oil specs and capacity.
Dispose of used oil in authorized centres.

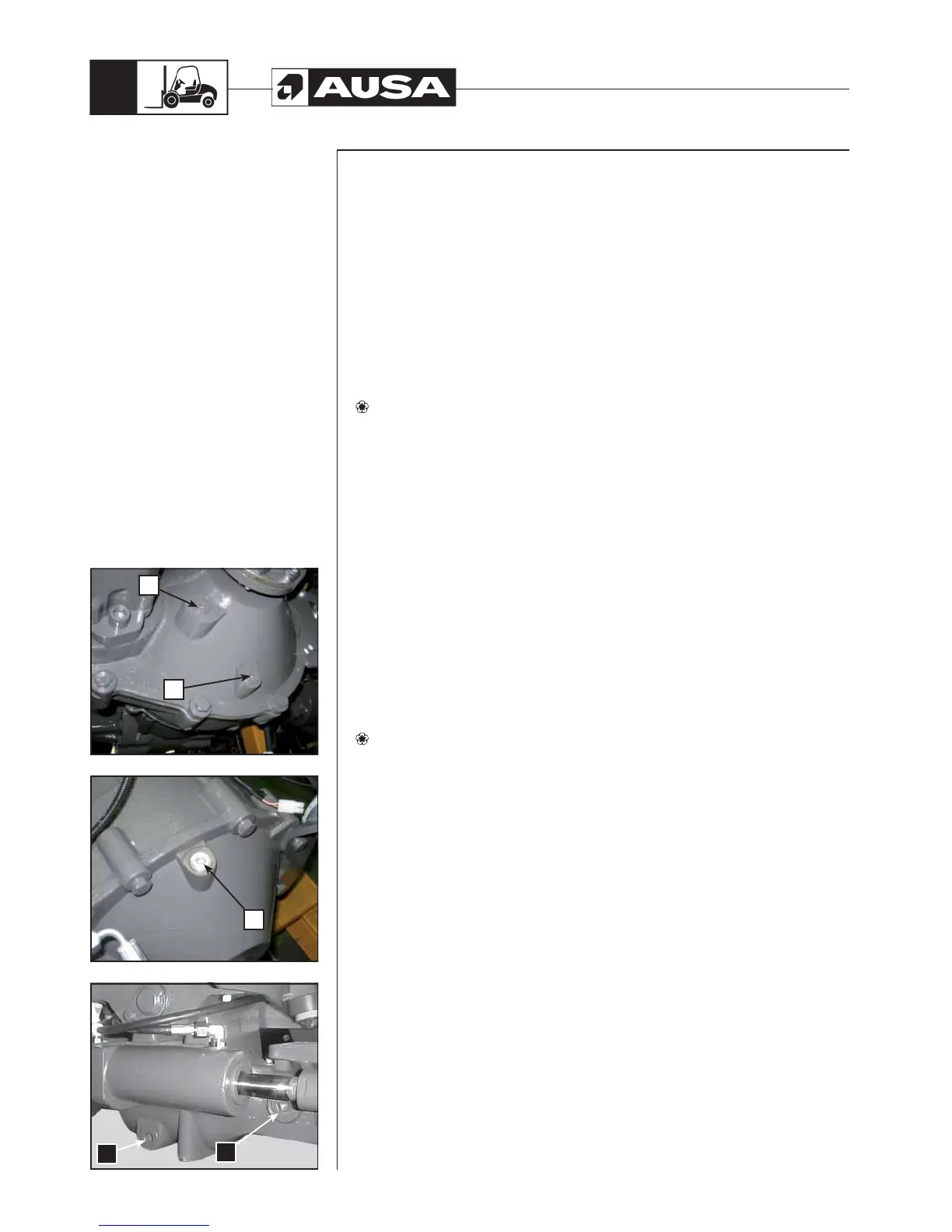

(fig. 1)(fig. 2)
b
c
a
(fig. 3)
e
d
Periodic
Maintenance
Operations
