AUSA C300H - Page 118

C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
116

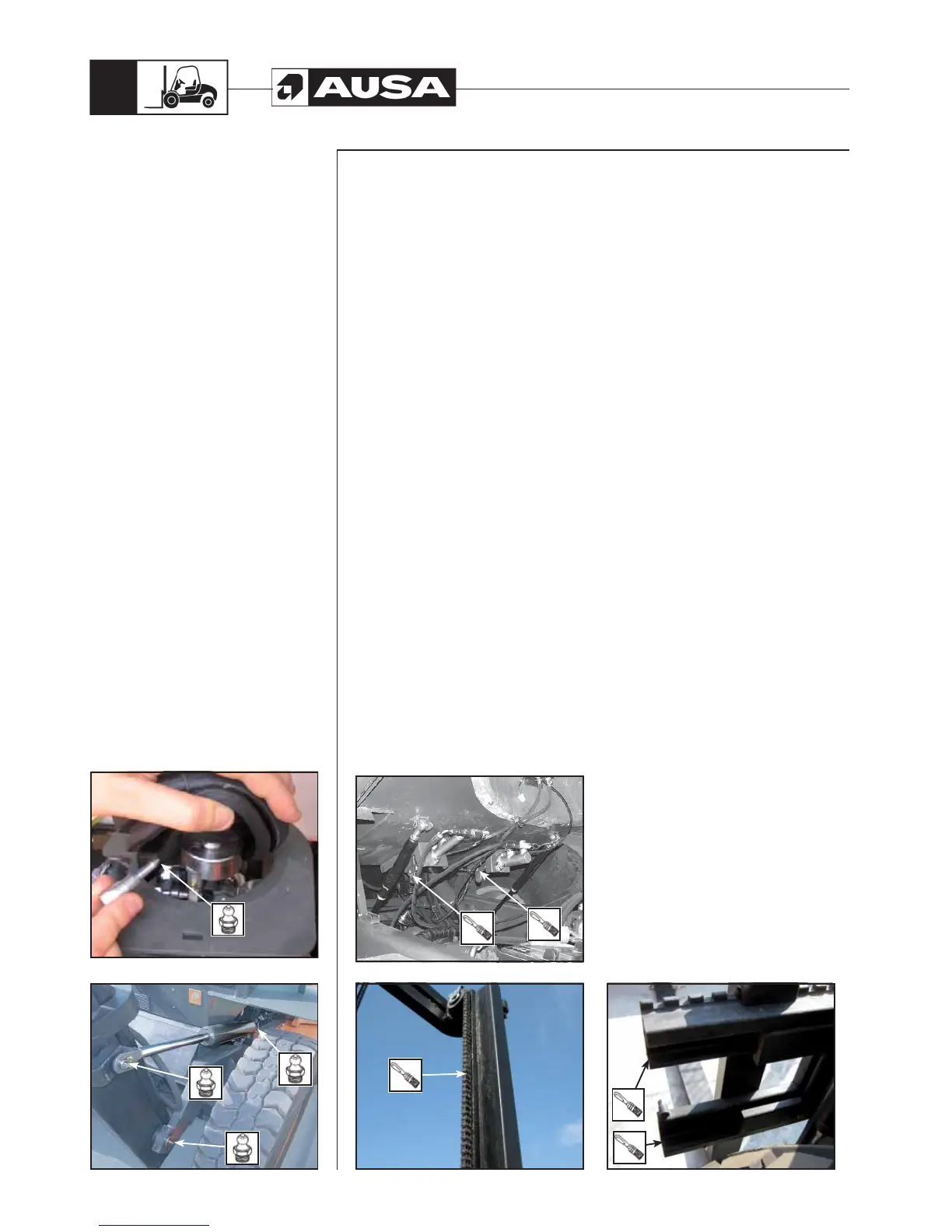

Control valve joints (fig. 1)
3 nipples, 1 on each joint.
Mast articulation supports (fig. 2)
2 nipples, one on each pin of the mast articulation.
Mast articulation tilting cylinder (fig. 2)
2 nipples, one on each support of the articulation.
Tilting cylinder articulation with the chassis (fig. 2)
2 nipples, one on each support.
Articulations of the controls (fig. 3)
Inching pedal.
Brake pedal.
Mast inner profiles (fig. 4)
Fork carriage side-shift (fig. 5)
(fig. 1)(fig. 2)
(fig. 3)(fig. 4)
(fig. 5)
Periodic
Maintenance
Operations
