C300H / C300HI / C300H x4 / C300HI x4
C350H / C350HI / C350H x4 / C350HI x4
117
 Lighting and signaling system ()

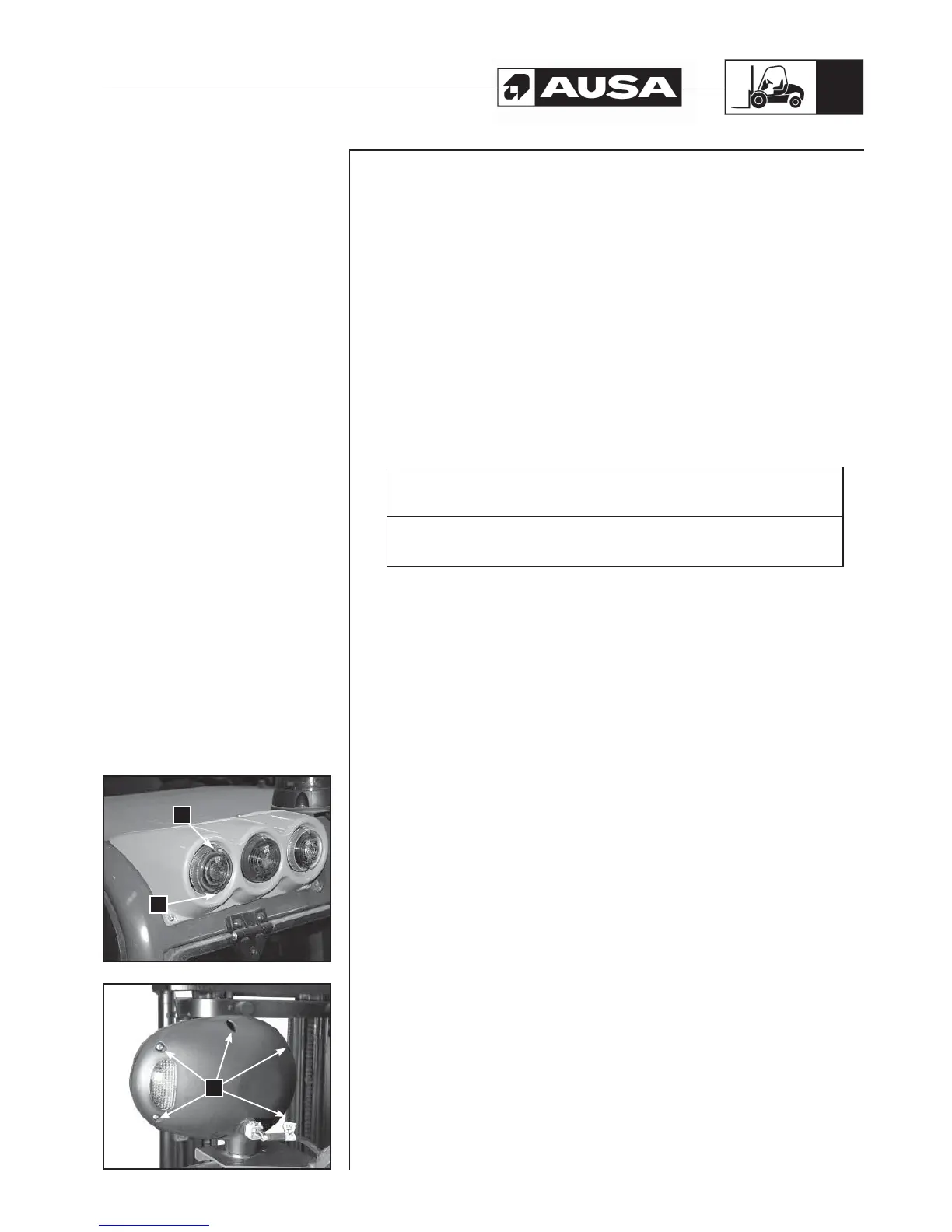

Indicator, parking, reverse, left and right side light bulbs: replacing (fig. 1).
- Undo bolts (a) and remove the lens.
- Remove the bulb by pressing it gently inwards and turning it to the left at the
same time in order to release it from the lamp holder.
- Replace the bulb with a new bulb of the same type and power.
Operating beacon bulbs: replacing (fig. 2).
- Undo bolts (b) and remove the rear housing of the operating beacon.
Operating beacon bulb:
- Remove the connector from the bulb.
- Undo the clip fastening the bulb by pressing it inwards and to the right at the
same time.
- Replace the bulb with a new bulb of the same type and power.
CAUTION
Do not touch the surface of the glass of the bulb. If it is dirty wipe gently using
a clean dry cloth.
- Secure the clip again by pressing it inwards and to the left at the same time.
Indicator bulb:
- Remove the connector from the bulb.
- Remove the bulb by pressing it gently inwards and turning it to the left at the
same time in order to release it from the lamp holder.
- Replace the bulb with a new bulb of the same type and power.
(fig. 1)
a
a
(fig. 2)
b
Periodic
Maintenance
Operations
