PARTS LIST (Cont'd)
31 Bowl Assembly SS/Black 03.6523.00 1
32 Hood Assembly 430 SS/Silver 03.6524.00 1
33 Hood Assembly 430 SS/Black 03.6524.01 1
34 Spring Pin, Hood Hinge 03.6525.00 2
35 Clevis Pin, Hood Hinge 03.6526.00 2
36 Side Table, Left Burner SS/Silver
03.6527.00
1
37 Side Table, Left Burner SS/Black
03.6527.01
1
38 Screw, M4x15mm (Side Table Front)
03.6528.00
4
39 Side Table, Right SS/Silver
03.6529.00
1
40 Side Table, Right SS/Black
03.6529.01
1
41 Valve, Side Burner 03.6530.00 1
42 Screw, M5x10mm (Side Burner Valve Bracket) 03.6531.00 2
43 Nut, M5 Hex 03.6532.00 2
44 Side Burner & Venturi 03.6533.00
1
45 Screw, M4x8mm (Side Burner & Door Handle) 03.6534.00 6
46 Electrode Wire, Side Burner 03.6535.00
1
47 Knob, Control (Main & Side Burners) 03.6401.00 5
48 Grid, Side Burner 03.6407.00 1
49 Main Burner, Cast Iron 03.6447.00 4
50 Burner Pin, Main Burner 03.5012.00 4
51 Pan, Foil Local Purchase 1
52 Pan, Grease 03.6402.00 1
53 Drip Tray 03.5998.00 1
54 Flame Diffuser SS
03.6536.00
4
55 Cooking Grid 03.5023.00 2
56 Warming Rack 03.6449.00 1
57 Ignition Box
03.6421.00
1
58 Shim, Ignition Box 03.6423.00 1
59 Regulator/Hose Assembly-(LP Only)
03.6537.00
1
60 Ignitor Switch 03.6426.00 1
61 Heat Indicator 03.5033.00 1
62 Electrode, Main Burner 03.6427.00 2
63 Manifold Assembly (LP) 03.6450.01 1
64 Left Door, Silver 03.6443.02 1
65 Right Door, Silver 03.6444.02 1
5
TOOLS REQUIRED:
To reduce the risk of a cut injury:
· Wear protective gloves when handling parts that have
sharp edges.
Phillips Screwdriver Pliers
Wrench
or

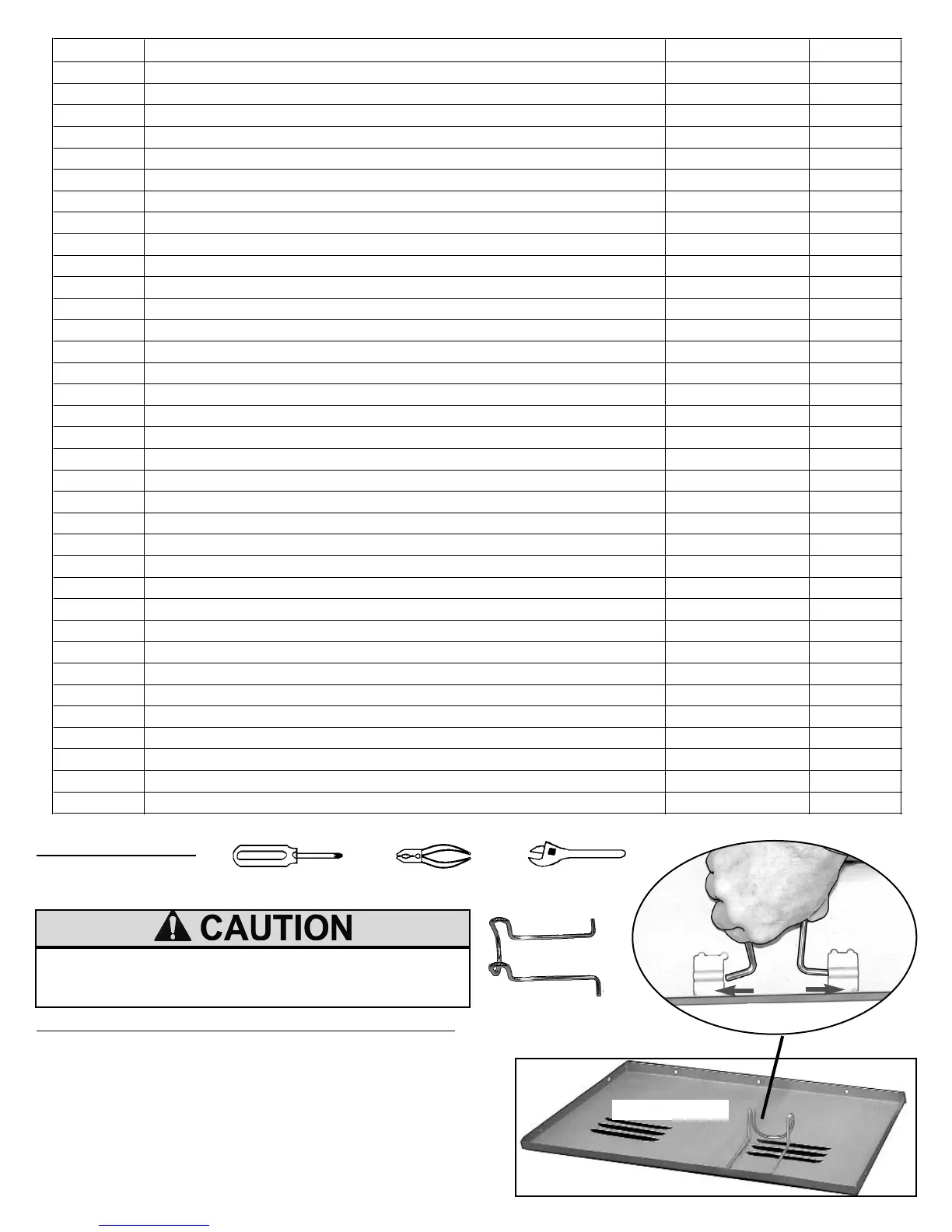

STEP 1) Cylinder Clamp/Back Panel Assembly:
Lay Back Panel (2/3) on floor. (FIG. 1A) Attach
LP Cylinder Clamp (4) to Back Panel by
squeezing clamp together to fit into the two
slotted openings; then release. (FIG. 1B) Make
sure the large loop is down against the panel.
(4) LP CYLINDER
CLAMP
(2/3) BACK PANEL
FIG. 1B
FIG. 1A
