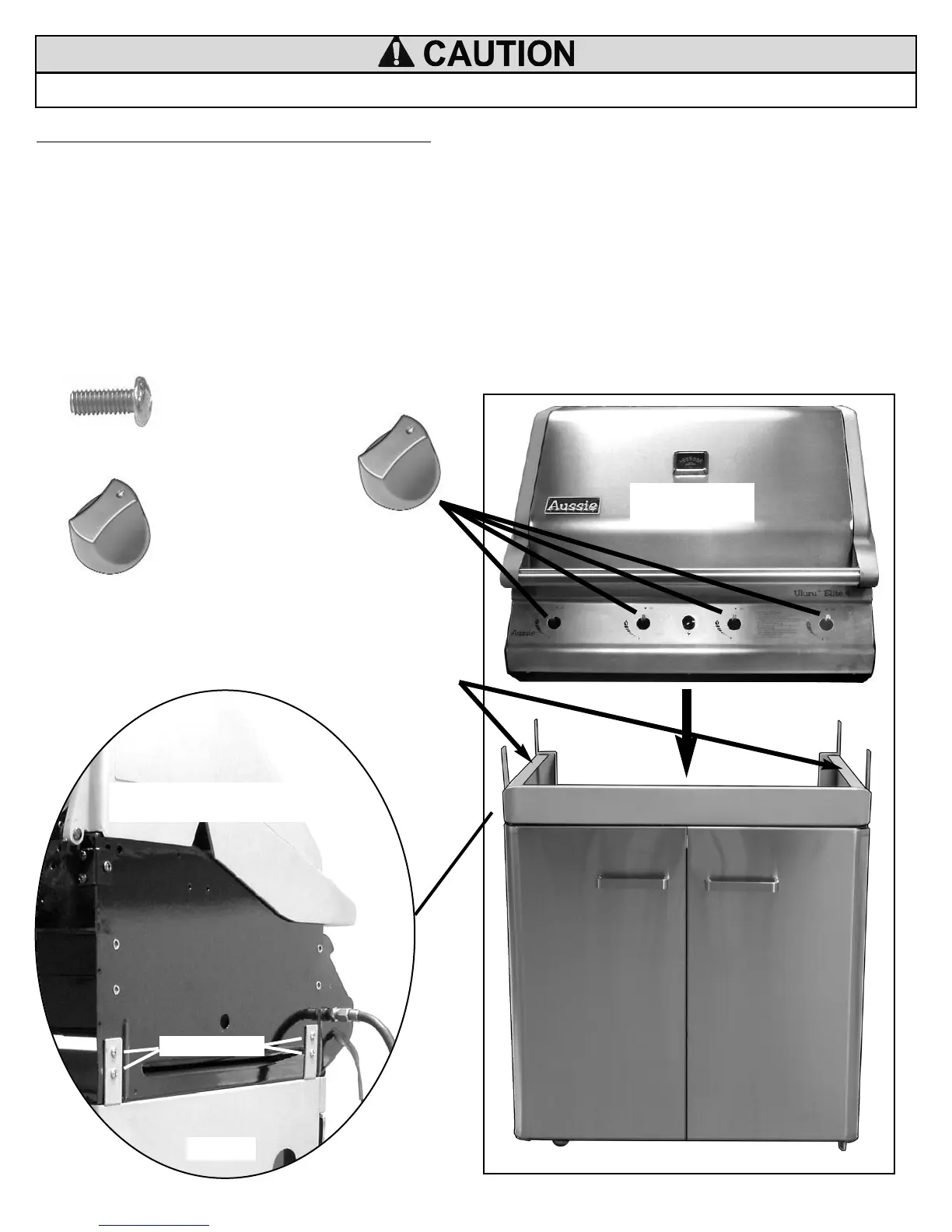

STEP 6) HOOD/BOWL TO CART ASSEMBLY:
Lift the Hood/Bowl Assembly (30) over the cart assembly and set it down until it rests on the
inside top flanges of the cart. (FIG. 6A)
Align the holes in the side of the Hood/Bowl with the holes in the cart brackets. Insert
eight M6x15 (7) Bolts through the holes and tighten after all are installed. (FIG. 6B)
Align the flat keyed hole in the Control Knob (47) with the keyed stem of the four Control valves.
(FIG. 6A) Push the Control Knobs onto the four Valve stems.
8
To reduce the risk of injury from lifting: The following assembly will require 2-people.
FIG. 6A
INSIDE FLANGE ON
TOP OF CART
(7) M6 x 15 BOLT
HOOD/BOWL ASSEMBLED TO CART
REAR SIDE VIEW
FIG. 6B
(7) M6 x 15 BOLT
(47) CONTROL KNOB
(30) HOOD/BOWL
ASSEMBLY
