4.3 Display panel
4.3.1 Control panel with LCD display
The panel of the AU series grid-connected PV inverter includes a LCD display. In order to better carry out
the interactive operation of the man-machine interface, two LED indicator and a voice switch are set on the
panel, as shown in Figure 4-2.

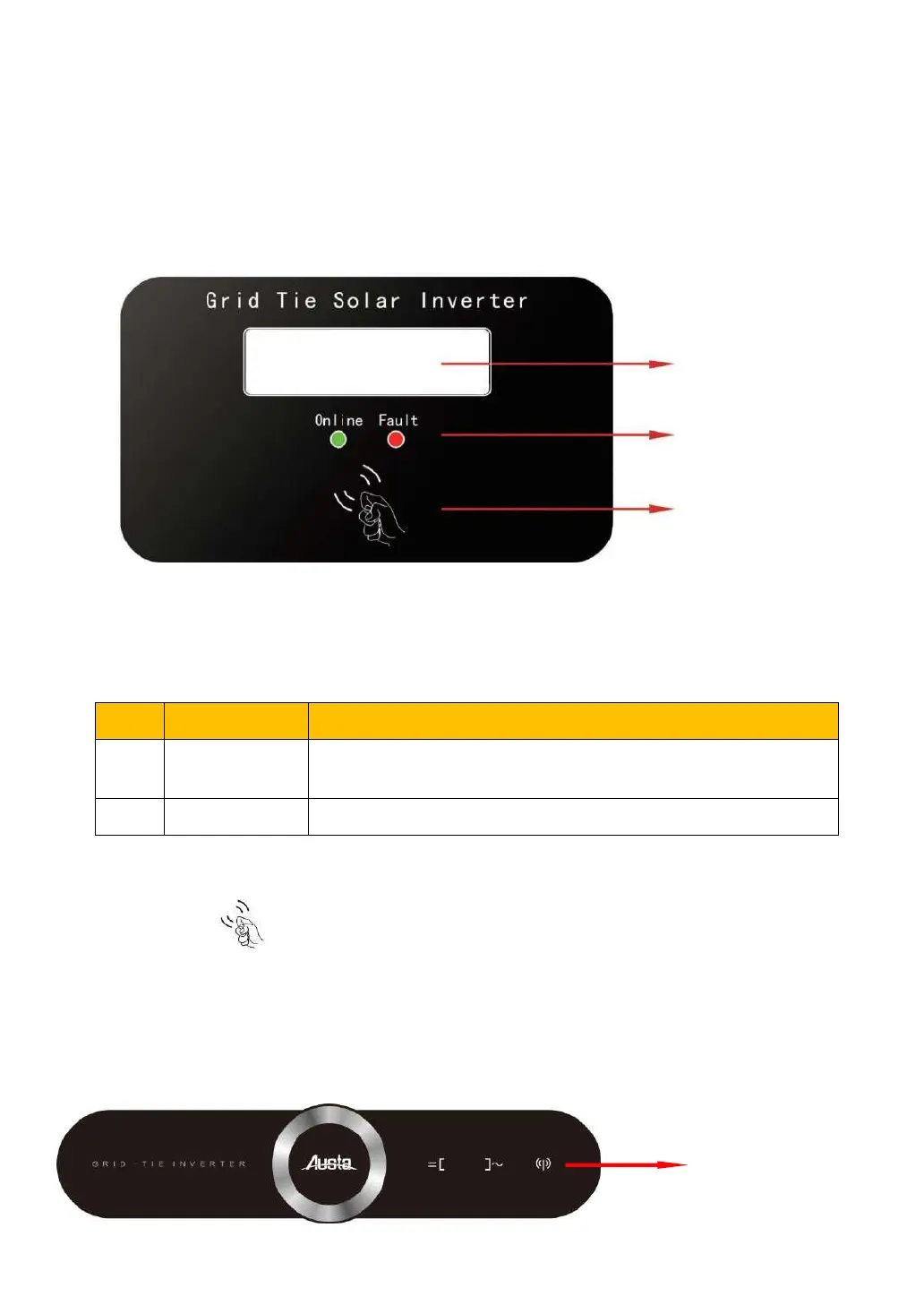

Fig 4-3 AU series LCD control panel
LED display status
No.
LED indicator
Description
1
Online
Grid-connected operation indicator (normal operation,
grid-connected power generation indicator is on)
2
Fault
Fault indicator (lights on when a fault occurs)
Table 4-1 LED display status and meaning
The use of voice switch
Tap the picture icon on the panel, the display interface of the LCD panel is switched
4.3.2 Control panel with indicator light only
For the indicator panel of the AU series grid-connected PV inverter, in order to better carry out the
interactive operation of the man-machine interface, 3 LED lights are set on the panel, as shown in Figure
4-3.
LCD panel
LED indicator
Voice switch
LED indicator
