3. Using the Code Reader

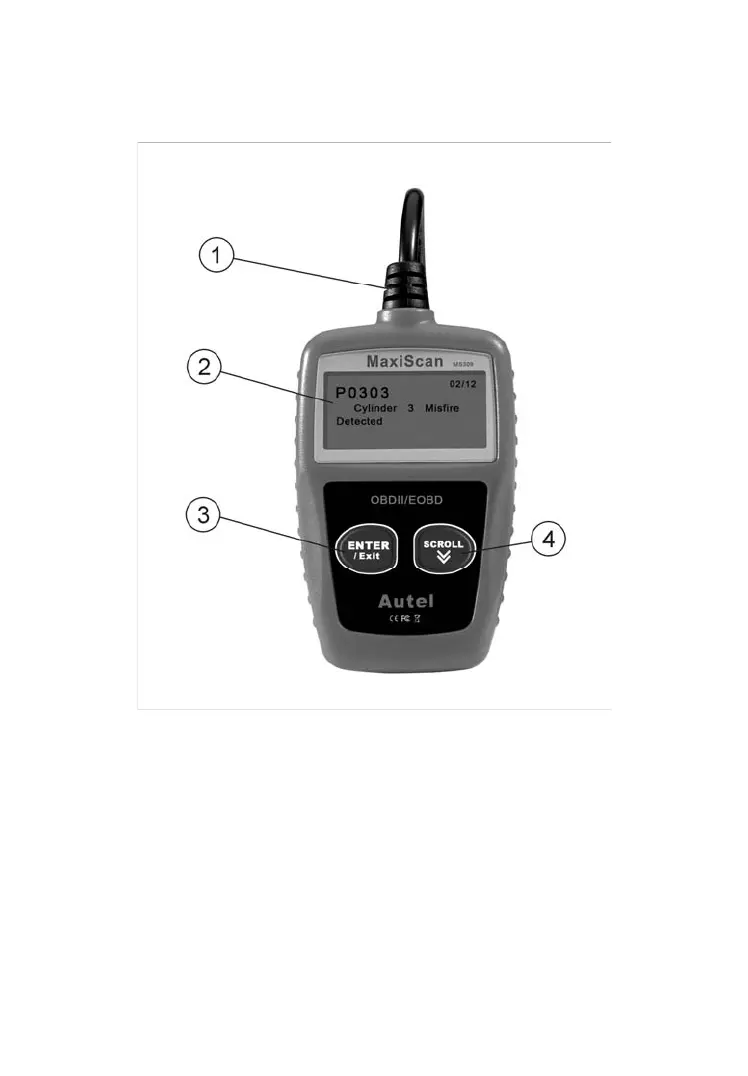

3.1 Tool Description
① OBD II CONNECTOR -- Connects the code reader to the
vehicle’s Data Link Connector (DLC).
② LCD DISPLAY -- Indicates test results.
③ ENTER/EXIT BUTTON -- Confirms a selection (or action)
from a menu list, or returns to previous menu.
④ SCROLL BUTTON -- Scrolls through menu items. It is also used
to enter system setup menu when pressed.
