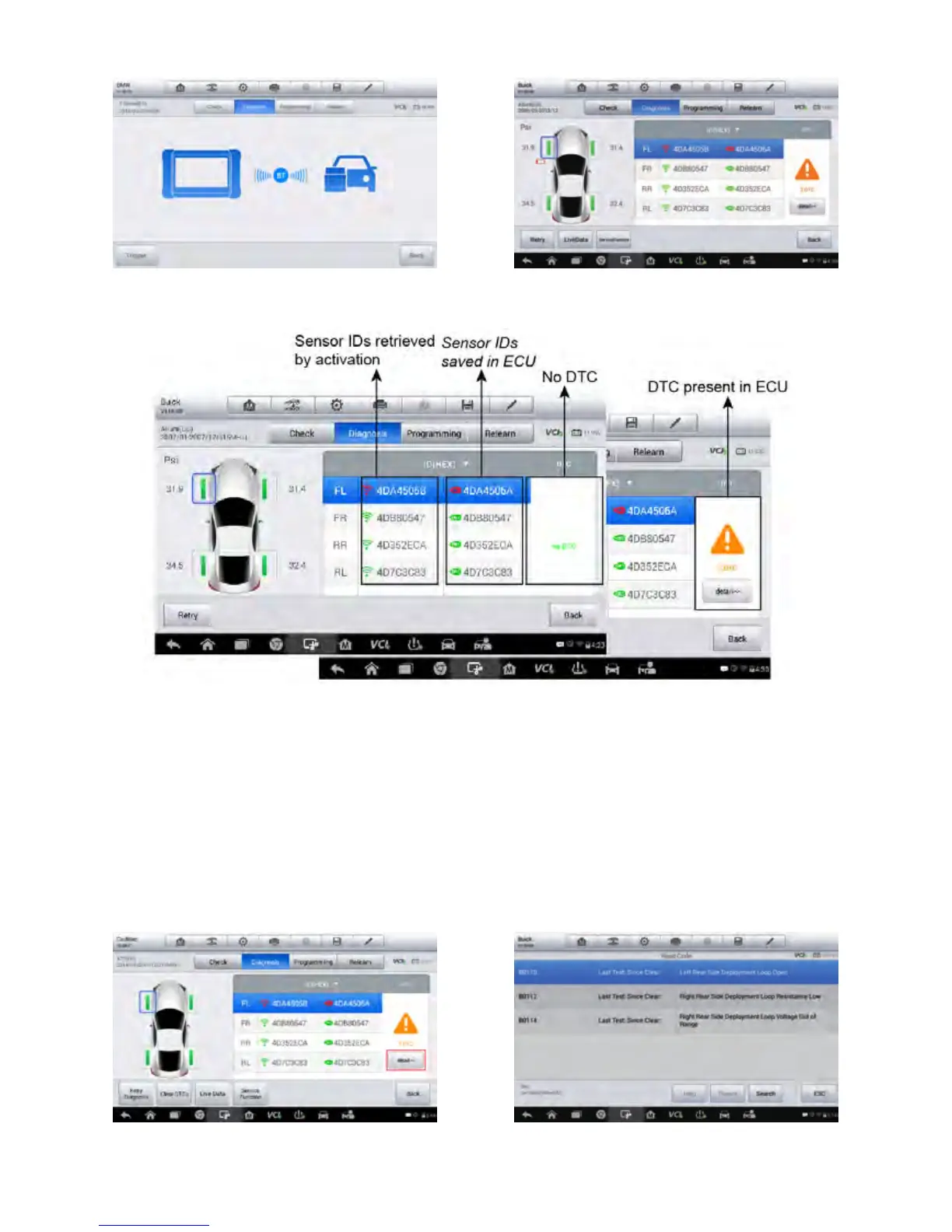

OBD Diagnose Result
1. If the marks before the IDs are red, it indicates that the ID retrieved by activation
is inconsistent with the ID saved in the ECU. If the IDs are the same, the
marks will become green.
2. If DTCs are detected from the TPMS ECU, a yellow hazard icon displays in the
DTC column and the details button is available. If no DTC is detected, a green
“No DTC” message will display on the DTC screen.
OBD Diagnosing
TPMS Status
Click details View DTCs Description
